Material:R103781620
Model:LSAO-B-16-DD

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth LINEAR-SET LSAO-B-16-DD (R103781620) is a high-quality linear motion set designed for applications requiring precise and smooth linear movement. This set includes an aluminum lightweight precision housing with a super linear bushing B, which lacks a self-alignment feature, ensuring stable and accurate operation. The shaft diameter is designed to accommodate specific application needs, and the inclusion of two external seals provides added protection against contaminants, enhancing the longevity of the system. The LINEAR-SET is characterized by its open design and is secured by a grooved taper pin, making installation and maintenance straightforward. The ability to relubricate the system contributes to its reliability and extended service life. It operates within a permissible ambient temperature range, making it suitable for various working environments. This model boasts a standard version that emphasizes reduced weight without compromising on rigidity or load capacity. The dynamic load capacity indicates how much weight the set can handle during motion, while the static load rating reflects its ability to sustain loads when stationary. Its breakaway force ensures minimal initial resistance when starting movement. The Bosch Rexroth LINEAR-SET is capable of achieving maximum accelerations and can handle speeds up to a specified limit; however, it should be noted that excessive speed may result in increased wear on plastic components. Tests have demonstrated impressive travel ranges without failure under proper conditions. Designed for long guides that require shaft support with high rigidity, this linear set's weight has been optimized for such applications. Its friction force characteristics are influenced by speed and lubrication conditions but are designed to minimize drag for efficient operation. Overall, this product offers a robust solution for those in need of reliable linear motion hardware with specific performance capabilities.

Linear set (aluminum), O-B-16, with two seals

Linear set (aluminum)
Open
With super LB B
Shaft diameter d = 16
With two seals
Version: Standard

Unpacked Weight: 0.178 kg

For long guides requiring shaft support and a high level of rigidity.

Lightweight precision housing (aluminum)
super linear bushing B without self-alignment feature
Secured by grooved taper pin
External seals
Relubricatable

Data Sheet	Download Data Sheet
2D CAD	Download 2D CAD
2D CAD	Download 2D CAD
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size V	5
Footnote shaft radial clearance h6	Clamped (fastened).
Series	Super B (no self-alignment feature)
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Size E1	40
Footnote dynamic load capacity C	The load capacities apply for the main direction of loading.
Size H	22
Max. acceleration amax	150
Permissible ambient temperature	-10 °C ... +80 °C
Outer diameter D	26
Size H3	10
Breakaway force	2
Size L3	11.5
Size H4	2.5
Maximum permissible linear speed vmax	3
Size D	26
Footnote static load capacity C0	The load capacities apply for the main direction of loading.
Size N1	21
Static load rating C0	830
Size M	26.5
Note: Maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10⁵ m to 100 • 10⁵ m without failure.
Friction force	1
Size A	53
Productgroup ID	17
Size N2	13
Size W	9
Size E3	42
Permissible ambient temperature (max)	+80
Size E2	26
Size E4	35
Angle α	68
Size SW	2.5
Permissible ambient temperature (min)	-10
Size S	5.3
Shaft diameter d	16
Linear guide type	Linear bushing and shaft
Filter for linear bushings and shafts	Linear sets with linear bushings
Format of linear bushings	O – Open
Dynamic load capacity C	1500
Size L	43
Size S2	4
Weight	0.178
Size D1 with tolerance
Size H1	35

General technical data

Ø d	mm	12	16	20	25	30	40	50
amax	m/s²	150
vmax 1)	m/s	3
m	kg	0.11	0.17	0.3	0.57	0.86	1.6	2.6
FR 2)	N	0.8	1	1.5	2	2.5	3	4
Breakaway force	N	1.5	2	3	4.5	6	8	10
Shaft radial clearance h6 3)	µm	+ 28 - 1		+ 31 - 2			+ 35 - 3
Operating conditions
Permissible ambient temperature (min ... max)		-10 °C ... +80 °C

1)	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.
2)	Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
3)	Clamped (fastened).

Load capacities and load moments

Ød	mm	12	16	20	25	30	40	50
C 1)	N	1060	1500	2570	5040	5020	8620	12500
C0 1)	N	510	830	1180	2470	2880	4480	6620

1)	The load ratings apply for the main direction of loading.
	The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26.

Legend

Symbol	Description	Unit
Ød	Shaft diameters	mm
amax	Maximum acceleration travel	m/s2
C	Dynamic load capacity	N
C0	Static load capacity	N
FR	Friction force	N
m	Mass	kg
vmax	Maximum permissible speed	m/s

For load in the direction of opening, please refer to the loading diagrams (see "Diagrams" section).

Impact of load direction on load rating of open Linear Bushings

The load ratings C and C0 apply for the main direction of loading ρ = 0°. For all other load directions, the load ratings must be multiplied by the factors fρ (dynamic load rating C) or fρ0 (static load rating C0).

Installing specific Linear Bushings can prevent reductions in load capacity (see Linear Set with side opening).

Reduced load capacity with short stroke

In case of short stroke, the service life of the shaft is less than that of the super Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .

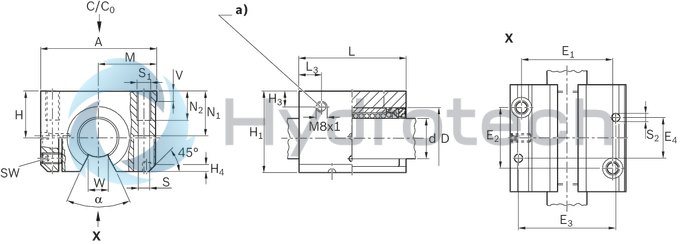

technical illustration-R103781620-Linear set (aluminum), O-B-16, with two seals

1)	fs = factor
2)	s = movement path

Definition of dynamic load ratings

a)	Lubricating hole sealed with plastic cap

Dimensions

Ød	mm	12	16	20	25	30	40	50
D	mm	22	26	32	40	47	62	75
α	°	66	68	55	57		56	54
A	mm	43	53	60	78	87	108	132
E1		32 mm ±0.15	40 mm ±0.15	45 mm ±0.15	60 mm ±0.15	68 mm ±0.15	86 mm ±0.15	108 mm ±0.2
E2		23 mm ±0.15	26 mm ±0.15	32 mm ±0.15	40 mm ±0.15	45 mm ±0.15	58 mm ±0.15	50 mm ±0.2
E3	mm	34	42	50	64	72	90	108
E4	mm	32	35	45	20	30	35	42
H	mm	18	22	25	30	35	45	50
Tolerance for H 1)	µm	+ 8 - 16
H1	mm	28	35	42	51	60	77	88
H3	mm	10				11.5	14	12.5
H4	mm	1.5	2.5	3.5	4	6
L	mm	39	43	54	67	79	91	113
L3	mm	10.5	11.5	13.5	15	16	18	22
M 1)		21.5 mm ±0.01	26.5 mm ±0.01	30 mm ±0.01	39 mm ±0.01	43.5 mm ±0.01	54 mm ±0.01	66 mm ±0.01
N1	mm	16.5	21	24	29	34	44	49
N2	mm	11	13	18	22		26	34
S 2)	mm	4.3	5.3	6.6	8.4		10.5	13.5
S1		M5	M6	M8	M10		M12	M16
S2 3)	mm	4		5	6		8	10
SW	mm	2.5			3		4	5
V	mm	5			6.5	8	10	12
W 4)	mm	6.5	9		11.5	14	19.5	22.5

1)	Clamped (fastened) in relation to Ø d.
2)	Fixing screws ISO 4762-8.8
3)	Pin hole centering.
4)	Minimum size in relation to Ø d.

Life expectancy calculation

Radial clearance

The radial clearance values shown in the table have been determined from statistics and correspond to values expected in practice. The adjustable Linear Sets come clamped to an h5 shaft (lower limit) and set to zero clearance.

Vertical dimension

The tolerance values for the vertical dimension "H" for the Linear Sets shown in the table have been determined from statistics and correspond to values expected in practice.
