BOSCH REXROTH
R103463020

$452.93 USD

BOSCH REXROTH
Material:R103463020
Model:LSATOE-A-30-DD

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth LINEAR-SET LSATOE-A-30-DD (R103463020) is a high-quality linear motion system designed for precision applications. This linear set features a lightweight precision tandem housing made from aluminum, which incorporates two super linear bushings A with a self-alignment feature, ensuring smooth and accurate motion. The set is open and adjustable, making it versatile for various uses. It comes equipped with external seals and a shaft diameter d, providing protection against contaminants while maintaining ease of maintenance through its relubricatable design. With the ability to withstand maximum acceleration (amax) and operate within a specified range of ambient temperatures, the LSATOE-A-30-DD ensures reliability in diverse working conditions. The outer diameter D and breakaway force are tailored to meet standard requirements, while the maximum permissible linear speed (vmax) can reach up to ms under specific conditions. However, users should note that higher speeds may limit service life due to increased wear on plastic components. The product's dynamic load capacity C indicates its ability to handle loads when both bushings are equally loaded in the main direction of loading. Similarly, the static load rating C provides information on the load capacity under static conditions. For precise adjustments, this linear set comes clamped to h shaft lower limit and is set to zero-clearance by default but can be adjusted for preloaded guides using an adjusting screw. Additional features include friction force specifications which are critical when considering movement without radial load and radial clearance settings that ensure optimal performance right out of the box. The LINEAR-SET LSATOE-A-30-DD also offers dynamic longitudinal moment load capacities ML for comprehensive understanding of its capabilities in various orientations. Weighing . kg, this robust yet lightweight component is ideal for those seeking a reliable linear motion solution in their machinery or equipment setups. Furthermore, it has been tested thoroughly with total travel ranging from 10^7 m to 10^8 m without failure, showcasing its durability and longevity in demanding applications.

Linear set (aluminum), TOE-A-30, with two seals

Linear set (aluminum)
Tandem, open, adjustable
With super LB A
Shaft diameter d = 30
With two seals
Version: Standard

Unpacked Weight: 1.642 kg

For zero-clearance or preloaded guides. Adjusting screw for adjusting radial clearance. These Linear Sets come set to zero clearance.

Lightweight precision tandem housing (aluminum)
Two super linear bushings A
Reference edge
External seals
Relubricatable
Also available as linear motion slide.

Data Sheet	Download Data Sheet
2D CAD	Download 2D CAD
2D CAD	Download 2D CAD
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size V	8
Size E5	52
Series	Super A (with self-alignment feature)
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Size B1 (linear bushing)	87
Footnote dynamic load capacity C	Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.
Size H	35
Max. acceleration amax	150
Permissible ambient temperature	-10 °C ... +80 °C
Outer diameter D	47
Size H3	16
Breakaway force	6
Size H4	6
Maximum permissible linear speed vmax	3
Size D	47
Footnote static load capacity C0	Load capacity when both linear bushings are under equal load. The load capacities apply for the main direction of loading.
Static load rating C0	5760
Size M	43.5
Note: Maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10⁵ m to 100 • 10⁵ m without failure.
Size N3	22
Friction force	2.5
Radial clearance	Comes clamped to h5 shaft (lower limit) and set to zero-clearance
Productgroup ID	17
Size N2	34
Size W	14
Size E3	106
Permissible ambient temperature (max)	+80
Dynamic longitudinal moment load capacity ML	163
Size E4	68
Angle α	57
Size SW	3
Permissible ambient temperature (min)	-10
Size S4	6
Shaft diameter d	30
Linear guide type	Linear bushing and shaft
Filter for linear bushings and shafts	Linear sets with linear bushings
Format of linear bushings	TOE – Tandem, open, adjustable
Dynamic load capacity C	8150
Static longitudinal moment load capacity ML0	116
Size L	152
Size E6	72
Size S2	8.4
Weight	1.642
Size D1 with tolerance

General technical data

Ø d	mm	12	16	20	25	30	40	50
amax	m/s²	150
vmax 1)	m/s	3
m	kg	0.22	0.34	0.62	1.17	1.68	3.15	5.5
FR 2)	N	0.8	1	1.5	2	2.5	3	4
Breakaway force	N	1.5	2	3	4.5	6	8	10
Radial clearance		Comes clamped to h5 shaft (lower limit) and set to zero clearance
Operating conditions
Permissible ambient temperature (min ... max)		-10 °C ... +80 °C

1)	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.
2)	Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Load capacities and load moments

Ød	mm	12	16	20	25	30	40	50
C 1)	N	1720	2430	4170	8180	8150	14000	20300
C0 1)	N	1020	1660	2360	4940	5760	8960	13240
ML	Nm	11	18	60	141	163	328	630
ML0	Nm	7	13	47	86	116	212	415

1)	Dynamic load rating when both Linear Bushings are under equal load. The dynamic load ratings apply for the main direction of loading.
	The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26.

Legend

Symbol	Description	Unit
Ød	Shaft diameters	mm
amax	Maximum acceleration travel	m/s2
C	Dynamic load capacity	N
C0	Static load capacity	N
FR	Friction force	N
m	Mass	kg
ML	Dynamic longitudinal moment load capacity	Nm
ML0	Static longitudinal moment load capacity	Nm
vmax	Maximum permissible speed	m/s

For load in the direction of opening, please refer to the loading diagrams (see "Diagrams" section).

Impact of load direction on load rating of open Linear Bushings

The load ratings C and C0 apply for the main direction of loading ρ = 0°. For all other load directions, the load ratings must be multiplied by the factors fρ (dynamic load rating C) or fρ0 (static load rating C0).

Installing specific Linear Bushings can prevent reductions in load capacity (see Linear Set with side opening).

Reduced load capacity with short stroke

In case of short stroke, the service life of the shaft is less than that of the super Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .

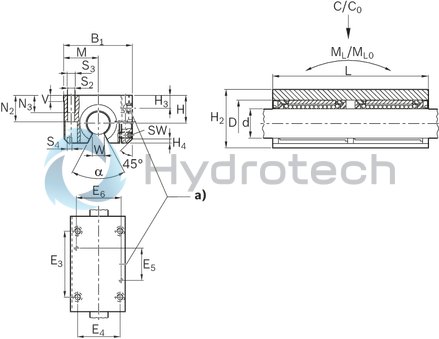

technical illustration-R103463020-Linear set (aluminum), TOE-A-30, with two seals

1)	fs = factor
2)	s = movement path

Reduced load capacity with high load

If the load F on a Super Linear Bushing A is more than F > 0.5 x C, the dynamic load rating C decreases.

Definition of dynamic load ratings

Self-alignment feature

The self-alignment feature in the steel bearing plates and machined ball guide grooves ensure quieter travel. The flow chart shows a comparison with a conventional Linear Bushing. The example is based on a load of 800 N and misalignment of about 8 ft (caused by shaft deflection).

Due to the self-alignment feature, two super Linear Bushings must be used on at least one of the shafts in the guide.

	FR = Frictional drag
	s = travel distance
	v = travel speed

a)	Super Linear Bushing, A Ød 20
b)	Conventional Linear Bushing, Ød 20

a)	Lubricating hole M8 x 1 sealed with plastic cap

Dimensions

Ød	mm	12	16	20	25	30	40	50
D	mm	22	26	32	40	47	62	75
α	°	66	68	55	57		56	54
B1	mm	43	53	60	78	87	108	132
E3		56 mm ±0.15	64 mm ±0.15	76 mm ±0.15	94 mm ±0.15	106 mm ±0.15	124 mm ±0.15	160 mm ±0.2
E4		32 mm ±0.15	40 mm ±0.15	45 mm ±0.15	60 mm ±0.15	68 mm ±0.15	86 mm ±0.15	108 mm ±0.2
E5	mm	24	28	32	42	52	60	80
E6	mm	34	42	50	64	72	90	108
H	mm	18	22	25	30	35	45	50
Tolerance for H 1)	µm	+ 8 - 16
H2	mm	28	35	42	51	60	77	88
H3	mm	10	12	13	15	16	20	10
H4	mm	1.5	2.5	3.5	4	6
L	mm	76	84	104	130	152	176	224
M 1)		21.5 mm ±0.01	26.5 mm ±0.01	30 mm ±0.01	39 mm ±0.01	43.5 mm ±0.01	54 mm ±0.01	66 mm ±0.01
N2	mm	16.5	21	24	29	34	44	49
N3	mm	11	13	18	22		26	35
S2 2)	mm	4.3	5.3	6.6	8.4		10.5	13.5
S3		M5	M6	M8	M10		M12	M16
S4 3)	mm	4		5	6		8	10
SW	mm	2.5			3		4	5
V	mm	5			6.5	8	10	12
W 4)	mm	6.5	9		11.5	14	19.5	22.5

1)	Clamped (fastened) in relation to Ø d.
2)	Fixing screws ISO 4762-8.8
3)	Pin hole centering.
4)	Minimum size in relation to Ø d.

Life expectancy calculation

Radial clearance

The radial clearance values shown in the table have been determined from statistics and correspond to values expected in practice. The adjustable Linear Sets come clamped to an h5 shaft (lower limit) and set to zero clearance.

Vertical dimension

The tolerance values for the vertical dimension "H" for the Linear Sets shown in the table have been determined from statistics and correspond to values expected in practice.
