BOSCH REXROTH
R102925044
$325.20 USD
- BOSCH REXROTH
- Material:R102925044
- Model:LSACT-50-DD-G
Quantity in stock: 0
The Bosch Rexroth LINEAR-SET LSACT-50-DD-G (R102925044) is a high-precision linear motion set designed for various applications requiring smooth and accurate linear movement. The set includes a lightweight precision housing made of aluminum, which encases two compact linear bushings in a tandem, closed format. These bushings are equipped with integrated wiper seals to protect against contaminants while maintaining the system's integrity and performance. With a shaft diameter of 50 mm, the LINEAR-SET LSACT-50-DD-G is pre-greased with Dynalub, ensuring long-lasting lubrication and reduced maintenance. It features normal radial clearance and is capable of handling dynamic load capacities efficiently, as specified by the series Compact design parameters. The system can withstand maximum accelerations and operate within a permissible ambient temperature range, making it suitable for diverse working environments. The outer diameter and breakaway force are tailored to size H specifications, while the static load capacity adheres to size N requirements. The friction force generated under no radial load conditions has been calculated for optimal performance. This linear set's dynamic load capacity C and static longitudinal moment load capacity ML are indicative of its robustness in sustaining loads during operation. Furthermore, it comes in different sizes denoted by E, H, L, and N each tailored to specific application needs regarding dimensions and capacities. Designed for ease of use and reliability, the Bosch Rexroth LINEAR-SET LSACT-50-DD-G offers a comprehensive solution for linear motion applications where precision and durability are essential. Whether used in automation systems or specialized machinery, this product delivers consistent performance that engineers and technicians can rely on.
Linear set (aluminum), CT-50, with two seals, greased
Linear set (aluminum)
With compact LB, tandem, closed
Shaft diameter d = 50
With two seals
Version: Standard
Greased
Unpacked Weight: 2.45 kg
| Lightweight precision housing (aluminum) |
| Two compact linear bushings |
| Integrated wiper seals |
| Normal radial clearance |
| Initial lubrication with Dynalub 510 |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Series | Compact |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Size E1 | 82 |
| Footnote dynamic load capacity C | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| Size H | 47 |
| Max. acceleration amax | 150 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Outer diameter D | 62 |
| Breakaway force | 10 |
| Size H4 | 30 |
| Maximum permissible linear speed vmax | 5 |
| Size D | 62 |
| Footnote static load capacity C0 | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| Size N1 | 46 |
| Static load rating C0 | 10700 |
| Friction force | 4 |
| Size A | 103 |
| Productgroup ID | 17 |
| Size N2 | 26 |
| Permissible ambient temperature (max) | |
| Size E2 | 100 |
| Permissible ambient temperature (min) | |
| Size S | 10.5 |
| Shaft diameter d | 50 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Linear sets with linear bushings |
| Format of linear bushings | – Closed |
| Dynamic load capacity C | 11660 |
| Static longitudinal moment load capacity ML0 | 271 |
| Size L | 145 |
| Weight | 2.45 |
| Size D1 with tolerance | |
| Size H1 | 92 |
General technical data
|
Ø d |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
amax |
m/s² |
150 | ||||||
|
vmax |
m/s |
5 | ||||||
|
m |
kg |
0.17 | 0.24 | 0.31 | 0.57 | 0.8 | 1.54 | 2.45 |
|
FR 1) |
N |
0.8 | 1 | 1.5 | 2 | 2.5 | 3 | 4 |
|
Breakaway force |
N |
1.5 | 2 | 3 | 4.5 | 6 | 8 | 10 |
|
Shaft radial clearance h6 |
µm |
+ 32 0 |
+ 33 - 1 |
+ 36 0 |
+ 42 - 1 |
|||
|
Operating conditions |
||||||||
|
Permissible ambient temperature (min ... max) |
-10 °C ... +80 °C | |||||||
| 1) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
Load capacities and load moments
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
C 1) |
N |
1310 | 1700 | 2290 | 4760 | 6250 | 10360 | 11660 |
|
C0 1) |
N |
980 | 1140 | 1800 | 3900 | 5580 | 9300 | 10700 |
|
ML0 |
Nm |
13 | 18 | 21 | 59 | 103 | 204 | 271 |
| 1) | The load ratings apply for the main direction of loading. If the load direction is not the main direction of loading, the load ratings must be multiplied by the following factors: Ø d 12 and 16: f = 0,90, f0 = 0.86, Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
amax |
Maximum acceleration travel |
m/s2 |
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
FR |
Friction force |
N |
|
m |
Mass |
kg |
|
ML0 |
Static longitudinal moment load capacity |
Nm |
|
vmax |
Maximum permissible speed |
m/s2 |
Effect of load direction on load rating
The listed load ratings should be chosen depending on installation in minimum or maximum position and should be based on the calculations. If the load direction is clearly defined and the Linear Bushings can be installed in maximum position, the load ratings Cmax. (dynamic load rating) and C0 max (static load rating) can be used. If aligned installation is not possible or the load direction is not defined, the minimum load ratings must be used.
Reduced load capacity with short stroke
In case of short stroke, the service life of the shafts is less than that of Linear Bushings. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
| 1) | fs = factor |
| 2) | s = stroke |
Definition of dynamic load ratings

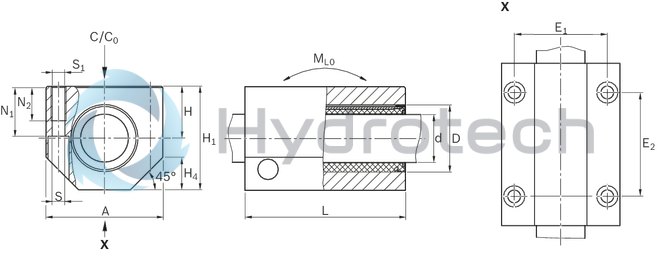

Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
D |
mm |
19 | 24 | 28 | 35 | 40 | 52 | 62 |
|
A |
mm |
40 | 45 | 53 | 62 | 67 | 87 | 103 |
|
E1 |
29 mm ±0.15 | 34 mm ±0.15 | 40 mm ±0.15 | 48 mm ±0.15 | 53 mm ±0.15 | 69 mm ±0.15 | 82 mm ±0.15 | |
|
E2 |
35 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.15 | 55 mm ±0.15 | 70 mm ±0.15 | 85 mm ±0.15 | 100 mm ±0.15 | |
|
H |
mm |
17 | 19 | 23 | 27 | 30 | 39 | 47 |
|
Tolerance for H 1) |
µm |
+ 24 0 |
+ 25 0 |
+ 26 0 |
+ 14 - 12 |
|||
|
H1 |
mm |
33 | 38 | 45 | 54 | 60 | 76 | 92 |
|
H4 |
mm |
11 | 13 | 15 | 17 | 19 | 24 | 30 |
|
L |
mm |
60 | 65 | 85 | 105 | 125 | 145 | |
|
N1 |
mm |
16 | 18 | 22 | 26 | 29 | 38 | 46 |
|
N2 |
mm |
11 | 13 | 18 | 22 | 26 | ||
|
S 2) |
mm |
4.3 | 5.3 | 6.6 | 8.4 | 10.5 | ||
|
S1 |
M5 | M6 | M8 | M10 | M12 | |||
| 1) | In relation to Ø d. |
| 2) | Fixing screws ISO 4762-8.8 |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
C/C0 |
Main direction of loading |
|
|
ML0 |
Static torsional moment laod capacity |
Nm |
Initial lubrication
Linear bushings come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Wiper seals for eLINE Linear Bushings and Compact Linear Bushings
Wiper seals for eLINE Linear Bushings and Compact Linear Bushings
Galvanized metal case Elastomer wiper sealCatalog
