BOSCH REXROTH
R102821244
$87.64 USD
- BOSCH REXROTH
- Material:R102821244
- Model:LSACE-12-DD-G
Quantity in stock: 4
The Bosch Rexroth LINEAR-SET LSACE-12-DD-G (R102821244) is a high-quality linear motion set designed to provide precise and smooth motion in various applications. This set includes an aluminum lightweight precision housing with an integrated compact linear bushing that is adjustable for optimized performance. The shaft diameter 'd' ensures compatibility with corresponding components, while the dual seals offer protection against contaminants, ensuring longevity and reliability. Equipped with initial lubrication using Dynalub, this linear set reduces maintenance needs and provides a low-friction movement right out of the box. The friction force FR is a consideration for users, as it indicates the frictional drags generated by the linear bushings when not under radial load, which can vary based on speed and lubrication conditions. The dynamic load capacity C highlights the robustness of the LSACE-12-DD-G under main loading directions, with adjustments provided for alternative loading orientations. This capacity ensures that the system can handle appropriate loads without compromising performance. Additionally, the static load capacity C also provides insight into the maximum stationary load that can be supported. The LINEAR-SET LSACE-12-DD-G has been designed for ease of use, coming clamped to an h shaft lower limit and pre-set to zero clearance to facilitate immediate installation and operation. The permissible ambient temperature range indicates its operational resilience under various environmental conditions. Overall, this product is part of Bosch Rexroth's commitment to providing advanced linear motion solutions. Its specific size and weight specifications cater to precise design requirements while maintaining Bosch Rexroth's standards for efficiency and durability in linear motion technology.
Linear set (aluminum), CE-12, with two seals, greased
Linear set (aluminum)
With compact LB, adjustable
Shaft diameter d = 12
With two seals
Version: Standard
Greased
Unpacked Weight: 0.0842 kg
| Lightweight precision housing (aluminum) |
| compact linear bushing |
| Integrated wiper seals |
| Set to zero clearance |
| Initial lubrication with Dynalub 510 |
| Data Sheet | Download Data Sheet |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Series | Compact |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Footnote dynamic load capacity C | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| Size H | 17 |
| Max. acceleration amax | 150 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Size E | 29 |
| Outer diameter D | 19 |
| Breakaway force | 1.5 |
| Size H4 | 11 |
| Maximum permissible linear speed vmax | 5 |
| Size D | 19 |
| Footnote static load capacity C0 | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| Size N1 | 16 |
| Static load rating C0 | 490 |
| Friction force | 0.8 |
| Size A | 40 |
| Radial clearance | Comes clamped to h5 shaft (lower limit) and set to zero-clearance |
| Productgroup ID | 17 |
| Size N2 | 11 |
| Permissible ambient temperature (max) | |
| Size SW | 2.5 |
| Permissible ambient temperature (min) | |
| Size S | 4.3 |
| Shaft diameter d | 12 |
| Linear guide type | Linear bushing and shaft |
| Format of linear bushings | E – Adjustable |
| Filter for linear bushings and shafts | Linear sets with linear bushings |
| Dynamic load capacity C | 810 |
| Size L | 28 |
| Weight | 0.0842 |
| Size D1 with tolerance | |
| Size H1 | 33 |
General technical data
|
Ø d |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
amax |
m/s² |
150 | ||||||
|
vmax |
m/s |
5 | ||||||
|
m |
kg |
0.08 | 0.11 | 0.15 | 0.27 | 0.4 | 0.75 | 1.2 |
|
FR 1) |
N |
0.8 | 1 | 1.5 | 2 | 2.5 | 3 | 4 |
|
Breakaway force |
N |
1.5 | 2 | 3 | 4.5 | 6 | 8 | 10 |
|
Radial clearance |
Comes clamped to h5 shaft (lower limit) and set to zero clearance | |||||||
|
Operating conditions |
||||||||
|
Permissible ambient temperature (min ... max) |
-10 °C ... +80 °C | |||||||
| 1) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
Load capacities and load moments
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
C 1) |
N |
810 | 1050 | 1410 | 2930 | 3850 | 6380 | 7180 |
|
C0 1) |
N |
490 | 570 | 900 | 1950 | 2790 | 4650 | 5350 |
| 1) | The load ratings apply for the main direction of loading. If the load direction is not the main direction of loading, the load ratings must be multiplied by the following factors: Ø d 12 and 16: f = 0,90, f0 = 0.86, Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
amax |
Maximum acceleration travel |
m/s2 |
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
FR |
Friction force |
N |
|
m |
Mass |
kg |
|
vmax |
Maximum permissible speed |
m/s |

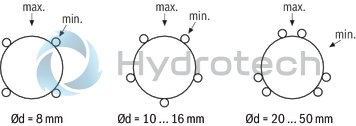

Effect of load direction on load rating
The listed load ratings should be chosen depending on installation in minimum or maximum position and should be based on the calculations. If the load direction is clearly defined and the Linear Bushings can be installed in maximum position, the load ratings Cmax. (dynamic load rating) and C0 max (static load rating) can be used. If aligned installation is not possible or the load direction is not defined, the minimum load ratings must be used.

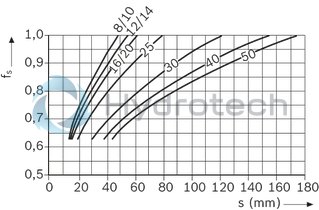

Reduced load capacity with short stroke
In case of short stroke, the service life of the shafts is less than that of Linear Bushings. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
| 1) | fs = factor |
| 2) | s = stroke |
Definition of dynamic load ratings

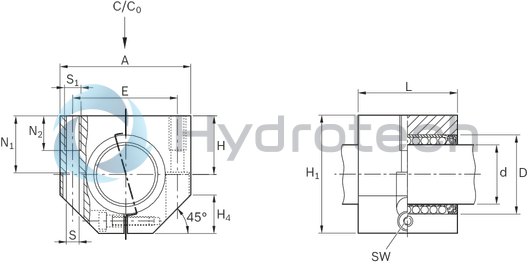

Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
D |
mm |
19 | 24 | 28 | 35 | 40 | 52 | 62 |
|
A |
mm |
40 | 45 | 53 | 62 | 67 | 87 | 103 |
|
E |
29 mm ±0.15 | 34 mm ±0.15 | 40 mm ±0.15 | 48 mm ±0.15 | 53 mm ±0.15 | 69 mm ±0.15 | 82 mm ±0.15 | |
|
H |
mm |
17 | 19 | 23 | 27 | 30 | 39 | 47 |
|
Tolerance for H 1) |
µm |
+ 12 - 12 |
+ 13 - 12 |
+ 14 - 12 |
||||
|
H1 |
mm |
33 | 38 | 45 | 54 | 60 | 76 | 92 |
|
H4 |
mm |
11 | 13 | 15 | 17 | 19 | 24 | 30 |
|
L |
mm |
28 | 30 | 40 | 50 | 60 | 70 | |
|
N1 |
mm |
16 | 18 | 22 | 26 | 29 | 38 | 46 |
|
N2 |
mm |
11 | 13 | 18 | 22 | 26 | ||
|
S 2) |
mm |
4.3 | 5.3 | 6.6 | 8.4 | 10.5 | ||
|
S1 |
M5 | M6 | M8 | M10 | M12 | |||
|
SW |
mm |
2.5 | 3 | 4 | 5 | 6 | ||
| 1) | In relation to Ø d. |
| 2) | Fixing screws ISO 4762-8.8 |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
C/C0 |
Main direction of loading |
Initial lubrication
Linear bushings come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Wiper seals for eLINE Linear Bushings and Compact Linear Bushings
Wiper seals for eLINE Linear Bushings and Compact Linear Bushings
Galvanized metal case Elastomer wiper sealCatalog
