BOSCH REXROTH
R082001251
$1.40 USD
- BOSCH REXROTH
- Material:R082001251
- Model:BN12X6N
Quantity in stock: 0
The Bosch Rexroth TOLERANCE RING (R082001251) is a precision-engineered component designed to ensure a fixed and secure connection between machine parts, particularly where there are differences in thermal expansion between elements made of different materials. The tolerance ring, which falls under the BN model code, features circumferential flat edges on its inner diameter that make it suitable for use with a unit bore system. This specific model has a nominal size of 12 mm in diameter (d) by 6 mm in width (b), crafted from corrosion-resistant stainless steel to offer high temperature stability—capable of withstanding continuous temperatures up to certain degrees Celsius and short-term exposure to even higher temperatures. The Bosch Rexroth tolerance ring is not only quick and economical to install but also eliminates the need for keyways or other positive-locking connections, simplifying the design of connecting parts. Its robust composition makes it resistant to various types of chemical stress, ensuring durability and longevity even in harsh environments. The product is noted for its large tolerance zone with connecting parts, accommodating considerable variations while maintaining a secure fit. Engineered for versatility, special sizes can be requested to match unique application requirements. The product's transferable torque capabilities are detailed in the technical notes provided by Bosch Rexroth, which should be consulted to understand the guideline values for free installation scenarios. It's important to note that significantly smaller permissible radial load values are allowed for pulsating and alternating loads; consultation is recommended for such conditions. Lastly, the TOLERANCE RING BN12X6N offers an extremely cost-effective solution as a machine element while maintaining high performance and reliability standards.
Tolerance ring (BN), size = 12 X 6, corrosion-resistant steel
Tolerance ring
Type BN: The circumferential flat edges lie on the inner diameter of the tolerance ring. For use with a unit bore system.
Tolerance ring diameter (d) = 12
Tolerance ring width (b) = 6
Stainless steel
Unpacked Weight: 0.00032 kg
The circumferential flat edges lie on the inner diameter of the tolerance ring. For use with a unit bore system.
| Quick, economic installation |
| Compensates the differences in thermal expansion between machine elements made of different materials |
| Eliminates the need for keyways or other positive-locking connections |
| Connecting parts have a simple design |
| High temperature stability |
| Special sizes available on request |
| Extremely low-cost machine element |
| Resistant to various types of chemical stress |
| Fixed and secure connection of machine parts |
| Large tolerance zone with connecting parts |
| Data Sheet | Download Data Sheet |
| Productgroup ID | 17 |
| Size b | 6 |
| Material footnote | Up to 250 °C continuous temperature, short-term up to 300°C |
| Size d | 12 |
| Transferable torque footnote 1 | Observe the general technical notes and information. |
| Transferable torque footnote 2 | In case of free installation with 20% reduction, see section “Calculations” for the guideline values |
| Permissible radial load footnote 2 | Considerably smaller values are permitted for pulsating and alternating loads. Please consult us. |
| Weight | 0.00032 |
| Transferable torque | 2 |
| Permissible radial load | 900 |
| Nominal size | 12 x 6 |
General technical data
|
Size |
F 1) 2) |
M 1) 3) |
m 4) |
|
N |
Nm |
kg |
|
| 5 x 5 | 250 | 0.2 | 0.09 |
| 5 x 6 | 300 | 0.25 | 0.13 |
| 5 x 8 | 400 | 0.35 | 0.14 |
| 6 x 6 | 0.4 | 0.15 | |
| 6 x 8 | 500 | 0.55 | 0.16 |
| 6 x 10 | 700 | 0.7 | 0.26 |
| 8 x 7 | 800 | 0.75 | 0.28 |
| 8 x 8 | 1000 | 0.9 | 0.33 |
| 8 x 10 | 1400 | 1.3 | 0.42 |
| 10 x 10 | 1800 | 3 | 0.5 |
| 10 x 12 | 2100 | 3.6 | 0.6 |
| 10 x 14 | 2500 | 4.2 | 0.7 |
| 11 x 10 | 2000 | 3.5 | 0.55 |
| 11 x 14 | 2800 | 5 | 0.7 |
| 12 x 6 | 900 | 2 | 0.4 |
| 12 x 8 | 1600 | 3 | 0.5 |
| 12 x 10 | 2300 | 3.5 | 0.6 |
| 12 x 12 | 2900 | 4.5 | 0.7 |
| 12 x 14 | 3600 | 5 | 0.85 |
| 12 x 18 | 5000 | 7 | 1.1 |
| 14 x 10 | 2500 | 5 | 0.75 |
| 14 x 14 | 4100 | 7 | 1 |
| 14 x 15 | 4500 | 7.5 | 1.2 |
| 14 x 20 | 5000 | 10 | 1.65 |
| 15 x 6 | 1100 | 3.5 | 0.5 |
| 15 x 8 | 2000 | 5 | 0.6 |
| 15 x 10 | 2800 | 6 | 0.75 |
| 15 x 12 | 3500 | 7 | 0.9 |
| 15 x 14 | 4300 | 8 | 1.05 |
| 1) | Observe the general technical notes and information. |
| 2) | Considerably smaller values are permitted for pulsating and alternating loads. Please consult us. |
| 3) | In case of free installation with 20% reduction, see section “Calculations” for the guideline values |
| 4) | Per 1000 pieces |
Legend
|
Symbol |
Description |
Unit |
|
F |
Permissible radial load |
N |
|
M |
Transferable torque |
Nm |
|
m |
Mass |
kg |

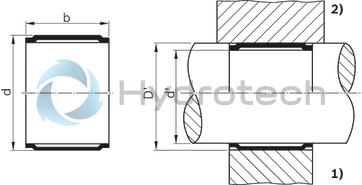

Tolerances for shafts and holes
Technical data
| 1) | Free installation |
| 2) | Centered installation |
Dimensions
|
Size |
Tolerance ring dimensions |
Connection dimensions 1) |
|||
|
Antifriction bearing installation |
Torque transmission |
||||
|
d |
b |
D' H9 |
d' |
d' |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
| 5 x 5 | 5 | 5 | 5 |
4.06 4.01 |
4.18 4.14 |
| 5 x 6 | 6 | ||||
| 5 x 8 | 8 | ||||
| 6 x 6 | 6 | 6 | 6 |
5.06 5.01 |
5.18 5.14 |
| 6 x 8 | 8 | ||||
| 6 x 10 | 10 | ||||
| 8 x 7 | 8 | 7 | 8 |
6.75 6.51 |
6.71 6.65 |
| 8 x 8 | 8 | ||||
| 8 x 10 | 10 | ||||
| 10 x 10 | 10 | 10 |
8.57 8.51 |
8.71 8.65 |
|
| 10 x 12 | 12 | ||||
| 10 x 14 | 14 | ||||
| 11 x 10 | 11 | 10 | 11 |
9.57 9.51 |
9.71 9.65 |
| 11 x 14 | 14 | ||||
| 12 x 6 | 12 | 6 | 12 |
10.59 10.52 |
10.77 10.7 |
| 12 x 8 | 8 | ||||
| 12 x 10 | 10 | ||||
| 12 x 12 | 12 | ||||
| 12 x 14 | 14 | ||||
| 12 x 18 | 18 | ||||
| 14 x 10 | 14 | 10 | 14 |
12.59 12.52 |
12.77 12.7 |
| 14 x 14 | 14 | ||||
| 14 x 15 | 15 | ||||
| 14 x 20 | 20 | ||||
| 15 x 6 | 15 | 6 | 15 |
13.59 13.52 |
13.77 13.7 |
| 15 x 8 | 8 | ||||
| 15 x 10 | 10 | ||||
| 15 x 12 | 12 | ||||
| 15 x 14 | 14 | ||||
| 1) | Observe the general technical notes and information. |
