BOSCH REXROTH
R072354085
$1,555.59 USD
- BOSCH REXROTH
- Material:R072354085
- Model:LSFDR2-40-WV-900
Quantity in stock: 0
The Bosch Rexroth LINEAR-SET LSFDR2-40-WV-900 (R072354085) is a high-quality linear motion set designed for precision applications. This product features a steel flanged sleeve and a compact, torque-resistant linear bushing that is equipped with ball guide grooves to facilitate smooth movement. It is specifically constructed to handle shaft diameters of 40mm, with the inclusion of a standard length shaft as per the table provided by Bosch Rexroth. The LINEAR-SET LSFDR2-40-WV-900 is notable for its ability to transmit torque effectively, thanks to its hardened steel bearing plates which are set to zero clearance ex works. This ensures precision alignment and minimizes play in the system. The set is designed without external seals, which simplifies its structure while still providing stability against cocking loads. For applications requiring additional stability, instructions for installing two Linear Sets are available in the installation section of the product documentation. This product can be used in environments with temperatures ranging from -10°C to +100°C and can handle a maximum acceleration (amax) and maximum permissible linear speed (vmax), details of which are specified by the manufacturer. The dynamic load capacity C and static load rating C0 indicate minimal values due to variable loading directions, ensuring robust performance under different conditions. Moreover, the LINEAR-SET LSFDR2-40-WV-900 has relubrication capabilities for maintenance ease and longevity of service life. The dynamic torsional moment load capacity (Mt) further underscores its suitability for demanding applications that require precise rotational force control. Weighing at .9 kg/m, this linear motion set strikes an optimal balance between strength and weight, making it suitable for various industrial uses where reliable linear guidance is necessary. The product belongs to a series designed for versatility across numerous applications without compromising on performance or quality.
Linear set (steel), DR2-40-WV-900, without seal
Linear set (steel)
Compact LB, flange
Ball guide grooves = 2
Shaft diameter d = 40
Shaft included
900 = standard length as per table
Without seal
Version: Standard
Unpacked Weight: 0.1 kg
| Steel flanged sleeve |
| Torque-resistant compact linear bushing |
| One ball guide groove for diameter shafts 12 and 16 mm |
| Two ball guide grooves for diameter shafts 20 mm and higher |
| Torque-transmitting, hardened steel bearing plates set to zero clearance ex works |
| External seals |
| Stability against cocking loads: For installing two Linear Sets, see section "Installation" |
| Relubricatable |
| Data Sheet | Download Data Sheet |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size L H11 | 92 |
| Size V | 7 |
| Series | Torque |
| Size D h6 | 80 |
| Footnote dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Max. acceleration amax | 150 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Size D1 with tolerance | 62 mm |
| Maximum permissible linear speed vmax | 3 |
| Mass m (kg/m) | 9.8 |
| Size D1 | 62 |
| Size D3 | 95 |
| Footnote static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Static load rating C0 | 4350 |
| Dynamic torsional moment load capacity Mt | 86 |
| Size D4 | 80 |
| Size L2 | 16 |
| Productgroup ID | 17 |
| Standard length l of the shaft footnote | R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm |
| Permissible ambient temperature (max) | |
| Permissible ambient temperature (min) | |
| Size S | 9 |
| Size L1 | 18 |
| Shaft diameter d | 40 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Linear sets with linear bushings |
| Format of linear bushings | F – Flange |
| Dynamic load capacity C | 6320 |
| Size D2 | 114 |
| Size B | 41.7 |
| Weight | 0.1 |
General technical data
|
Ø d |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
amax |
m/s² |
150 | ||||||
|
vmax |
m/s |
3 | ||||||
|
m |
kg |
0.25 | 0.3 | 0.7 | 1.1 | 1.75 | 2.5 | 4.85 |
|
m (shaft) |
kg/m |
0.89 | 1.57 | 2.45 | 3.8 | 5.5 | 9.8 | 15.3 |
|
Operating conditions |
||||||||
|
Permissible ambient temperature (min ... max) |
-10 °C ... +80 °C | |||||||
Load capacities and load moments
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
C 1) |
N |
640 | 780 | 1550 | 3030 | 3680 | 6320 | 9250 |
|
C0 1) |
N |
420 | 530 | 1050 | 2180 | 2790 | 4350 | 6470 |
|
Mt |
Nm |
2 | 3.3 | 12 | 24 | 37 | 86 | 167 |
| 1) | The load ratings indicated are minimal values as the load direction cannot always be clearly defined. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
amax |
Maximum acceleration travel |
m/s2 |
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
m |
Mass |
kg |
|
m (shaft) |
Weight (shaft) |
kg/m |
|
Mt |
Dynamic torsional moment load capacity |
Nm |
|
vmax |
Maximum permissible speed |
m/s |
Reduced load capacity with short stroke
In case of short stroke, the service life of the shaft is less than that of the torque-resistant Linear Bushing. The dynamic load ratings C in the tables must therefore be multiplied by the factor fs .
| 1) | fs = factor |
| 2) | s = movement path |
Service life, shaft straightness, stabilized installation
Definition of dynamic load ratings
| a) | D4 funnel-type lube nipple, similar to DIN 3405 |
| b) | Concentricity tolerance |

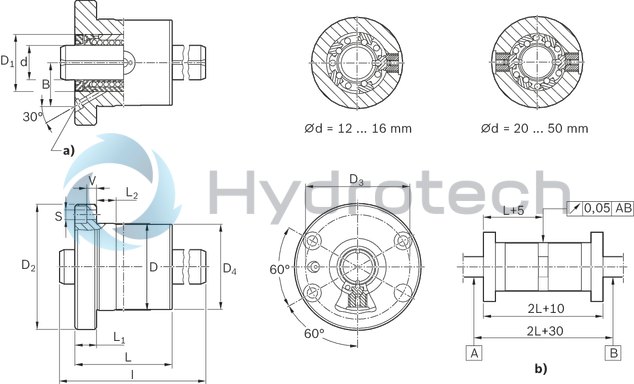

Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 | |
|
B |
mm |
17.4 | 20 | 24 | 29 | 33 | 41.7 | 50.5 | |
|
D |
h6 |
mm |
32 | 36 | 48 | 56 | 65 | 80 | 100 |
|
D1 |
mm |
22 | 26 | 32 | 40 | 47 | 62 | 75 | |
|
D2 |
mm |
50 | 54 | 70 | 82 | 98 | 114 | 140 | |
|
D3 |
mm |
40 | 44 | 58 | 68 | 80 | 95 | 118 | |
|
D4 |
mm |
32 | 36 | 48 | 56 | 65 | 80 | 100 | |
|
Tolerance for D4 |
µm |
- 100 - 300 |
|||||||
|
L |
h11 |
mm |
40 | 44 | 55 | 68 | 80 | 92 | 114 |
|
L1 |
10 mm -0.2 | 12 mm -0.2 | 14 mm -0.2 | 18 mm -0.2 | 22 mm -0.2 | ||||
|
L2 |
mm |
10 | 16 | ||||||
|
l 1) |
mm |
400 | 500 | 600 | |||||
|
S 2) |
mm |
4.5 | 5.5 | 6.6 | 9 | 11 | |||
|
V |
mm |
4.5 | 5 | 5.5 | 7 | 8.5 | |||
| 1) | R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm |
| 2) | Fixing screws ISO 4762-8.8 |
Initial lubrication
Torque-resistant Linear Bushings do not come with initial lubrication. Grease Linear Bushings before use, see "Initial lubrication" in the "Lubrication" section.
Service life data is based on initial lubrication and relubricated Linear Bushings.
Lubricating a Linear Set with a torque-resistant compact Linear Bushing: on-shaft via Ø = 3.9 lubricating hole until lubricant seeps out. Lubricating a tandem Linear Set: on-shaft via recirculating lubricating groove in middle of outer diameter until lubricant seeps out. Lubricating a flanged Linear Set: on-shaft via funnel-type lube nipple recessed on the end face until lubricant seeps out.
