Material:R072252087
Model:LSHDR2T-20-WV-1200

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth LINEAR-SET LSHDR2T-20-WV-1200 (R072252087) is a comprehensive linear motion set designed for precision and robustness in various applications. This linear set is crafted from steel and includes a compact LB sleeve version with tandem ball guide grooves, specifically engineered to provide smooth, accurate linear movement. The set comes with a standard length shaft of 20 mm diameter that is included in the package, ensuring compatibility and ease of installation. This model boasts two torque-resistant compact linear bushings and is suitable for use with one ball guide groove for diameter shafts up to 20 mm and two ball guide grooves for larger diameter shafts. It features a keyway for effective torque transmission, enhancing its performance in applications that require precise motion control. The hardened steel bearing plates are pre-set to zero clearance by the manufacturer, offering optimal stability against cocking loads and ensuring high precision throughout its operation. Additionally, the LINEAR-SET LSHDR2T-20-WV-1200 is designed without external seals, making it relubricatable which extends the product's life span by allowing maintenance to be performed as needed. This product operates efficiently within a permissible ambient temperature range from -10°C to +80°C and can handle maximum accelerations as well as high linear speeds without compromising its dynamic load capacity or static load rating. The unit's mass is 1.8 kg/m, contributing to its sturdy yet manageable design. With a size L specification and significant dynamic torsional moment load capacity (Mt), this linear guide type—which falls under the Linear bushing and shaft series—is ideal for various industrial applications where reliability and precision are paramount. The Bosch Rexroth LINEAR-SET LSHDR2T-20-WV-1200 is indeed an exceptional choice for those seeking top-tier motion control solutions.

Linear set (steel), DRT2-12-WV-1200, without seal

Linear set (steel)
Compact LB, sleeve version, tandem
Ball guide grooves = 2
Shaft diameter d = 12
Shaft included
1200 = standard length as per table
Without seal
Version: Standard

Unpacked Weight: 0.1 kg

Compact steel sleeve
Two torque-resistant compact linear bushings
One ball guide groove for diameter shafts 12 and 16 mm
Two ball guide grooves for diameter shafts 20 mm and higher
Keyway for torque transmission
Torque-transmitting, hardened steel bearing plates set to zero clearance ex works
Stability against cocking loads
External seals
Relubricatable

Data Sheet	Download Data Sheet
2D CAD	Download 2D CAD
2D CAD	Download 2D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size L H11	104
Size t	3
Series	Torque
Productgroup ID	17
Size D h6	48
Standard length l of the shaft footnote	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Footnote dynamic load capacity C	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Permissible ambient temperature (max)	+80
Max. acceleration amax	150
Permissible ambient temperature	-10 °C ... +80 °C
Size D1 with tolerance	32 mm
Permissible ambient temperature (min)	-10
Maximum permissible linear speed vmax	3
Mass m (kg/m)	2.45
Size D1	32
Footnote static load capacity C0	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Size L1	28
Static load rating C0	2100
Shaft diameter d	20
Dynamic torsional moment load capacity Mt	20
Linear guide type	Linear bushing and shaft
Filter for linear bushings and shafts	Linear sets with linear bushings
Format of linear bushings	H – Sleeve design
Dynamic load capacity C	2500
Size b P9	5
Weight	0.1

General technical data

Ø d	mm	12	16	20	25	30	40	50
amax	m/s²	150
vmax	m/s	3
m	kg	0.32	0.4	0.95	1.5	2.3	3.5	7.3
m (shaft)	kg/m	0.89	1.57	2.45	3.8	5.5	9.8	15.3
Operating conditions
Permissible ambient temperature (min ... max)		-10 °C ... +80 °C

Load capacities and load moments

Ød	mm	12	16	20	25	30	40	50
C 1)	N	1040	1260	2500	4900	6000	10200	15000
C0 1)	N	840	1060	2100	4360	5580	8700	12940
Mt	Nm	3.2	5.5	20	40	60	140	272

1)	Load rating when both Linear Bushings are under equal load. The load ratings indicated are minimal values as the load direction cannot always be clearly defined.
	The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26.

Legend

Symbol	Description	Unit
Ød	Shaft diameters	mm
amax	Maximum acceleration travel	m/s2
C	Dynamic load capacity	N
C0	Static load capacity	N
m	Mass	kg
m (shaft)	Weight (shaft)	kg/m
Mt	Dynamic torsional moment load capacity	Nm
vmax	Maximum permissible speed	m/s

Reduced load capacity with short stroke

In case of short stroke, the service life of the shaft is less than that of the torque-resistant Linear Bushing. The dynamic load ratings C in the tables must therefore be multiplied by the factor fs .

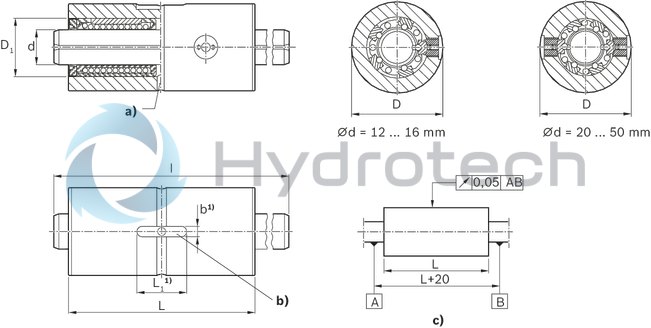

technical illustration-R072252087-Linear set (steel), DRT2-12-WV-1200, without seal

1)	fs = factor
2)	s = movement path

Service life, shaft straightness, stabilized installation

Definition of dynamic load ratings

a)	Ø 3.9 lubricating hole
b)	Depth t. For washer key A... DIN 6885
c)	Concentricity tolerance

Dimensions

Ød		mm	12	16	20	25	30	40	50
b	P9	mm	5			6		8
D	h6	mm	32	36	48	56	65	80	100
D1		mm	22	26	32	40	47	62	75
L	h11	mm	76	84	104	130	152	176	224
L1		mm	20	22	28	36	40	45	63
l 1)		mm	400		500		600
t		mm	3			3.5		4

1)	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm

Life expectancy calculation

Installation

The Linear Sets come preassembled and set to zero clearance. When pulling out the shaft, the adjusting screws must be loosened and the torque-resistant Linear Bushing reset.

General mounting instructions

Installation Linear sets with torque-resistant compact linear bushings

Initial lubrication

Torque-resistant Linear Bushings do not come with initial lubrication. Grease Linear Bushings before use, see "Initial lubrication" in the "Lubrication" section.

Service life data is based on initial lubrication and relubricated Linear Bushings.

Lubricating a Linear Set with a torque-resistant compact Linear Bushing: on-shaft via Ø = 3.9 lubricating hole until lubricant seeps out. Lubricating a tandem Linear Set: on-shaft via recirculating lubricating groove in middle of outer diameter until lubricant seeps out. Lubricating a flanged Linear Set: on-shaft via funnel-type lube nipple recessed on the end face until lubricant seeps out.
