BOSCH REXROTH
R067104000
$186.40 USD
- BOSCH REXROTH
- Material:R067104000
- Model:KBA-O-40
Quantity in stock: 0
The Bosch Rexroth SUPER LINEAR BUSH (R067104000) is a high-quality open linear bushing designed for precision linear movements. This Super LB A model features an open design without seals, enhancing its ease of use in various applications. It is specifically engineered to accommodate shaft diameters and provides a low-cost solution for high requirements due to its steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers that ensure smooth travel and a long service life. The bushing's self-alignment feature allows it to compensate for shaft deflection and misalignment, making it ideal for use on fully supported shafts where other linear guides may warp due to imprecise substructures. Its high travel speed capability reaches up to 5 meters per second, and despite not requiring initial lubrication, the product includes options for integrated wiper seals or external seals. Constructed with a ball retainer and outer sleeve made of PA or POM, along with balls crafted from rolling bearing steel, the SUPER LINEAR BUSH maintains robust performance with multiple rows of balls. It has been tested extensively, demonstrating a total travel range from 10^4 m to 10^5 m without failure. The dynamic load capacity C indicates the main direction of loading capacity while the static load rating C0 provides information on stationary loads. This product can operate within an ambient temperature range of -30°C to +80°C. The friction force and coefficient are optimized for efficient operation; however, they can vary depending on load conditions. With a weight of 0.2 kg and various radial clearances available for different shaft-bore configurations, this Bosch Rexroth linear bushing is versatile for numerous applications where precise linear motion is required. Productgroup ID: O - Open format ensures easy accessibility during installation or maintenance procedures.
Super LB A, open, 40, without seal
Super linear bushing
Super A (with self-alignment feature)
Open
Shaft diameter d = 40
Without seal
Unpacked Weight: 0.329 kg
| Low-cost linear bushing for high requirements |
| Steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life |
| Compensates for shaft deflection and misalignment up to 30' |
| Open linear bushing on fully supported shafts for applications where other linear guides tend to warp due to imprecise substructures. |
| High travel speed (5 m/s) |
| With longitudinal seal |
| No initial lubrication |
| Integrated wiper seals, external seals or no wiper seals |
| Ball retainer and outer sleeve made of PA or POM |
| Balls made of rolling bearing steel |
| Data Sheet | Download Data Sheet |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Rows of balls | 5 |
| Series | Super A (with self-alignment feature) |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Size C1 H13 | 60.3 |
| Footnote dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Max. acceleration amax | 150 |
| Footnote friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Size E | 19.5 |
| Outer diameter D | 62 |
| Breakaway force | 8 |
| Maximum permissible linear speed vmax | 3 |
| Size D | 62 |
| Friction coefficient μ | 0,001 ... 0,0025 |
| Footnote static load capacity C0 | The load capacities apply for the main direction of loading. |
| Static load rating C0 | 4480 |
| Size C h13 | 80 |
| Size C2 | 2.15 |
| Friction coefficient μ max. | 0.0025 |
| Note: Maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. |
| Friction force | 3 |
| Friction coefficient μ min. | 0.001 |
| Productgroup ID | 17 |
| Permissible ambient temperature (max) | |
| Angle α | 56 |
| Permissible ambient temperature (min) | |
| Friction force FR footnote 2 | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Shaft diameter d | 40 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Linear bushings |
| Format of linear bushings | O – Open |
| Dynamic load capacity C | 8620 |
| Weight | 0.329 |
| Size D1 with tolerance | |
| Radial clearance shaft h6/bore K7 | |
| Radial clearance shaft/bore h6/H7 | |
| Radial clearance shaft h6/bore M7 |
General technical data
|
Ø d |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 | |||||||
|
amax |
m/s² |
150 | |||||||||||||
|
vmax 1) |
m/s |
3 | |||||||||||||
|
m |
kg |
0.018 | 0.022 | 0.051 | 0.102 | 0.155 | 0.3 | 0.48 | |||||||
|
FR 2) 3) |
N |
0.8 | 3 4) | 1 | 4 4) | 1.5 | 5 4) | 2 | 6 4) | 2.5 | 8 4) | 3 | 10 4) | 4 | 12 4) |
|
Breakaway force 2) |
N |
1.5 | 6 4) | 2 | 9 4) | 3 | 10 4) | 4.5 | 14 4) | 6 | 18 4) | 8 | 24 4) | 10 | 30 4) |
|
μ 5) |
0.001 ... 0.0025 | ||||||||||||||
|
Rows of balls |
4 | 5 | |||||||||||||
|
Shaft radial clearance h6/bore H7 |
µm |
+ 38 + 10 |
+ 43 + 11 |
+ 50 + 12 |
|||||||||||
|
Shaft radial clearance h6/bore K7 |
µm |
+ 23 - 5 |
+ 25 - 7 |
+ 29 - 9 |
|||||||||||
|
Shaft radial clearance h6/bore M7 |
µm |
+ 17 - 11 |
+ 18 - 14 |
+ 20 - 18 |
|||||||||||
|
Operating conditions |
|||||||||||||||
|
Permissible ambient temperature (min ... max) |
-10 °C ... +80 °C | ||||||||||||||
| 1) | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. |
| 2) | One wiper seal: Multiply by a factor of 0.5. |
| 3) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| 4) | For fully sealed Linear Bushings |
| 5) | Friction coefficients of unsealed Linear Bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
Load capacities and load moments
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
C 1) |
N |
1060 | 1500 | 2570 | 5040 | 5020 | 8620 | 12500 |
|
C0 1) |
N |
510 | 830 | 1180 | 2470 | 2880 | 4480 | 6620 |
| 1) | The load ratings apply for the main direction of loading. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
amax |
Maximum acceleration travel |
m/s2 |
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
FR |
Friction force |
N |
|
m |
Mass |
kg |
|
vmax |
Maximum permissible speed |
m/s |
|
μ |
Friction coefficient |
For load in the direction of opening, please refer to the loading diagrams (see "Diagrams" section).
Impact of load direction on load rating of open Linear Bushings
The load ratings C and C0 apply for the main direction of loading ρ = 0°. For all other load directions, the load ratings must be multiplied by the factors fρ (dynamic load rating C) or fρ0 (static load rating C0).
Installing specific Linear Bushings can prevent reductions in load capacity (see Linear Set with side opening).
Reduced load capacity with short stroke
In case of short stroke, the service life of the shaft is less than that of the super Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
Reduced load capacity with high load
If the load F on a Super Linear Bushing A is more than F > 0.5 x C, the dynamic load rating C decreases.
Definition of dynamic load ratings
Self-alignment feature
The self-alignment feature in the steel bearing plates and machined ball guide grooves ensure quieter travel. The flow chart shows a comparison with a conventional Linear Bushing. The example is based on a load of 800 N and misalignment of about 8 ft (caused by shaft deflection).
Due to the self-alignment feature, two super Linear Bushings must be used on at least one of the shafts in the guide.
| FR = Frictional drag | |
| s = travel distance | |
| v = travel speed | |
| a) | Super Linear Bushing, A Ød 20 |
| b) | Conventional Linear Bushing, Ød 20 |
Sealing
Super linear bushings come both with integrated and separate wiper seals. The separate wiper seals are specially designed for applications in high contamination environments. An additional seal (for example, bellows, extendable cover) is necessary for extremely high contamination environments. The open super linear bushings can also come fully sealed (with longitudinal seal), however this increases friction.

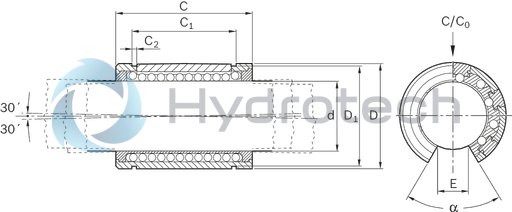

Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 | |
|
D |
mm |
22 | 26 | 32 | 40 | 47 | 62 | 75 | |
|
α |
° |
66 | 68 | 55 | 57 | 56 | 54 | ||
|
C |
h13 |
mm |
32 | 36 | 45 | 58 | 68 | 80 | 100 |
|
C1 |
H13 |
mm |
22.6 | 24.6 | 31.2 | 43.7 | 51.7 | 60.3 | 77.3 |
|
C2 |
mm |
1.3 | 1.6 | 1.85 | 2.15 | 2.65 | |||
|
E 1) |
mm |
6.5 | 9 | 11.5 | 14 | 19.5 | 22.5 | ||
| 1) | Minimum size in relation to Ø d. |
Radial clearance
The radial clearance values shown in the table have been determined from statistics and correspond to values expected in practice.
Adjusting radial clearance
The radial clearance of all Linear Bushings can be adjusted. If, for instance, a zero-clearance guideway is needed, the radial clearance of the Linear Bushing must be reduced using the adjusting screw on the housing (see also Linear Sets) until slight resistance occurs when rotating the shaft. Secure the adjusting screw for applications where vibrations are present.
Adjusting preload
For preloading, the aforementioned adjustment is made using an adjustment shaft that is weaker by the degree of preload.
Customer-built housings
General mounting instructions
Initial lubrication
Linear bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
