BOSCH REXROTH
R037550010

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

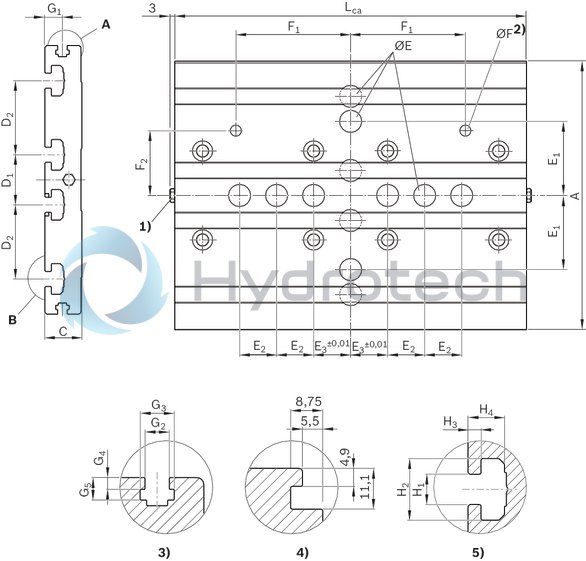

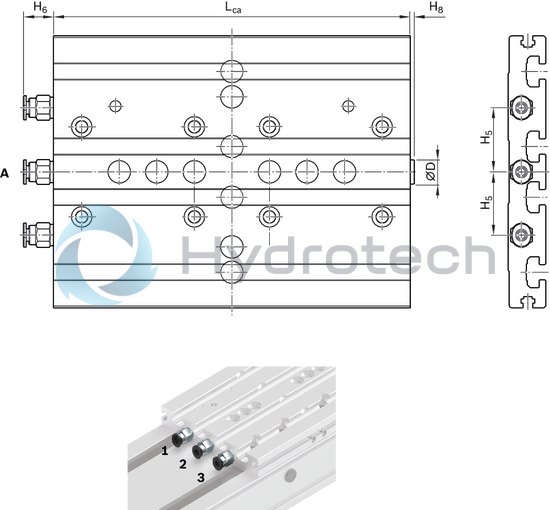

The Bosch Rexroth CONNECTING PLATE CKK 20-145 L (R037550010) is a critical component designed for seamless integration with CKK linear axes systems. This mechanical accessory falls under the product group ID for connection plates Size E, tailored to enhance the functionality and stability of linear motion applications. The connecting plate allows for the convenient fastening of attachments using sliding blocks, thereby expanding the versatility of the linear axis in various configurations. This model is specifically engineered to facilitate the lubrication process of both the ball rail system and the ball screw assembly directly through the connection plate, ensuring smooth operation and longevity of the system components. With its robust construction and precision design, it is suited to meet rigorous industrial demands. The nominal size and dimensions, such as Size A, Size E, Size H, and Size D, are meticulously crafted to ensure a perfect fit with compatible carriages. The weight specification also aligns with these dimensions to maintain balance and precision in motion. Included in the assembly kit are not only the connection plate itself but also all necessary mounting accessories required for secure attachment to carriages. This ensures that users have all essential components for a straightforward installation process. Overall, this Bosch Rexroth connecting plate is an indispensable accessory that provides a reliable solution for enhancing linear motion assemblies. Its thoughtful design emphasizes ease of maintenance and adaptability, making it a valuable addition to any setup utilizing Bosch Rexroth's CKK series linear axes.
