BOSCH REXROTH
R913037446

$78.36 USD

BOSCH REXROTH
Material:R913037446
Model:MAGNET.FIELD SENOR T-SLOT NPN-NO 0.5M M8

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

Unpacked Weight: 0.015 kg

3D CAD	Download 3D CAD
3D CAD	Download 3D CAD

Cable diameter D tolerance	±0.15
Cable diameter D	2.9
Bending cycles footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Connection type	0.5 m cable and M8x1 plug, 3-pin with knurled screw connection
Max. acceleration amax	5
Permissible ambient temperature	-30 °C ... +80 °C
Compatible	EMC, MKK/MKR-065/080/110, MLR-080/110, FMS, FMB, PSK
Electrical accessories for electromechanical cylinders	Magnetic sensors
Electrical accessories for linear axes	Magnetic sensors
Cable cross-section	3x0,14
Static bending radius	≧ 5xD
Dynamic bending radius	≧ 10xD
Torsion-resistant footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Torsion-resistant	✓
Weld spark-resistant footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Weld spark-resistant	‒
Short-circuit protection	✓
Suitable for drag chains	ja
Suitable for drag chains footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Load current	≤200
Switching function version	NPN/NO
Productgroup ID	17
Operating voltage min.	10
Footnote: Max. permissible travel speed	Technische Daten nur für die angegossene Anschlussleitung (0,5 m) am magnetischen Sensor. Noch mehr Performance, z.B. für den Einsatz in einer Energiekette, bieten die angebotenen Verlängerungsleitungen.
Operating voltage max.	30
Permissible ambient temperature (max)	+80
Dynamic bending radius footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Max. permissible travel speed	5
Permissible ambient temperature (min)	-30
Note: Max. acceleration amax	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Switching frequency	3
Mean time to dangerous failure (MTTFd)	2339
Footnote bending radius, static	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Protection class	IP68
Footnote cable diameter d with tolerance	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Max. permissible approach speed	5
Reverse polarity protection	✓
Pulse extension (off delay)	20
Operating voltage (min. … max.)	10 V DC ... 30 V DC
Weight	0.015
Footnote cable cross-section	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Switch-on suppression	yes
Functional principle	magnetic
Use	Reference switch
Function indicator	yes

Technische Daten

Part number		R913037445	R913037444	R913037443	R913037446
Functional principle		Magnetic
Operating voltage (min ... max)		10 V DC ... 30 V DC
Load current	mA	≤ 200

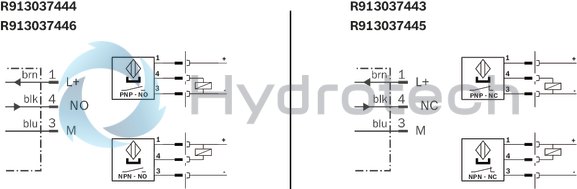

Switching function		PNP/normally closed (NC)	PNP/normally open (NO)	NPN/normally closed (NC)	NPN/normally open (NO)

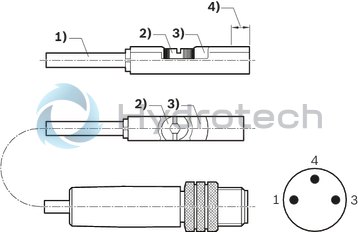

Connection type		Cable 0.5m and plug M8x1, 3-pin with knurled screws
Function indication		✓
Short-circuit protection		✓
Reverse polarity protection		✓
Switch-on suppression		✓
Switching frequency	kHz	3
Pulse delay (Off delay)	ms	20
Maximum permissible starting speed	m/s	5
Suitable for flexing installation 1)		✓
Can withstand torsion 1)		✓
Weld spark resistant 1)		‒
Cable cross-section 1)	mm2	3x0,14
Cable diameter D 2)		2.9 mm ±0.15
Bending radius, stationary 1)		≧ 5xD
Bending radius, flexing 1)		≧ 10xD
Bending cycles 1)		> 2 million
Maximum permissible travel speed 1)	m/s	5
Maximum permissible acceleration 1)	m/s²	5
Permissible ambient temperature (min ... max)		-30 °C ... +80 °C
Protection type		IP68
MTTFd (as per EN ISO 13849-1 )	yrs	2339

1)	Technical data only for the cast-on connection line (0.5 m) at the magnetic sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain.
2)	Technical data only for the cast-on connection line (0,5 m) at the magnetic sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain.
