BOSCH REXROTH
R911308493
$1,505.89 USD
- BOSCH REXROTH
- Material:R911308493
- Model:R-IB IL AI 8/SF-PAC
Quantity in stock: 0
The Bosch Rexroth R-IB IL AI 8/SF-PAC (R911308493) is a high-precision analog input module designed to seamlessly integrate into an Inline station for efficient data acquisition. This module is adept at capturing a wide range of analog voltage or current signals, making it suitable for diverse applications that require meticulous monitoring and control of analog parameters. The R-IB IL AI 8/SF-PAC supports various input ranges, accommodating ...mA to ...mA, with additional capabilities for ...mA and mA signals. It also accepts voltage inputs spanning from ...V to V, including additional ranges of ...V, V, ...V, and V. This versatility allows the module to cater to different signal requirements without the need for external signal conditioning. The unit's robust wire connection technique ensures secure and reliable connections for accurate signal transmission. The module comes complete with all necessary accessories, including a connection plug and a labeling field which simplifies installation and maintenance while promoting clear identification within complex systems. Built for precision and reliability, the Bosch Rexroth R-IB IL AI 8/SF-PAC is an essential component for industrial applications that demand exact analog signal processing. Its compatibility with the Inline station series ensures seamless integration into existing systems or new installations where high-quality data acquisition is paramount.
Inline connector
The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.
Unpacked Weight: 0.249 kg
This module is designed for use within an Inline station. It is used to acquire analog voltage or current signals.
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Air pressure (operation) | 70-106 kPa (up to 3,000 m above sea level) |
| Width | 48.8 |
| Productgroup ID | 4,6 |
| Height | 136.8 |
| International protection code | IP20 |
| Permissible air humidity (storage) | 10-95 |
| Permissible air humidity (transport) | 10-95 |
| A/D conversion time | 10 |
| Number of channels | 8 |
| Connection type | Zugfederanschluss |
| Connection techniques | 2-Leitertechnik |
| Depth | 72 |
| Weight | 0.249 |
| Ambient temperature (during operation) | -25-55 |
| Ambient temperature (storage and transport) | -25-85 |
| Conductor cross-section | Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16 |
General data
|
Type |
R-IB IL AI 8/SF-PAC | |
|
Weight 1) |
g |
213 |
|
Operating mode |
Process data mode with 2 words | |
|
Sensor connection type |
2-wire technology | |
|
Ambient temperature (operation) |
-25 °C ... +55 °C | |
|
Ambient temperature (storage/transport) |
-25 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
10 % ... 95 % acc. to DIN EN 61131-2 | |
|
Permissible relative humidity (storage/transport) |
10 % ... 95 % acc. to DIN EN 61131-2 | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20, IEC 60529 | |
|
Protection class |
III, VDE 0106, IEC 60536 | |
| 1) | Including plug |
Connection data
|
Type |
R-IB IL AI 8/SF-PAC | |
|
Designation |
Inline connection plug | |
|
Connection type |
Tension spring modules | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
Interface local bus
|
Type |
R-IB IL AI 8/SF-PAC | |
|
Connection type |
Data ranking | |
|
Transmission speed |
kBit/s |
500 |
Inline potentials/performance balance
|
Type |
R-IB IL AI 8/SF-PAC | |
|
Logic voltage UL |
V DC |
7.5 |
|
Typical current consumption from UL |
mA |
48 |
|
Maximum current consumption from UL |
mA |
55 |
|
Peripheral supply voltage UANA |
V DC |
24 |
|
Typical current consumption from UANA |
A |
30 |
|
Maximum current consumption from UANA |
A |
35 |
|
Typical power consumption total |
mW |
1500 |
Supply of module electronics and peripherals via bus coupler/power feed module
|
Type |
R-IB IL AI 8/SF-PAC | |
|
Connectivity technology |
Potential jumpers | |
Analog inputs
|
Type |
R-IB IL AI 8/SF-PAC | ||
|
Number of analog inputs 1) |
8 | ||
|
A/D conversion time |
µs |
≤ 10 | |
|
Measurement representation |
16 bits (15 bits + sign) 13 bits (12 bits + sign) 16 bits (15 bits + sign) 16 bits (15 bits + sign) 16 bits - |
||
|
Data formats |
IB IL, IB ST, IB RT, standardized representation, PIO | ||
|
Average |
None or averaged over 4, 16 or 32 measured valuesdefault setting: 16 measured values | ||
|
Process data update |
Bus synchronous | ||
|
Firmware runtime depending on the command |
0x00hex |
µs |
< 800 |
|
5x00hex |
µs |
< 850 | |
|
7000hex/7100hex |
µs |
< 1500 | |
|
7400hex/7500hex/7600hex/7700hex |
µs |
< 1300 | |
|
Overvoltage/overcurrent protection |
Maximum 100 % overload | ||
| 1) | Analog single-ended inputs |
Analog input levels
|
Type |
R-IB IL AI 8/SF-PAC | |
|
Voltage inputs |
||
|
Input resistance |
kΩ |
≥ 240 |
|
Characteristics of the input filter (input level) |
1st order | |
|
Cut-off frequency (–3 dB) of the input filter |
kHz |
3.5 |
|
Behavior upon sensor interruption |
Goes to 0 V | |
|
Maximum permissible voltage between analog voltage inputs and analog reference potential or between two voltage inputs |
V |
50 |
|
Current inputs |
||
|
Input resistance 1) |
Ω |
25 |
|
Cut-off frequency (–3 dB) of the input filter |
kHz |
3.5 |
|
Behavior upon sensor interruption |
Regulating toward 0 mA or 4 mA | |
|
Maximum permissible voltage between analog current inputs and analog reference potential or between two power inputs 2) |
V |
± 2.5 |
|
Maximum permissible current in each input |
mA |
± 100 |
| 1) | Measuring resistance |
| 2) | Equal to 100 mA due to the measuring resistances |
Electrical isolation/insulation of the voltage ranges
|
Type |
R-IB IL AI 8/SF-PAC | |
|
Common potentials |
||
|
24 V main voltage UM, 24 V segment voltage US and GND are on the same potential. FE represents a separate potential area. |
||
|
Separate potentials in the system of bus coupler/feed module and I/O module |
||
|
Test distance |
Test voltage | |
|
5 V supply incoming remote bus/7.5 V supply (bus logic) |
500 V AC, 50 Hz, 1 min. | |
|
5 V supply to further remote bus/7.5 V supply (bus logic) |
500 V AC, 50 Hz, 1 min. | |
|
7.5 V supply (bus logic), 24 V supply UANA/peripherals |
500 V AC, 50 Hz, 1 min. | |
|
7.5 V supply (bus logic), 24 V supply UANA/function earth |
500 V AC, 50 Hz, 1 min. | |
|
Peripherals/function earth |
500 V AC, 50 Hz, 1 min. | |
Error messages to the higher-level control or computer system
|
Type |
R-IB IL AI 8/SF-PAC | |
|
Error message |
Failure of the voltage supply UANA Upon peripheral/user error: Error message about process data input words |
|
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

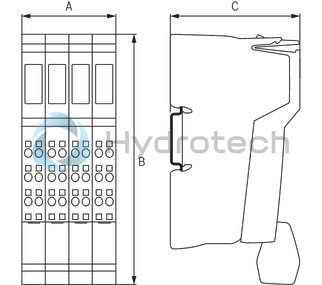

Dimensions
|
Type |
R-IB IL AI 8/SF-PAC | |
|
A |
mm |
48.8 |
|
B |
mm |
136.8 |
|
C |
mm |
72 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
