BOSCH REXROTH
R911296696
$2,633.65 USD
- BOSCH REXROTH
- Material:R911296696
- Model:R-ILSEBK
Quantity in stock: 0
The Bosch Rexroth R-IL SE BK (R911296696) is a SERCOS bus coupler designed to integrate seamlessly with the Rexroth Inline installation system. This bus coupler enables the connection of Inline modules to a SERCOS interface ring, allowing users to leverage the robustness and flexibility of Rexroth's installation system within a SERCOS networked environment. The R-IL SE BK is engineered for high performance and reliability, ensuring efficient communication between connected devices. With its capability to serve as a bridge between the SERCOS interface and the Inline modules, this bus coupler extends the functionality of automation systems by facilitating real-time data exchange and synchronization across various components. It is well-suited for applications that require precise motion control, such as advanced manufacturing processes, robotic systems, and other automated operations that depend on synchronized actions. The product's design adheres to stringent industry standards for networked communication in industrial settings, ensuring compatibility and interoperability with other SERCOS-compliant devices. Users can expect streamlined installation and maintenance due to the inherent design efficiencies of the Rexroth Inline system when combined with the R-IL SE BK bus coupler. This integration offers enhanced modularity and scalability options for system architects and engineers looking to optimize their automation infrastructure.
SERCOS bus coupler constitutes the link between the SERCOS Interface and the Rexroth Inline installation system. The bus coupler permits connection of Inline modules to an existing SERCOS ring, thus providing all benefits of the installation system built by these modules, also with the SERCOS Interface.
General data
|
Type |
R-IL SE BK-PAC | |
|
Weight 1) |
g |
200 |
|
Ambient temperature (operation) 2) |
+5 °C ... +55 °C | |
|
Ambient temperature (storage/transport) |
-25 °C ... +70 °C | |
|
Permissible relative humidity (operation) |
10 % ... 95 % acc. to DIN EN 61131-2, dewing not allowed | |
|
Permissible relative humidity (storage/transport) |
5 % ... 95 % acc. to DIN EN 61131-2, dewing not allowed | |
|
Air pressure (operation) |
Up to 2700 m above sea level as per DIN 60204 | |
|
Air pressure (storage/transport) |
Up to 3000 m above sea level as per DIN 60204 | |
|
Protection type |
IP20, IEC 60529 | |
| 1) | Without plug |
| 2) | 50 °C max. average temperature over 24 hours |
Connection data
|
Type |
R-IL SE BK-PAC | |
|
Permissible cable length |
m |
≤ 30 |
Interface fieldbus
|
Type |
R-IL SE BK-PAC | |
|
Connection type |
Fiber optic cable | |
|
Connectivity technology |
Tension spring modules | |
System boundaries
|
Type |
R-IL SE BK-PAC | |
|
Number of process data |
Max. 32 bytes inputs and 32 bytes outputs | |
|
Number of supported participants per station |
≤ 40 | |
24 V main power supply UM (Main, bus coupler, logic and interface supply)
|
Type |
R-IL SE BK-PAC | |
|
Connectivity technology |
Tension spring modules | |
|
Continuation |
Potential jumpers | |
|
Rated value |
V DC |
24 |
|
Tolerance |
-15 %/+20 % acc. to EN 61131-2 | |
|
Ripple |
% |
± 5 |
|
Supply voltage range |
19.2 V ... 30 V (including ripple) | |
24 V segment supply US
|
Type |
R-IL SE BK-PAC | |
|
Connectivity technology |
Tension spring modules | |
|
Continuation |
Potential jumpers | |
|
Rated value |
V DC |
24 |
|
Tolerance |
-15 %/+20 % acc. to EN 61131-2 | |
|
Ripple |
% |
± 5 |
|
Supply voltage range |
19.2 V ... 30 V (including ripple) | |
|
Current-carrying capacity |
A |
≤ 8 |
24 V logic feed ULS
|
Type |
R-IL SE BK-PAC | |
|
Connectivity technology |
Tension spring modules | |
|
Continuation |
Potential jumpers | |
|
Rated value |
V DC |
24 |
|
Tolerance |
-15 %/+20 % acc. to EN 61131-2 | |
|
Ripple |
% |
± 5 |
|
Supply voltage range |
19.2 V ... 30 V (including ripple) | |
Inline potentials/performance balance
|
Type |
R-IL SE BK-PAC | |
|
Power supply to UL |
A |
≤ 2 |
|
Typical current consumption from UL 1) |
A |
0.11 |
|
Maximum current consumption from UL 2) |
A |
1.5 |
|
Power supply to UANA |
A |
≤ 0.5 |
| 1) | At no load, i.e. no Inline participants connected |
| 2) | Comprising:1.0 A for logic supply0.5 A for analog voltage supply |
Mechanical tests
|
Type |
R-IL SE BK-PAC | |
|
Vibration resistance 1) |
Max. vibration: Frequency range: 5 ... 150 Hz, deflection: 3.5 mm for 5 ... 9 Hz, acceleration: 1 g for 9 ... 150 Hz | |
|
Shock 2) |
g |
15 |
| 1) | Acc. to EN 60068-2-6 |
| 2) | Acc. to EN 60068-2-27, no fault in functionality |
Conformity
|
Type |
R-IL SE BK-PAC | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 4 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
2 kV for DC supply acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion A; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-4 |
Testing of line-fed disturbance transmission |
Class A acc. to EN 55011 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

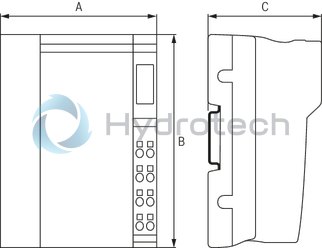

Dimensions
|
Type |
R-IL SE BK-PAC | |
|
A |
mm |
85 |
|
B |
mm |
120 |
|
C |
mm |
71.5 |
