- Model:R-IB IL AO 2/UI-PAC
Quantity in stock: 0
The Bosch Rexroth R-IB IL AO 2/UI-PAC (R911173634) is an advanced analog output module designed to integrate seamlessly within an Inline station. This module is specifically engineered to output analog current or voltage signals, catering to a wide range of industrial automation and control applications. The module's versatility is showcased by its ability to output signals in the ranges of 0...20 mA, 4...20 mA, and 0...10 V, ensuring compatibility with various sensors and actuators. Featuring a convenient wire connection technique, the R-IB IL AO 2/UI-PAC facilitates straightforward installation and maintenance. The module comes complete with essential accessories including a connection plug and a labeling field, which simplifies the setup process and enhances organization within the system. Its compact design does not compromise on performance or reliability, making it an ideal choice for professionals seeking high-quality signal conversion in their automated processes. With its robust construction and precision engineering, this Bosch Rexroth analog output module represents a reliable solution for managing complex tasks that require precise control over analog signals. Whether used in manufacturing systems, process control environments, or other applications where accurate signal transmission is critical, the R-IB IL AO 2/UI-PAC stands out as a top-tier component in the realm of industrial automation hardware.
Inline connector
The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.
Unpacked Weight: 0.091 kg
This module is designed for use within an Inline station. It is used to output analog current or voltage signals.
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Air pressure (operation) | 70-106 kPa (up to 3,000 m above sea level) |
| Air pressure (storage / transport) | 70-106 kPa (up to 3,000 m above sea level) |
| Width | 12.2 |
| Productgroup ID | 4,6 |
| Height | 136.8 |
| International protection code | IP20 |
| Permissible air humidity (storage) | 10-95 |
| Voltage output signal | 0-10 V; -10-10 V |
| Permissible air humidity (transport) | 10-95 |
| Number of channels | 2 |
| Output load voltage | |
| Current output signal | 0-20 mA 4-20 mA -20-20 mA |
| Output load current | |
| Connection type | Zugfederanschluss |
| Connection techniques | 2-Leitertechnik, geschirmt, paarig verdrillt |
| Depth | 71.5 |
| Weight | 0.091 |
| Ambient temperature (during operation) | -25-55 |
| Ambient temperature (storage and transport) | -25-85 |
| Conductor cross-section | Rigid: 0.08-0.5 mm²,Flexible: 0.08-0.5 mm²,AWG: 28 ... 16 |
General data
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Weight 1) |
g |
66 |
|
Ambient temperature (operation) |
-25 °C ... +55 °C | |
|
Ambient temperature (storage/transport) |
-25 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
10 % ... 95 % acc. to DIN EN 61131-2 | |
|
Permissible relative humidity (storage/transport) |
10 % ... 95 % acc. to DIN EN 61131-2 | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20 | |
|
Protection class |
III, IEC 61140, EN 61140, VDE 0140-1 | |
| 1) | Including plug |
Connection data
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Designation |
Inline connection plug | |
|
Connection type |
Spring-cage connection | |
|
Conductor cross-section solid/flexible/AWG |
0.08 mm² ... 1.5 mm² 0.08 mm² ... 1.5 mm² 28 ... 16 |
|
Interface local bus
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Connection type |
Inline data jumper | |
|
Number |
2 | |
|
Transmission speed |
kBit/s |
500 |
|
Transfer physics |
Copper | |
Inline potentials/performance balance
|
Type |
R-IB IL AO 2/UI-PAC | ||
|
Logic voltage UL 1) |
V DC |
7.5 | |
|
Typical current consumption from UL |
mA |
55 | |
|
Maximum current consumption from UL |
mA |
65 | |
|
Peripheral supply voltage UANA |
V DC |
24 | |
|
Typical current consumption from UANA |
No load |
mA |
24 |
|
Voltage nominal load UOUT1/2 = 10 V, RL = 1 kΩ |
mA |
38 | |
|
Power nominal load IOUT1/2 = 20 mA, RL = 0 Ω |
mA |
65 | |
|
Maximum current consumption from UANA |
No load |
mA |
30 |
|
Voltage nominal load UOUT1/2 = 10 V, RL = 1 kΩ |
mA |
45 | |
|
Power nominal load IOUT1/2 = 20 mA, RL = 0 Ω |
mA |
75 | |
|
Typical power consumption |
Voltage nominal load UOUT1/2 = 10 V, RL = 1 kΩ |
W |
1.32 |
|
Power nominal load IOUT1/2 = 20 mA, RL = 0 Ω |
W |
1.97 | |
| 1) | Via potential jumpers |
Analog outputs
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Number of analog outputs |
2 | |
|
Connectivity technology |
2-wire technology (shielded, twisted pair) | |
|
Resolution D/A |
bits |
12 |
|
D/A conversion time |
µs |
10 |
|
Output value representation |
12 bits (11 bits + sign) | |
|
Data formats |
IB IL | |
|
Process data update |
Bus synchronous | |
|
Permissible cable length 1) |
m |
≤ 250 |
|
Short-circuit protection, overload protection |
Electronic | |
|
Transient protection |
Suppressor diode | |
| 1) | The information relates to nominal operation in compliance with the installation regulations and refer to the following reference line type: Shielded power plant line: LiYCY; 2 x 2 x 0.5 mm2; VDE0812 |
Analog outputs, current
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Current output signal |
0 mA ... 20 mA 4 mA ... 20 mA -20 mA ... 20 mA |
|
|
Output load current output |
Ω |
≤ 450 |
|
Precision |
Typ. 0.1 % (of the output range end value) | |
Analog outputs, voltage
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Voltage output signal |
0 V ... 10 V -10 V ... 10 V |
|
|
Output load voltage output |
kΩ |
> 1 |
|
Precision |
Typ. 0.1 % (of the output range end value) | |
Programming data
|
Type |
R-IB IL AO 2/UI-PAC | |
|
ID code (hex) |
5B | |
|
ID code (dec) |
91 | |
|
Length code (hex) |
04 | |
|
Length code (dec) |
04 | |
|
Process data channel |
bits |
64 |
|
Input address room |
byte |
8 |
|
Output address room |
byte |
8 |
|
Parameter channel (PCP) |
byte |
0 |
|
Register length (bus) |
bits |
64 |
Fieldbus data telegram
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Need for parameter data |
byte |
10 |
|
Need for configuration data |
byte |
5 |
Error messages to the higher-level control or computer system
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Error message |
Upon failure of the internal peripheral power supply: Peripheral error message to the bus coupler Upon failure of the peripheral power supply: Message in the diagnostic code (in format IB IL) Upon short-circuit/overload of outputs: Message in the diagnostic code (in format IB IL) Upon invalid configuration: Message in the diagnostic code (in format IB IL) |
|
Electrical isolation/insulation of the voltage ranges
|
Type |
R-IB IL AO 2/UI-PAC | |
|
Test distance |
Test voltage | |
|
7.5 V supply (bus logic), 24 V supply UANA/peripherals |
500 V AC, 50 Hz, 1 min. | |
|
7.5 V supply (bus logic), 24 V supply UANA/function earth |
500 V AC, 50 Hz, 1 min. | |
|
24 V supply (peripherals)/function earth |
500 V AC, 50 Hz, 1 min. | |
Conformity
|
Type |
R-IB IL AO 2/UI-PAC | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric); ±1 kV on shielded I/O lines acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-3 |
Radio disturbance characteristics |
Class A acc. to EN 55022 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

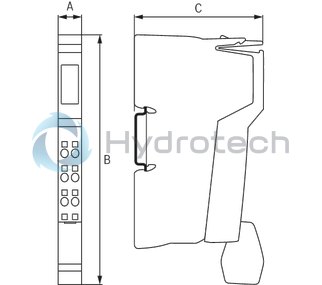

Dimensions
|
Type |
R-IB IL AO 2/UI-PAC | |
|
A |
mm |
12.2 |
|
B |
mm |
136.8 |
|
C |
mm |
71.5 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
