R911173343
$842.74 USD
- BOSCH REXROTH
- Material:R911173343
- Model:S20-RS-UNI
Quantity in stock: 0
The Bosch Rexroth S20-RS-UNI (R911173343) is a sophisticated Cabinet IO module that epitomizes the blend of modularity, compactness, and flexibility. Designed to cater to custom machine concepts efficiently, this device is part of Rexroth's commitment to providing space-saving and cost-effective automation solutions. The S20-RS-UNI is particularly noted for its robust design and quick installation capabilities, making it an ideal choice for both control cabinet and field applications. This module stands out due to its innovative assembly concept and ease of handling. It features a forced ventilated axial fan, ensuring reliable operation even under demanding conditions. The fast reaction time of the IO modules ensures prompt response in dynamic environments, which is critical for maintaining high-performance standards in automated processes. Equipped with open communication standards, the S20-RS-UNI guarantees seamless integration and maximum availability within various systems. Users can benefit from individually combinable modules that allow for tailored configurations to meet specific needs. The product's type code extension is SRSUNI, which signifies its unique design attributes within the product group. Designed for top hat rail mounting, the S20-RS-UNI saves valuable space while providing a compact solution without compromising functionality or performance. The device also includes diagnostic and status indicators that assist in monitoring operations and troubleshooting any potential issues promptly. Furthermore, this module enables the operation of standard peripheral devices with a serial interface on a bus system, enhancing its applicability across different types of machinery setups. Its integration with the ctrlX configurator allows for streamlined configuration management. Overall, the Bosch Rexroth S20-RS-UNI represents a versatile and efficient solution designed to meet the evolving demands of modern industrial automation with reliability and precision.
Cabinet I/O S20
The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.
Unpacked Weight: 0.183 kg
This module is designed for use within an S20 station. It enables the operation of standard peripheral devices with a serial interface on a bus system.
| Innovative assembly and installation concept |
| Individually combinable modules |
| Space-saving I/O technology for top hat rail mounting |
| Compact, modular and simple |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| Type code extension | S20-RS-UNI |
| Productgroup ID | 4,6 |
| ctrlX configurator | https://www.boschrexroth.com/ctrlx-configurator/ |
| Number of channels | 1 |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-RS-UNI**&downloads=true |
| Weight | 0.183 |
General data
|
Type |
S20-RS-UNI | |
|
Color |
Gray | |
|
Weight |
g |
135 |
|
Mounting type |
Support rail | |
|
Ambient temperature (operation) |
-25 °C ... +60 °C | |
|
Ambient temperature (storage/transport) |
-40 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
5 % ... 95 %, no dewing | |
|
Permissible relative humidity (storage/transport) |
5 % ... 95 %, no dewing | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20 | |
|
Protection class |
III, IEC 61140, EN 61140, VDE 0140-1 | |
Connection data
|
Type |
S20-RS-UNI | |
|
Designation |
S20 connector | |
|
Connection type |
Push-in technology | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
|
Stripping length |
mm |
8 |
Interface local bus
|
Type |
S20-RS-UNI | |
|
Connection type |
Bus base module | |
|
Transmission speed |
MBit/s |
100 - |
Interface RS-232, RS-485, RS-422
|
Type |
S20-RS-UNI | |
|
Connection type |
Push-in technology | |
|
Transmission speed 1) |
110 Bit/s ... 250 kBit/s | |
|
Transfer physics |
Copper - - - |
|
|
Supported protocols |
Transparent, end-to-end, XON/XOFF, Modbus RTU (master support) | |
|
Input buffer |
kByte |
4 |
|
Output buffer |
kByte |
1 |
|
Data bits |
5 ... 8 | |
|
Stop bits |
1 or 2 | |
| 1) | Configurable |
Power supply to logic
|
Type |
S20-RS-UNI | |
|
Logic voltage UBus 1) |
V DC |
5 |
|
Typical current consumption from UBus |
mA |
200 |
|
Maximum current consumption from UBus |
mA |
240 |
| 1) | Via bus base module |
Configuration and parameter data in a PROFIBUS system
|
Type |
S20-RS-UNI | |
|
Need for parameter data |
byte |
14 |
|
Need for configuration data |
byte |
7 |
Electrical isolation/insulation of the voltage ranges
|
Type |
S20-RS-UNI | |
|
Test distance |
Test voltage | |
|
5 V supply (logic)/function earth |
500 V AC, 50 Hz, 1 min. | |
|
5 V supply (logic)/5 V supply (peripherals) |
500 V AC, 50 Hz, 1 min. | |
|
5 V supply (peripherals)/function earth |
500 V AC, 50 Hz, 1 min. | |
Mechanical tests
|
Type |
S20-RS-UNI | |
|
Vibration resistance 1) |
g |
5 |
|
Shock 2) |
g |
30 |
|
Continuous shock 2) |
g |
10 |
| 1) | Acc. to IEC 60068-2-6 |
| 2) | Acc. to EN 60068-2-27/IEC 60068-2-27 |
Error messages to the higher-level control or computer system
|
Type |
S20-RS-UNI | |
|
Error message |
None | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

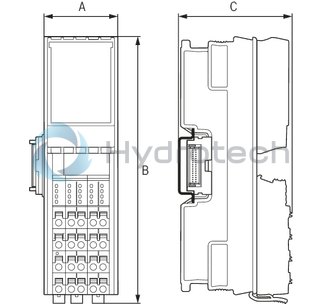

Dimensions
|
Type |
S20-RS-UNI | |
|
A |
mm |
35 |
|
B |
mm |
126.1 |
|
C |
mm |
54 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
