- Material:R911173177
- Model:VDP15.3GAN-D1-NN-NN
Quantity in stock: 0
General data
|
Type |
VDP15.3GAN-D1-NN-NN | VDP15.3GAN-D1-NN-CH | |
|
Color |
RAL 7035 light gray | ||
|
Weight |
kg |
4.8 | 4.8 |
|
Ambient temperature (operation) |
+5 °C ... +45 °C | +5 °C ... +45 °C | |
|
Permissible relative humidity (operation) |
5 % ... 85 %, EN 61131-2 | ||
|
Protection type overall |
IP20 | IP65 | |
|
Protection type front |
IP65 | ||
Display
|
Type |
VDP15.3GAN-D1-NN-NN | VDP15.3GAN-D1-NN-CH | |
|
Type |
TFT - - |
||
|
Size 1) |
39.6 cm/15.6 in | 39.6 cm/15.6 in | |
|
Colors/grayscales |
16 mill. colors | ||
|
Resolution |
1366 x 768 | ||
| 1) | Widescreen |
Operation
|
Type |
VDP15.3GAN-D1-NN-NN | VDP15.3GAN-D1-NN-CH | |
|
Type |
Multi-touch operation - - |
||
|
Number of additional keys |
0 | 4 | |
|
Status LED |
Voltage - - - |
||
Interfaces
|
Type |
VDP15.3GAN-D1-NN-NN | VDP15.3GAN-D1-NN-CH | |
|
Type |
2 x USB 1 x CDI interface – connection of industrial PC to display/terminal - - |
1 x USB Front 2 x USB 1 x CDI interface – connection of industrial PC to display/terminal - |
|
Electrical data
|
Type |
VDP15.3GAN-D1-NN-NN | VDP15.3GAN-D1-NN-CH | |
|
Supply voltage U |
V DC |
24 | 24 |
|
Umin ... Umax |
19 V DC ... 30 V DC | ||
|
Power consumption |
W |
24 | 24 |
Mechanical tests
|
Type |
VDP15.3GAN-D1-NN-NN | VDP15.3GAN-D1-NN-CH | |
|
Vibration resistance |
g |
1 | 1 |
|
Shock resistance |
g |
15 | 15 |
Machine control panel for 15.6" devices
VAM15
Machine control panel for 15.6" devices
VAM15
Machine control panel for individual requirements Overall width 422 mm, suitable for 15.6” devices Suitable for units in the VDP15, VPP15, VEP15, VRxx15 (horizontal) and DR0015 (horizontal) seriesOperating Instructions
CAD Download
Box PC
VPB40.3
Box PC
VPB40.3
Industrial PCs for control cabinet installation High-performance automation platform 1-, 2-, 4-slot variant available Designed for tough industrial applicationsProject planning instructions
Operating instructions
CAD Download
Box PC
VPB40.4
Box PC
VPB40.4
Industrial PCs for control cabinet installation High-performance automation platform 2-, 4-slot variant available Designed for tough industrial applicationsOperating instructions
CAD Download

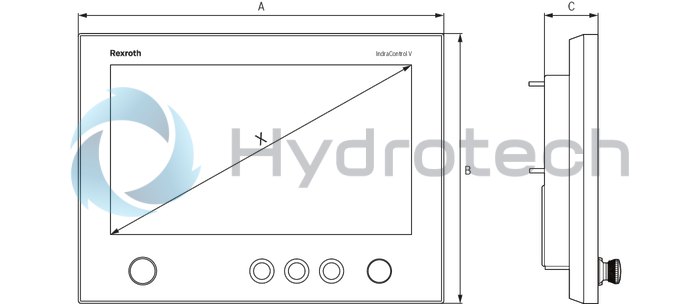

Size 1

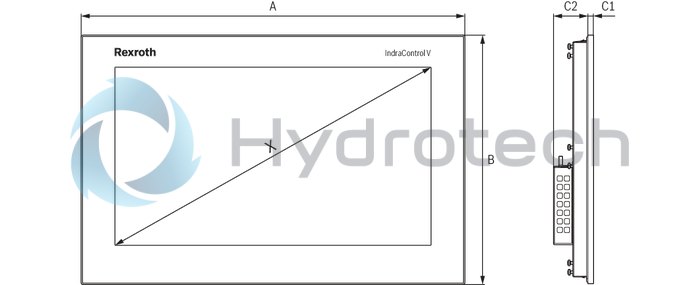

Size 2
Dimensions
|
Type |
VDP15.3GAN-D1-NN-NN | VDP15.3GAN-D1-NN-CH | |
|
Size |
1 | 2 | |
|
A |
mm |
422 | 420 |
|
B |
mm |
275 | 310 |
|
C |
mm |
- | 64.5 |
|
C1 |
mm |
8 | - |
|
C2 |
mm |
48 | - |
|
X |
mm |
396 | 396 |
|
in |
15.6 | 15.6 | |
External 24 V power supply unit
VAP01
External 24 V power supply unit
VAP01
External 24 V power supply unit for VEP, VPP, VPB and VDP devices Input voltage 100-120 or 200-240 V AC Output voltage 24 V DC Output power up to 288 W Output current up to 12 AApplication description
Y-repeater
VAC01
Y-repeater
VAC01
Increases the maximum distance between the industrial PC and display/terminal to 100 m Connection of two displays/terminals to one industrial PC possible (with cascading design up to four displays/terminals per industrial PC) Assignment of operating rights via the 24 V input on the Y-repeater Same display on all displays/terminalsApplication description
Norms and Standards
|
Type |
VDP15.3GAN-D1-NN-NN | VDP15.3GAN-D1-NN-CH | |
|
Certification |
CE UL CSA - - - - |
||
