BOSCH REXROTH
R911172847
$1,421.15 USD
- BOSCH REXROTH
- Material:R911172847
- Model:R-IBIL24PSDO8-PAC
Quantity in stock: 0
The Bosch Rexroth R-IB IL 24 PSDO 8-PAC (R911172847) is a high-performance output module designed for seamless integration within an Inline station. This specific module is engineered to facilitate efficient control of connected actuators in automation systems. With its robust build, the R-IB IL 24 PSDO 8-PAC ensures reliable operation and swift signal processing, which is crucial for maintaining the precision and speed required in complex industrial environments. This output module features eight digital outputs, providing ample connectivity for a range of devices. The digital outputs support a 24V DC voltage level, making it compatible with a wide array of peripheral equipment commonly used in automated processes. The module's compact design allows for optimal use of space within control cabinets, ensuring that system integrators can maintain a clean and organized setup. The R-IB IL 24 PSDO 8-PAC's capabilities extend to its ease of installation and maintenance, thanks to the thoughtful engineering synonymous with Bosch Rexroth products. It is designed to meet the rigorous demands of continuous industrial operation, offering durability and long-term performance stability. This makes it an ideal choice for applications that require consistent output control such as conveyor systems, material handling, packaging machinery, and other automated processes that rely on precise actuation. In summary, the Bosch Rexroth R-IB IL 24 PSDO 8-PAC (R911172847) stands out as a reliable and efficient solution for digital output needs within an Inline station setup. Its compatibility with various actuators and devices alongside its durable construction makes it a valuable component in any automated system requiring high-quality signal processing capabilities.
Inline connector
The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.
Unpacked Weight: 0.345 kg
The R-IB IL 24 PSDO 8-PAC module is an output module that is assigned for use within an Inline station.
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Air pressure (operation) | 80-108 kPa (up to 2,000 m above sea level) |
| Max. net current Up module | 6 |
| Air pressure (storage / transport) | 70-106 kPa (up to 3,000 m above sea level) |
| Width | 48.8 |
| Productgroup ID | 4,6 |
| Height | 120 |
| International protection code | IP20 |
| Permissible air humidity (storage) | 75 |
| Permissible air humidity (transport) | 75 |
| Number of channels | 8 |
| Max. output current per channel | 2 |
| Connection type | Zugfederanschluss |
| Depth | 71.5 |
| Weight | 0.345 |
| Ambient temperature (during operation) | -25-55 |
| Ambient temperature (storage and transport) | -25-70 |
| Conductor cross-section | Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16 |
General data
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
Weight 1) |
g |
200 |
|
Operating mode |
PROFIsafe process data mode with 4 words and 1 word PCP (internal use) | |
|
Ambient temperature (operation) |
-25 °C ... +55 °C | |
|
Ambient temperature (storage/transport) |
-25 °C ... +70 °C | |
|
Permissible relative humidity (operation) |
75% on average, 85% occasionally (no condensation) | |
|
Permissible relative humidity (storage/transport) |
75% on average, 85% occasionally (no condensation) | |
|
Air pressure (operation) |
80 kPa … 108 kPa (up to 2000 m above sea level) | |
|
Air pressure (storage/transport) |
66 kPa … 108 kPa (up to 3500 m above sea level) | |
|
Protection type |
IP20 | |
|
Protection class |
III | |
|
Clearances and creepage distances |
Acc. to IEC 60439-1, derived from IEC 60664-1 | |
|
Housing material |
Plastic PBT, self-extinguishing (V0) | |
|
Supported stop category |
0; 1 in error-free state acc. to EN 60204 | |
| 1) | Including plug |
Connection data
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
Designation |
Inline connection plug | |
|
Connection type |
Tension spring modules | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
Interface local bus
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
Transmission speed |
kBit/s MBit/s |
500 2 |
Safety characteristics
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
Acc. to IEC 61508/EN 61508 |
||
|
Achievable SIL 1) |
SIL 2 (single-channel) SIL 3 (two-channel) - |
|
|
Probability of dangerous failure by demand through the safety function (PFD) |
SIL 2: Maximum 1 % of 10-2 (corresponds to 1 * 10-4) SIL 3: Maximum 1 % of 10-3 (corresponds to 1 * 10-5) |
|
|
Probability of dangerous failure per hour for the whole module (PFH) 2) |
SIL 2: Maximum 1 % of 10-6 (corresponds to 1 * 10-8) SIL 3: Maximum 1 % of 10-7 (corresponds to 1 * 10-9) - |
|
|
Hardware error tolerance (HFT) of the module |
1 | |
|
Permissible operating time |
Years |
20 |
|
Acc. to EN 62061 |
||
|
Achievable SIL Claim Limit 1) |
SIL CL 2 = SIL 2 (single-channel) SIL CL 3 = SIL 3 (two-channel) - |
|
|
Safe Failure Fraction (SFF) |
% |
99 |
|
Probability of dangerous failure per hour for the whole module (PFH) 2) |
SIL 2: Maximum 1 % of 10-6 (corresponds to 1 * 10-8) SIL 3: Maximum 1 % of 10-7 (corresponds to 1 * 10-9) - |
|
|
Hardware error tolerance (HFT) of the module |
1 | |
|
Permissible operating time |
Years |
20 |
|
Acc. to EN ISO 13849-1 |
||
|
Achievable Performance Level 1) |
PL e (two-channel) PL d (single-channel) - |
|
|
Degree of diagnostic cover (DC) |
% |
99 |
|
Mean time to a dangerous failure (MTTFd) |
For single-channel occupancy: 100 years For two-channel occupancy: 100 years |
|
| 1) | Depending on the parameterization and circuit |
| 2) | Depending on the parameterization |
Supply voltage UL
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
Maximum current consumption |
mA |
≤ 230 |
Supply voltage UM
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
Nominal voltage 1) |
V DC |
24 |
|
Tolerance |
-15 %/+20 % including an overall alternating current component with peak value 5 % | |
|
Ripple |
Vpp |
3.6 |
|
Permissible voltage range 2) |
19.2 V DC ... 30 V DC | |
|
Typical current consumption 3) |
mA |
30 |
|
Overvoltage protection |
Protection elements of the bus coupler or the feed module | |
|
Reverse polarity protection |
Protection elements of the bus coupler or the feed module | |
|
Undervoltage detection |
V |
≈ 17 |
|
Diagnosis displays |
LED (green) UM | |
|
External protection 4) |
A |
≤ 8 |
| 1) | Acc. to EN 61131-2, EN 60204 |
| 2) | Including all tolerances, including ripple |
| 3) | All outputs set, plus the current to the actuators |
| 4) | Slow time-lag |
Safe digital outputs
|
Type |
R-IB IL 24 PSDO 8-PAC | |||
|
Number of digital outputs |
4/8 (two-channel/single-channel, plus-switching) | |||
|
Supply |
From UM | |||
|
Maximum output current |
Per output |
A |
≤ 2 | |
|
All outputs (total current) 1) |
A |
≤ 6 | ||
|
Per group (total current) |
Group 1 (OUT0_K1, OUT1_K1, OUT2_K1, OUT3_K1) |
A |
3 | |
|
Group 2 (OUT0_K2, OUT1_K2, OUT2_K2, OUT3_K2) |
A |
3 | ||
|
Maximum output voltage low state |
V |
< 5 | ||
|
Maximum leakage current low state |
mA |
2 | ||
|
Minimum holding voltage of the connected loads |
V |
> 5 | ||
|
Maximum load |
Inductance |
H |
1 | |
|
Capacitive (in relation to current) |
C = 1 s/(R • 1400) Where: C Load capacity in F R Load resistance in Ohm |
|||
|
Minimum load |
16 mA at 24 V |
kΩ |
1.5 | |
|
Limited inductive cut-off voltage |
V |
- 15 | ||
|
Output voltage |
UM ‒ 1 V | |||
|
Simultaneity 2) |
% |
100 | ||
|
Derating |
Up to 50 °C |
Max. 6 A (total current of all outputs) | ||
|
Up to 55 °C |
Max. 4 A (total current of all outputs) | |||
|
Maximum switching frequency |
1 Hz; 0.2 Hz > 1 A - - |
|||
|
Filter time |
None | |||
|
Switch-off delay for shutdown 3) |
Configurable |
150 ms ... 630 s | ||
|
Maximum duration of test pulses |
In deactivated state; drive actively |
ms |
1 | |
|
In activated state 4) |
ms |
3 | ||
|
Status indicators |
One green LED per output (two-color LED green/red) | |||
|
Diagnosis displays |
One red LED per output (two-color LED green/red) | |||
| 1) | Observe the derating and maximum output current per group |
| 2) | Up to 45 °C (observe maximum current load) |
| 3) | After stop category 1; precision ±5 % of parameterized value |
| 4) | Depending on the load capacity |
Electrical isolation/insulation of the voltage ranges
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
Common potentials |
||
|
For the potential separation of the logic layer from the peripheral area, it is necessary to use separate power supplies when supplying the station's bus coupler and the safety module described here. A connection to the supply devices in the 24 V range is not allowed! (See also application description.) |
||
|
Separate potentials in the system of bus coupler/feed module and safety module |
||
|
Test distance |
Test voltage | |
|
5 V supply incoming remote bus/7.5 V supply (bus logic) |
500 V AC, 50 Hz, 1 min. | |
|
5 V supply to further remote bus/7.5 V supply (bus logic) |
500 V AC, 50 Hz, 1 min. | |
|
7.5 V power supply (bus logic)/24 V power supply UM, FE |
500 V AC, 50 Hz, 1 min. | |
Mechanical tests
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
Vibration resistance 1) |
Operation: 2 g; criterion A | |
|
Shock 2) |
15 g, 11 ms; criterion A | |
| 1) | Acc. to IEC 60068-2-6 |
| 2) | Acc. to IEC 60068-2-27 |
Conformity
|
Type |
R-IB IL 24 PSDO 8-PAC | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion B; test voltage 2 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Testing severity 2, criterion B;supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric); signal lines: ±1 kV/±2 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances (ODS) |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-4 |
Testing of line-fed disturbance transmission |
Class A, industrial area acc. to EN 55011 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

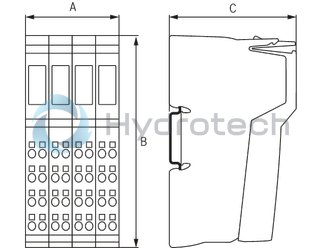

Dimensions
|
Type |
R-IB IL 24 PSDO 8-PAC | |
|
A |
mm |
48.8 |
|
B |
mm |
120 |
|
C |
mm |
71.5 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
