The Bosch Rexroth S20-DI-16/4 (R911172532) is a sophisticated digital input module designed to seamlessly integrate into control cabinet applications requiring precise and rapid signal acquisition. This module is particularly adept at capturing digital signals within an S station setup, offering users the flexibility to adjust filter times for enhanced interference immunity. With adjustable filter times, including options of less than 1 μs, 3 μs, or 10 μs, this module can be tailored to support counting functions with an input frequency of up to 100 kHz. The S20-DI-16/4 features an electronic device nameplate alongside diagnostic and status indicators, ensuring easy monitoring and maintenance. It accommodates 16 digital inputs compliant with EN 61131-2 type 1 and type 3 standards, operating at a voltage of 24 VDC with a nominal current consumption of 5 mA. The connection technology is versatile, supporting sensors in both 2-, 3-, and 4-wire configurations. With its compact design optimized for space-saving top hat rail mounting, the S20-DI-16/4 exemplifies Bosch Rexroth's commitment to modular and straightforward IO technology. The minimum update time of less than 1 μs guarantees swift response times necessary for dynamic industrial environments. Moreover, the module's forced ventilated axial fan ensures reliable operation under various thermal conditions. The ease of installation coupled with open communication standards promotes maximum availability and seamless integration into existing systems. Users will appreciate the innovative assembly concept that streamlines setup processes. In summary, the Bosch Rexroth S20-DI-16/4 digital input module is a high-performance component engineered for efficient signal processing in demanding automation tasks where quick installation, robust design, and flexible configuration are paramount.
Cabinet I/O S20
The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.
Unpacked Weight: 0.3 kg
This module is designed for use within an S20 station. It is used to acquire digital signals. The filter times for the inputs can be adjusted to increase the interference immunity. Filter times of 100 μs allow the user to applicatively implement a counting function using an input frequency of maximum 5 kHz.
| Innovative assembly and installation concept |
| Individually combinable modules |
| Space-saving I/O technology for top hat rail mounting |
| Compact, modular and simple |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| Type code extension | S20-DI-16/4 |
| Productgroup ID | 4,6 |
| ctrlX configurator | https://www.boschrexroth.com/ctrlx-configurator/ |
| Number of channels | 16 |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-DI-16%2F4**&downloads=true |
| Weight | 0.3 |
General data
|
Type |
S20-DI-16/4 | |
|
Color |
Gray | |
|
Weight |
g |
231 |
|
Sensor supply voltage |
US = UI - 1 V | |
|
Ambient temperature (operation) |
-25 °C ... +60 °C | |
|
Ambient temperature (storage/transport) |
-40 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
5 % ... 95 % acc. to DIN EN 61131-2 | |
|
Permissible relative humidity (storage/transport) |
5 % ... 95 % acc. to DIN EN 61131-2 | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20 | |
|
Protection class |
III, IEC 61140, EN 61140, VDE 0140-1 | |
Connection data
|
Type |
S20-DI-16/4 | |
|
Designation |
S20 connector | |
|
Connection type |
Spring-cage connection with direct plug technology | |
|
Conductor cross-section solid/flexible/AWG |
0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16 |
|
|
Stripping length |
mm |
8 |
Interface local bus
|
Type |
S20-DI-16/4 | |
|
Connection type |
Bus base module | |
|
Transmission speed |
MBit/s |
100 |
Power supply to logic
|
Type |
S20-DI-16/4 | |
|
Logic voltage UBus 1) |
V DC |
5 |
|
Maximum current consumption from UBus |
mA |
120 |
|
Maximum power consumption from UBus |
mW |
600 |
| 1) | Via bus base module |
Power supply to peripherals
|
Type |
S20-DI-16/4 | |
|
Feed to digital input modules UI |
V DC |
24 |
|
Maximum permitted voltage range 1) |
19.2 V DC ... 30 V DC | |
|
Current consumption from UI 2) |
A |
≤ 4 |
|
Typical power consumption from UI 3) |
mW |
240 |
|
Maximum power consumption from UI 4) |
W |
120.8 |
|
Overvoltage/reverse polarity protection supply voltage |
Electronic (35 V, 0.5 s) / parallel diode; with external security 5 A (only for commissioning) | |
|
Guarantee 5) |
A |
≤ 8 |
| 1) | Including all tolerances, including ripple |
| 2) | 2 A per 8 input group |
| 3) | Without sensors |
| 4) | From that, 800 mW internal losses |
| 5) | Reverse polarity protection up to 5 A |
Sensor supply
|
Type |
S20-DI-16/4 | |
|
Sensor supply voltage |
US = UI - 1 V | |
|
Maximum sensor current per channel |
A |
2 |
|
Maximum sensor total current per group |
A |
2 |
|
Short-circuit protection |
Electronic, per group | |
|
Overload protection |
Electronic, per group | |
Digital inputs
|
Type |
S20-DI-16/4 | |
|
Number of digital inputs |
16 | |
|
Connection type |
Direct plug-in technology | |
|
Connectivity technology |
2-, 3-, 4-wire technology | |
|
Description of the input |
Acc. to EN 61131-2 type 1 and type 3 | |
|
Nominal input voltage |
V DC |
24 |
|
Nominal input current |
mA |
2.4 |
|
Current profile |
Linear up to nominal current, then constant around 2.4 mA | |
|
Input voltage range "0" signal |
-30 V DC ... 5 V DC | |
|
Input voltage range "1" signal |
11 V DC ... 30 V DC | |
|
Input filter time |
500 µs (default); < 100 µs | |
|
Reverse polarity protection |
Electronic | |
Error messages to the higher-level control or computer system
|
Type |
S20-DI-16/4 | |
|
Error message |
Failure in peripheral supply Overload of group 1 Overload of group 2 |
|
Electrical isolation/insulation of the voltage ranges
|
Type |
S20-DI-16/4 | |
|
Test distance |
Test voltage | |
|
5 V supply (logic)/24 V supply (peripherals) |
500 V AC, 50 Hz, 1 min. | |
|
5 V supply (logic)/function earth |
500 V AC, 50 Hz, 1 min. | |
|
24 V supply (peripherals)/function earth |
500 V AC, 50 Hz, 1 min. | |
Mechanical tests
|
Type |
S20-DI-16/4 | |
|
Vibration resistance 1) |
g |
5 |
|
Shock 2) |
25 g, 11 ms duration, semi-sinusoidal shock pulse | |
|
Continuous shock 3) |
g |
10 |
| 1) | Acc. to IEC 60068-2-6 |
| 2) | Acc. to IEC 60068-2-27 |
| 3) | Acc. to EN 60068-2-29 |
Conformity
|
Type |
S20-DI-16/4 | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-3 |
Radio disturbance characteristics |
Class B acc. to EN 55022 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

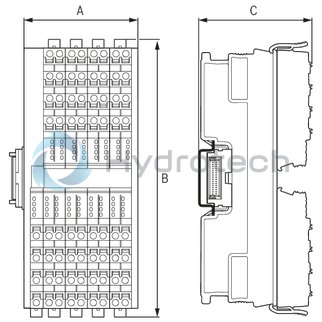

Dimensions
|
Type |
S20-DI-16/4 | |
|
A |
mm |
53.6 |
|
B |
mm |
129.9 |
|
C |
mm |
54 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
