The Bosch Rexroth R-IL PB BK DI8 DO4/CN-PAC (R911172194) is a sophisticated bus coupler designed to seamlessly integrate PROFIBUS-DP and the Inline installation system, facilitating the connection of Inline participants to an existing PROFIBUS-DP network. This highly efficient module acts as one station within a local bus setup, with its inputs and outputs considered as the initial local bus participant. The R-IL PB BK DI8 DO4/CN-PAC boasts consecutive terminal point labeling for ease of installation and maintenance. The device features eight digital inputs and four digital outputs, allowing for a flexible interface that can handle various control signals within an automation environment. The inputs operate on a voltage of VDC while the outputs provide VDC or mA, suitable for diverse application requirements. Connection is made simple with a wire connection system, and the unit comes complete with necessary accessories including a connection plug and a labeling field to ensure clear identification and organization within complex systems. This Bosch Rexroth bus coupler is designed for reliability and precision in industrial settings where PROFIBUS communication is paramount. Its robust construction ensures long-term performance, making it an essential component in any automated process requiring high-speed data exchange and impeccable synchronization between devices. The R-IL PB BK DI8 DO4/CN-PAC is an example of Bosch Rexroth's commitment to advanced engineering solutions that meet the demanding needs of modern industry automation.
Inline connector
The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.
Unpacked Weight: 0.333 kg
Bus coupler R-IL PB BK DI8 DO4/CN-PAC is the connection between the PROFIBUS-DP and the Inline installation system. You can use the bus coupler to connect 62 Inline participants, anywhere, to an existing PROFIBUS-DP. The bus coupler and the Inline participants form one station with 63 local bus participants, whereby the inputs and outputs for the bus coupler are to be regarded as the first local bus participant.
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Air pressure (operation) | 70-106 kPa (up to 3,000 m above sea level) |
| Total current | 2 |
| Width | 80 |
| Short circuit protection, overload protection of the outputs | Integrated free-wheeling circuit in the output chip |
| Productgroup ID | 4,6 |
| Height | 120 |
| International protection code | IP20 |
| Permissible air humidity (storage) | 95 |
| Communication | PROFIBUS DP |
| Permissible air humidity (transport) | 95 |
| Number of channels | 12 |
| Connection type | Zugfederanschluss |
| Connection techniques | 2-, 3-Leitertechnik |
| Depth | 71.5 |
| Weight | 0.333 |
| Ambient temperature (during operation) | -25-60 |
| Ambient temperature (storage and transport) | -45-85 |
| Conductor cross-section | Rigid: 0.08-0.5 mm²,Flexible: 0.08-0.5 mm²,AWG: 28 ... 16 |
General data
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
Weight 1) |
g |
320 |
|
Sensor connection type |
2-, 3-wire technology | |
|
Actuator connection type |
2-, 3-wire technology | |
|
Ambient temperature (operation) |
-25 °C ... +60 °C | |
|
Ambient temperature (storage/transport) |
-45 °C ... +85 °C | |
|
Permissible relative humidity (operation) |
95 % without dewing | |
|
Permissible relative humidity (storage/transport) |
95 % without dewing | |
|
Air pressure (operation) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Air pressure (storage/transport) |
70 kPa ... 106 kPa (up to 3000 m above sea level) | |
|
Protection type |
IP20, IEC 60529 | |
|
Protection class |
III, IEC 61140 | |
| 1) | Including plug |
Connection data
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
Designation |
Inline connection plug | |
|
Connection type |
Tension spring modules | |
|
Conductor cross-section solid/flexible/AWG |
0.08 mm² ... 1.5 mm² 0.08 mm² ... 1.5 mm² 28 ... 16 |
|
|
Permissible cable length |
m |
≤ 30 |
Interface fieldbus
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
Connection type |
9-pin D-SUB socket | |
|
Transfer physics |
Copper line (RS-485), connected via D-SUB shielded plug; supply electrically isolated; shielding connected directly with the function earth. - - - |
|
Interface local bus
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
Transmission speed |
500 kbits/s or 2 Mbits/s (automatic detection) | |
System boundaries
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
Number of process data |
Max. 488 bytes; 244 bytes (inputs), 244 bytes (outputs) | |
|
Number of parameter data |
Max. 244 bytes (incl. 14 bytes for the bus coupler, DP/V1 and the local inputs and outputs) | |
|
Number of configuration data |
Max. 244 bytes (incl. 5 bytes for the local inputs and outputs) | |
|
Number of supported participants per station |
≤ 62 | |
|
Response time (side-by-side I/Os) |
Typically 4 ms; transfer speed: PROFIBUS 1.5 Mbits/s, local bus 500 kbits/s | |
Supply voltage for UBK, US, UM
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
Continuation |
Potential jumpers | |
|
Rated value |
V DC |
24 |
|
Supply voltage range |
19.2 V ... 30 V, EN 61131-2 (including ripple) | |
Inline potentials/performance balance
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | ||
|
Power supply to UM |
Maximum 8 A | ||
|
Current consumption from UM |
Typically 5 mA + 3 mA per set input | ||
|
Power supply to UL |
A |
≤ 0.8 | |
|
Power supply to UANA |
A |
≤ 0.5 | |
|
Current consumption from UBK (24 V) |
Current consumption module electronics |
A |
≤ 0.08 |
|
Maximum current consumption from UBus |
A |
0.4 | |
|
Maximum current consumption from UANA |
A |
0.5 | |
|
Maximum current consumption from UBK |
A |
0.98 | |
|
Power supply to US |
Maximum 8 A | ||
|
Current consumption from US |
Typically 3 mA + 4 mA per set output + load | ||
|
Power dissipation |
Typ. 1.7 W (device total) | ||
Digital inputs
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | ||
|
Number of digital inputs |
8 | ||
|
Dimensioning of inputs |
Acc. to EN 61131-2 type 1 | ||
|
Definition of switching thresholds |
Maximum voltage of the low level ULmax |
V |
< 5 |
|
Minimum voltage of the high level UHmin |
V |
> 15 | |
|
Common potentials |
Sensor supply US, weight | ||
|
Nominal input voltage UIN |
V DC |
24 | |
|
Permissible range |
-30 V < UIN < +30 V DC | ||
|
Nominal input current at UIN |
mA |
3 | |
|
Current profile |
Limited to maximum 3 mA | ||
|
Delay time |
Typically 2.9 ms; (transfer speed: PROFIBUS 1.5 Mbits/s) | ||
|
Use of AC sensors |
AC sensors in the voltage range < UIN are only partially applicable | ||
|
Reverse polarity protection |
Serial reverse polarity protection diode | ||
Digital outputs
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | ||
|
Number of digital outputs |
4 | ||
|
Nominal output voltage UOut |
V DC |
24 | |
|
Differential voltage at INenn |
V |
< 1 | |
|
Nominal current INenn each channel |
A |
0.5 | |
|
Total current |
A |
2 | |
|
Nominal load ohmic |
W |
12 | |
|
Nominal load lamps |
W |
12 | |
|
Nominal load inductive |
1.2 H; 48 Ω |
VA |
12 |
|
Maximum switching frequency for inductive nominal load |
1.2 H; 48 Ω |
Hz |
0.5 |
|
Response time |
Typically 2.9 ms; (transfer speed: PROFIBUS 1.5 Mbits/s) | ||
|
Behavior when the voltage is switched off |
The output follows the power supply without delay | ||
|
Limited inductive cut-off voltage |
V |
≈ - 30 | |
|
Output current in deactivated state |
μA |
≤ 10 | |
|
Behavior for overload |
Automatic restart | ||
|
Inductive overload |
Output can be destroyed | ||
|
Reverse voltage protection from short pulses |
Reverse voltage protection | ||
|
Resistance to permanently generated reverse voltage |
A |
≤ 2 | |
|
Short-circuit protection, overload protection of the outputs |
Integrated free-wheeling circuit in the output chip | ||
Error messages to the higher-level control or computer system
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
Error message |
Short-circuit/overload of digital outputs Missing sensor supply |
|
Mechanical tests
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
Vibration resistance 1) |
Load 5 g, 2 h per spatial direction | |
|
Shock 2) |
Load 25 g for 11 ms, half sinusoidal wave, three shocks per spatial direction and orientation | |
| 1) | Acc. to EN 60068-2-6/IEC 60068-2-6 |
| 2) | Acc. to EN 60068-2-27/IEC 60068-2-27 |
Conformity
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | ||
|
Conforms with |
|||
|
Testing of interference immunity acc. to EN 61000-6-2 |
Discharge of static electricity (ESD) |
Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2 | |
|
Electro-magnetic fields |
Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3 | ||
|
Fast transients (burst) |
Criterion A; all interfaces 1 kV; criterion B; all interfaces 2 kV acc. to EN 61000-4-4/IEC 61000-4-4 | ||
|
Transient overvoltage (surge) |
Criterion B; supply lines DC: ±0.5 kV/±1 kV (symmetric/asymmetric); fieldbus cable shielding: ±1 kV acc. to EN 61000-4-5/IEC 61000-4-5 | ||
|
Line-fed disturbances |
Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6 | ||
|
Testing of disturbance transmission acc. to EN 61000-6-4 |
Testing of line-fed disturbance transmission |
Class A acc. to EN 55011 | |
|
Approvals |
|
The current approvals can be found at www.boschrexroth.com. |

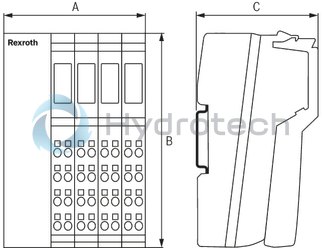

Dimensions
|
Type |
R-IL PB BK DI8 DO4/CN-PAC | |
|
A |
mm |
80 |
|
B |
mm |
120 |
|
C |
mm |
71.5 |
|
Note on dimensions |
The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715). | |
