BOSCH REXROTH
R911171363
$4,809.55 USD
- BOSCH REXROTH
- Material:R911171363
- Model:CML25.1-3N-400-NN-NNC1-NW
Quantity in stock: 0
General data
|
Type |
CML25.1-PN-400 | |
|
Diagnostics |
Powerfail Watchdog Temperature monitoring |
|
|
Display |
LCD 1-line | |
|
Number of control keys |
4 | |
|
Ambient temperature (operation) |
°C |
+5 … +55 |
|
Permissible relative humidity (operation) |
5 % ... 95 %, EN 61131-2 | |
|
Protection type |
IP20 | |
|
Weight |
kg |
0.64 |
Processor
|
Type |
CML25.1-PN-400 | |
|
CPU |
(Renesas SH 7785) | |
|
Real-time clock |
Integrated | |
Memory
|
Type |
CML25.1-PN-400 | |
|
Application/application |
MB |
128 |
|
Remanent memory |
kB |
256 |
|
Flash size |
GB |
1 |
Connection data
|
Type |
CML25.1-PN-400 | ||
|
Number of channels, used |
≤ 256 | ||
|
I/O extension |
Number of Inline modules |
≤ 63 | |
|
byte |
≤ 64 | ||
Interfaces
|
Type |
CML25.1-PN-400 | |
|
Type |
1 x Ethernet TCP/IP (standard) 1 x ready contact (standard) |
|
|
Fieldbus system |
1 x Sercos III (option) 1 x PROFINET IO controller/device (option) 1 x ETHERNET/IP scanner/adapter (option) 1 x PROFIBUS DP master/slave (option) |
|
Electrical data
|
Type |
CML25.1-PN-400 | ||
|
Supply voltage U |
V DC |
24 | |
|
Umin ... Umax |
19 V DC ... 30 V DC | ||
|
Residual ripple |
% |
± 5 | |
|
Logic supply UL |
V 1) |
7.5 | |
|
A |
≤ 2 | ||
|
Logic, segment supply ULS |
Tolerance |
-25 % … +30 % | |
|
A |
≤ 2 | ||
|
Segment supply voltage US |
Tolerance |
-15 % … +20 % | |
| Max. 8 A (total of UM + US) | |||
|
Main supply voltage UM |
V DC |
24 | |
|
Tolerance |
-15 % … +20 % | ||
| Max. 8 A (total of UM + US) | |||
|
Power consumption |
W |
8.7 | |
| 1) | Converted from external 24 V DC |
Mechanical tests
|
Type |
CML25.1-PN-400 | |
|
Vibration resistance |
g |
1 |
|
Shock |
g |
15 |
Function modules
CFL
Function modules
CFL
Extension of the control functionality through additional technology features Expansion of connectivity with additional interfaces Expansion of the standard control to the SafeLogic safety controllerCAD Download
I/O system for the control cabinet
Inline (IP20)
I/O system for the control cabinet
Inline (IP20)
Compact, modular, and simple Space-saving I/O technology for DIN rail mounting Individually combinable modules Innovative assembly and installation conceptCAD Download
Fieldline (IP67)
I/O system for field installation
Fieldline (IP67)
I/O system for field installation
High protection type IP67 for harsh industrial environments Intelligent voltage concept for selective power-off Fast and perfect installation Highly reliable operation under extreme ambient conditions Compact designCAD Download

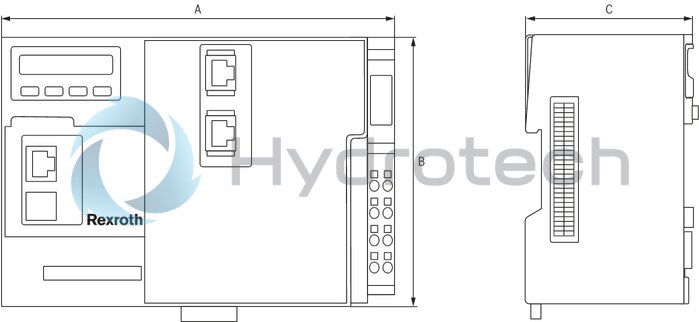

Dimensions
|
Type |
CML25.1-PN-400 | |
|
A |
mm |
175.4 |
|
B |
mm |
120 |
|
C |
mm |
84.7 |
Norms and Standards
|
Type |
CML25.1-PN-400 | |
|
Certifications |
CE/UL/CSA | |
