BOSCH REXROTH
R901342030

$416.30 USD

BOSCH REXROTH
Material:R901342030
Model:HM 20-2X/315-H-K35 GO2

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

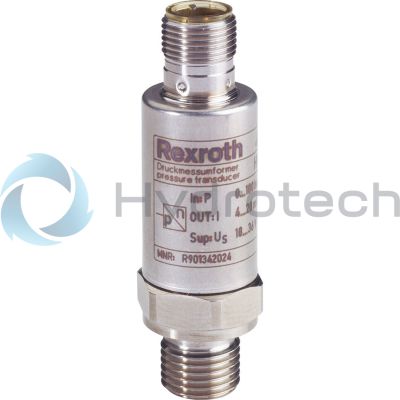

The Bosch Rexroth HM 20-2X/315-H-K35 (R901342030) is a high-precision pressure transducer designed for dynamic pressure control in hydraulic systems. This transducer offers a robust analog output of 0.5...4.5 V over a pressure range up to 315 bar, ensuring accurate and reliable monitoring of system pressures. With its short signal rise time of less than 2 ms, the HM 20-2X/315-H-K35 is particularly suited for applications requiring rapid response times. The device features a thin-film measuring cell and all components in contact with the media are constructed from stainless steel, which provides excellent resistance to corrosive fluids and ensures longevity in harsh environments. The high degree of measurement accuracy of less than ±0.5% FS, coupled with an outstanding overload and bursting behavior, makes this sensor highly reliable for critical applications. For ease of installation, the HM 20-2X/315-H-K35 comes equipped with a hydraulic connection G1/4 and includes a throttle element in the pressure channel to dampen pressure spikes and pulsations. The electrical connection is facilitated via a connector pole M12x1, A-coded as per EN standards. This pressure transducer operates within a wide temperature range and has been granted marine approval DNVGL for all variants with current output, making it suitable for maritime applications as well as standard industrial use. It has been designed to work with various hydraulic fluids including HL, HLP, HFC types, and Nitrogen up to 600 bar. With its combination of precision measurement capabilities, durable construction, and compliance with CE, UL, RoHS standards, the Bosch Rexroth HM 20-2X/315-H-K35 (R901342030) is an ideal choice for reliable pressure monitoring in advanced hydraulic systems across diverse operational conditions.

Pressure transducer with analog output 0.1 … 10 V, pressure range 0 ... 315 bar, connector 4-pole M12x1 A-coded

Short signal rise time 1 ms for dynamic pressure control. All components in contact with the media are made of stainless steel. High degree of measurement accuracy of 0.5% FS. Excellent overload and bursting behavior.

Unpacked Weight: 0.06 kg

Pressure transducers are used to monitor and control hydraulic pressures. They transform the measured pressure into a normalized, linear, electrical output signal.

Thin film measuring cell
Analog output 0.1 … 10 V
Hydraulic connection G1/4
Throttle element in the pressure channel
Connector 4-pole, M12x1, A-coded

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD

Max. pressure	315
Electrical connection description	Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101
Productgroup ID	9,10,11,12,13,14
Conformity description	CE – electromagnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU
Electrical connector	Connector 4-pole, M12x1, A-coded
Display	no
Supply voltage	24 VDC
Weight	0.06
Seals	NBR
Output signal	0.1 … 10 V
Hydraulic fluid	HL,HLP,HFC,Nitrogen (up to 300 bar)
Conformity	CE,UL,RoHS

01		02		03		04		05	06
HM20	–	2X	/		–		–	K35

01	Pressure transducer	HM20
02	Component series 20 ... 29 (20 ... 29: unchanged installation dimensions and pin assignments)	2X
03	10 bar	10
	50 bar	50
	100 bar	100
	160 bar	160
	250 bar	250
	315 bar	315
	400 bar	400
	630 bar1)	630
04	Current output 4 to 20 mA 2)	C
04	Voltage output 0.1 to 10 V	H
05	Connector, 4-pole, M12x1	K35
06	Without throttle element	ohne Bez.
06	Throttle element (corresponds to 0.3 mm nozzle) 3), 4)	N

1)	Only available with throttle element
2)	With marine approval DNV-GL
3)	Only available for versions with 250, 315, 400 and 630 bar
4)	Highly dynamic effects in like pressure peaks or cavitation in hydraulic systems may damage the measuring cell. For these applications, devices with integrated throttle element [version "-N"] in the process interface have to be used.

Replacement seal ring
Designation	Material number
Seal ring NBR	R900012467

Cable sets or mating connectors are not included in the scope of delivery; please order separately.

General

Component series		2X

Eingangsgrößen

Operating voltage 1)	US		16 … 36 VDC
Residual ripple	UPP		2.5 V (40 to 400 Hz)
Maximum current consumption 2)	Imax	mA	≤ 12
Isolation resistance	R	MΩ	> 100 (500 VDC)
Pressure measuring ranges	pN	bar	10	50	100	160	250	315	400	630	10	50	100	160	250	315	400	630	10	50	100	160	250	315	400	630	10	50	100	160	250	315	400	630	10	50	100	160	250	315	400	630	10	50	100	160	250	315	400	630	10	50	100	160	250	315	400	630	10	50	100	160	250	315	400	630

1)	With cULus: max. of 30 VDC is admissible
2)	With voltage output

Output parameters

Output signal	admissible load	Current	ISig		4 … 20 mA, RA = (US - 8.5 V) / 0.0215 A with RA in Ω and US in V
Output signal	admissible load	Voltage	USig		0.1 … 10 V, RA > 2 kΩ
Setting time (10 ... 90 %)			t	ms	< 1
Accuracy class 1)				%	< 0.5
Temperature coefficient	Zero point and range				< 0.1 % / 10 K
Hysteresis 2)				%	< 0.15
Long-term drift (1 year) under reference conditions				%	< 0.1

1)	Related to the complete measurement range, including non-linearity, hysteresis, zero point and end value deviation (corresponds to the measuring deviation according to IEC 61298-2)
2)	Related to the temperature range -20 … 80 °C

Ambient conditions

Ambient temperature range	ϑ	°C	-40 … +85
Storage temperature range	ϑ	°C	-40 … +100
Hydraulic fluid temperature range	ϑ	°C	-40 … +90

Other characteristics

Pressure port 1)				G1/4 according to DIN 3852 form E, seal ring according to DIN 3869-14
Material	Throttle			1.4305
	Housing			V4A (1.4404), PEI, HNB
	in contact with the medium			1.4542, 1.4305, NBR
Pressure media 2)				HL, HLP, HFC, nitrogen, others upon request
Tightening torque range	Measurement ranges > 400 bar	MA	Nm	20 … 25
Tightening torque range	Measurement ranges ≥ 400 bar	MA	Nm	25 … 30
Anschlussart				4-pole M12 connector at the housing
Type of protection according to EN 60529				IP65 / IP67 with mating connector correctly mounted and locked
Weight		m	kg	0.06
Life cycle				60 million load cycles or 60000 h
Admissible shock and vibration loads according to DIN EN 60068-2-27				15 g / 11 ms / 3 axes
Sine test according to DIN EN 60068-2-6:2008				10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes
Noise test according to DIN EN 60068-2-64				20 … 2000 Hz / 14 g RMS / 42 g peak / 24 h / 3 axes
Electro-magnetic compatibility	EMC EN 61000-4-2 ESD			4 kV CD / 8 kV AD with BWK B
	EMC EN 61000-4-3 HF radiated			10 V / m (80 ... 2700 MHz) with BWK A
	EMC EN 61000-4-4 Burst			2 kV with BWK B
	EMC EN 61000-4-5 Surge			1 kV / 42 Ω with BWK B
	EMC EN 61000-4-6 HF line-bound			10 Veff (150 kHz ... 80 MHz) with BWK A
	EMC EN 61000-4-8 Magnetic field 50/60 Hz			100 A/m with BWK A
	EMC EN 61000-4-9 Magnetic field pulsed			1000 A/m with BWK A
	EMC EN 55016-2-1 Interference voltage			0.15 ... 30 MHz, class A, EN 55022
	EMC EN 55016-2-3 Radio interference field strength			30 ... 1000 MHz, class B, EN 55022
Conformity				CE according to the EMC directive
Further tests				cULus-listed

1)	Thorough bleeding must be ensured
2)	Maximum of 300 bar is admissible

For applications outside these parameters, please consult us!

Voltage	Current (two-wire system)
Values for US, RA and USig, see Technical data	Values for US, RA and USig, see Technical data

Dimensions in mm

technical illustration-R901342030-Pressure transducer with analog output 0.1 … 10 V, pressure range 0 ... 315 bar, connector 4-pole M12x1 A-coded

1	Pressure port G1/4 male thread
2	Seal ring
3	4-pole M12 connector

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line, cable shielded

4P M12 +

Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line, cable shielded

4P M12 +

For sensors and valves with connector “K24”, “K35” and “K72” Cable sets M12, 4-pole, line cross-section 0.34 mm2
