Material:R900772607
Model:BEARING PEDESTAL CLTB 12 PAAR SCHWENKZ

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BEARING PEDESTAL CLTB 12 PAAR SCHWENKZ (R900772607) is a precision-engineered component designed to provide reliable and sturdy support in various mechanical applications. This bearing pedestal is part of the CLTB series, which is known for its robust construction and compatibility with a wide range of motion technology equipment. The model code, CLTB 12 PAAR SCHWENKZ, indicates specific features such as the size and configuration of the pedestal, ensuring it meets the exact requirements for the intended application. Crafted with high-quality materials, this bearing pedestal ensures durability and longevity, maintaining stability under different operating conditions. It is designed to facilitate smooth swiveling movements, making it suitable for applications that require precise positioning and rotational motion control. The compatibility with other Bosch Rexroth components allows for seamless integration into complex systems. The R900772607 bearing pedestal is an essential component in constructing stable and efficient machinery where support and alignment of rotating shafts or pivoting connections are critical. Its design ensures minimal maintenance while providing maximum functionality, contributing to the overall efficiency of the equipment it supports. Whether used in automation systems, production lines, or specialized machinery, this bearing pedestal upholds the high standards associated with Bosch Rexroth's products in terms of quality and performance.

Technical Data
Dimensions

For applications outside these parameters, please consult us!

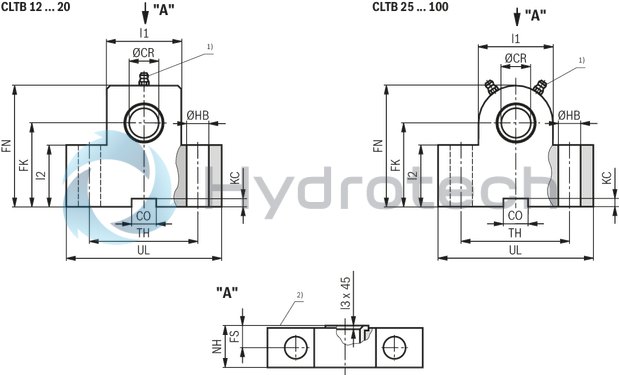

Dimensions: Trunnion bearing block CLTB

ISO 8132

1)	Lubricating nipple, cone head form A according to DIN 71412
2)	Trunnion contact surface (inside)

Dimensions: Trunnion bearing block CLTB

ØAL	ØMM	Type 2)	Suitable for series	Nominal force 3)	ØCR		CO		FK		FN	FS		ØHB		KC		l1	l2	l3	NH	TH		UL	m 4)
											max.										max.			max.
mm				kN	mm		mm		mm		mm	mm		mm		mm	mm	mm	mm	mm	mm	mm		mm	kg
25	14 mm / -	CLTB 12	CDL2 - - - - - -	8	12	H7	10	N9	34	js12	50	8	js14	9	H13	3.3	+ 0.3 0	25	25	1	17	40	js14	63	0.4
25	- / -	CLTB 12	CDM1 CGM1 CSM1 - - - -	8	12	H7	10	N9	34	js12	50	8	js14	9	H13	3.3	+ 0.3 0	25	25	1	17	40	js14	63	0.4
32	18 mm / -	CLTB 16	CDL2 - - - - - -	12.5	16	H7	16	N9	40	js12	60	10	js14	11	H13	4.3	+ 0.3 0	30	30	1	21	50	js14	80	0.85
32	- / -	CLTB 16	CDM1 CGM1 CSM1 - - - -	12.5	16	H7	16	N9	40	js12	60	10	js14	11	H13	4.3	+ 0.3 0	30	30	1	21	50	js14	80	0.85
40	22 mm / -	CLTB 20	CDL2 - - - - - -	20	20	H7	16	N9	45	js12	70	10	js14	11	H13	4.3	+ 0.3 0	40	38	1.5	21	60	js14	90	1.2
40	- / -	CLTB 20	CDM1 CGM1 CSM1 - - - -	20	20	H7	16	N9	45	js12	70	10	js14	11	H13	4.3	+ 0.3 0	40	38	1.5	21	60	js14	90	1.2
40	25 mm / -	CLTB 25	CDL2 - - - - - -	32	25	H7	25	N9	55	js12	80	12	js14	13.5	H13	5.4	+ 0.3 0	56	45	1.5	26	80	js14	110	2.1
40	- / -		CDH2 CGH2 CSH2 - - - -	32	25	H7	25	N9	55	js12	80	12	js14	13.5	H13	5.4	+ 0.3 0	56	45	1.5	26	80	js14	110	2.1
50	28 mm / -		CDL2 - - - - - -	32	25	H7	25	N9	55	js12	80	12	js14	13.5	H13	5.4	+ 0.3 0	56	45	1.5	26	80	js14	110	2.1
50	- / -		CDM1 CGM1 CSM1 - - - -	32	25	H7	25	N9	55	js12	80	12	js14	13.5	H13	5.4	+ 0.3 0	56	45	1.5	26	80	js14	110	2.1
50	32 mm / -	CLTB 32	CDL2 - - - - - -	50	32	H7	25	N9	65	js12	100	15	js14	17.5	H13	5.4	+ 0.3 0	70	52	2	33	110	js14	150	4.55
50	- / -		CDH2 CGH2 CSH2 - - - -	50	32	H7	25	N9	65	js12	100	15	js14	17.5	H13	5.4	+ 0.3 0	70	52	2	33	110	js14	150	4.55
63	36 mm / -		CDL2 - - - - - -	50	32	H7	25	N9	65	js12	100	15	js14	17.5	H13	5.4	+ 0.3 0	70	52	2	33	110	js14	150	4.55
63	- / -		CDM1 CGM1 CSM1 - - - -	50	32	H7	25	N9	65	js12	100	15	js14	17.5	H13	5.4	+ 0.3 0	70	52	2	33	110	js14	150	4.55
63	40 mm / -	CLTB 40	CDL2 - - - - - -	80	40	H7	36	N9	76	js12	120	16	js14	22	H13	8.4	+ 0.3 0	88	60	2.5	41	125	js14	170	7.3
63	- / -		CDH2 CGH2 CSH2 - - - -	80	40	H7	36	N9	76	js12	120	16	js14	22	H13	8.4	+ 0.3 0	88	60	2.5	41	125	js14	170	7.3
80	45 mm / -		CDL2 - - - - - -	80	40	H7	36	N9	76	js12	120	16	js14	22	H13	8.4	+ 0.3 0	88	60	2.5	41	125	js14	170	7.3
80	- / -		CDM1 CGM1 CSM1 - - - -	80	40	H7	36	N9	76	js12	120	16	js14	22	H13	8.4	+ 0.3 0	88	60	2.5	41	125	js14	170	7.3
80	50 mm / -	CLTB 50	CDL2 - - - - - -	125	50	H7	36	N9	95	js12	140	20	js14	26	H13	8.4	+ 0.3 0	100	75	2.5	51	160	js14	210	14.5
80	- / -		CDH2 CGH2 CSH2 - - - -	125	50	H7	36	N9	95	js12	140	20	js14	26	H13	8.4	+ 0.3 0	100	75	2.5	51	160	js14	210	14.5
100	56 mm / -		CDL2 - - - - - -	125	50	H7	36	N9	95	js12	140	20	js14	26	H13	8.4	+ 0.3 0	100	75	2.5	51	160	js14	210	14.5
100	- / -		CDM1 CGM1 CSM1 - - - -	125	50	H7	36	N9	95	js12	140	20	js14	26	H13	8.4	+ 0.3 0	100	75	2.5	51	160	js14	210	14.5
100	63 mm / -	CLTB 63	CDL2 - - - - - -	200	63	H7	50	N9	112	js12	180	25	js14	33	H13	11.4	+ 0.3 0	130	85	3	61	200	js14	265	23.1
100	- / -		CDH2 CGH2 CSH2 - - - -	200	63	H7	50	N9	112	js12	180	25	js14	33	H13	11.4	+ 0.3 0	130	85	3	61	200	js14	265	23.1
125	70 mm / -		CDL2 - - - - - -	200	63	H7	50	N9	112	js12	180	25	js14	33	H13	11.4	+ 0.3 0	130	85	3	61	200	js14	265	23.1
125	- / -		CDM1 CGM1 CSM1 - - - -	200	63	H7	50	N9	112	js12	180	25	js14	33	H13	11.4	+ 0.3 0	130	85	3	61	200	js14	265	23.1
125	80 mm / -	CLTB 80	CDL2 - - - - - -	320	80	H7	50	N9	140	js12	220	31	js14	39	H13	11.4	+ 0.3 0	160	112	3.5	81	250	js14	325	52.3
125	- / -		CDH2 CGH2 CSH2 - - - -	320	80	H7	50	N9	140	js12	220	31	js14	39	H13	11.4	+ 0.3 0	160	112	3.5	81	250	js14	325	52.3
160 1)	- / -		CDM1 CGM1 CSM1 - - - -	320	80	H7	50	N9	140	js12	220	31	js14	39	H13	11.4	+ 0.3 0	160	112	3.5	81	250	js14	325	52.3
140	- / -	CLTB 90	CDH2 CGH2 CSH2 - - - -	385	90	H7	63	N9	160	js12	250	40	js14	45	H13	12.4	+ 0.3 0	180	130	4	91	265	js14	345	-
160	- / -	CLTB 100	CDH2 CGH2 CSH2 - - - -	500	100	H7	63	N9	180	js12	280	45	js14	52	H13	12.4	+ 0.3 0	200	145	4.5	102	295	js14	385	-
200 1)	- / -	CLTB 100	CDM1 CGM1 CSM1 - - - -	500	100	H7	63	N9	180	js12	280	45	js14	52	H13	12.4	+ 0.3 0	200	145	4.5	102	295	js14	385	-
180	- / -	CLTB 110	CDH2 CGH2 CSH2 - - - -	630	110	H7	80	N9	200	js12	310	50	js14	52	H13	15.4	+ 0.3 0	220	160	5	112	320	js14	410	-

1)	Dimensions differ for replacement transactions (CDM1/CGM1/CSM1 series 1X). Please consult us!
2)	Bearing blocks are always supplied in pairs
3)	Nominal force applies to applications in pairs
4)	m = weight of trunnion bearing block in kg (specified per pair)

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Notice:

Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.

The trunnion bearing blocks are suitable for attachment in case of type of mounting MT4.
