BOSCH REXROTH
R900205509


$1,123.92 USD
  • BOSCH REXROTH
  • Material:R900205509
  • Model:2FRM6B36-3X/10QRV

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

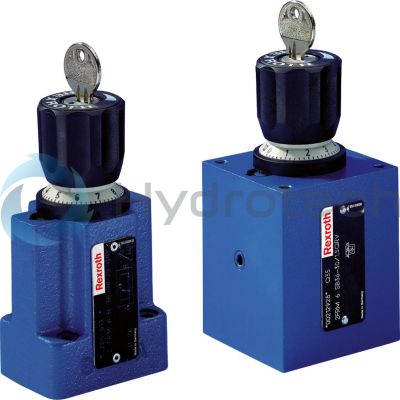

The Bosch Rexroth 2FRM6B36-3X/10QRV (R900205509) is a high-performance industrial hydraulic valve designed for reliable flow control to a set value. This valve features a mechanically actuated spool with A to B and B to A functionality, ensuring consistent flow regardless of pressure fluctuations. It comes with an integrated check valve and does not require closing of the pressure compensator. The 2FRM6B36-3X/10QRV is equipped with a lockable rotary knob that has a clear scale for precise adjustments. The housing, rotary knob, orifice bush, and pressure compensator are meticulously constructed to maintain a constant flow within the system, independent of external pressures and temperature changes. This valve operates without an external closing mechanism and does not include a check valve by default. The design incorporates a pressure compensator positioned downstream from the throttling point to ensure that the flow remains steady in channel B. The compression spring ensures that the compensator remains open under no-flow conditions, while fluid flow prompts the compensator to balance forces for consistent operation. For bidirectional flow control, an additional rectifier sandwich plate type ZS can be installed beneath this valve. The 2FRM6B36-3X/10QRV adheres to DIN form A for porting patterns and is available with optional adjustment types like rotary knobs with or without scale locking features. This model boasts compatibility with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR types. It has FKM seals that promote durability against these fluids. The subplate mounting design follows CETOP D standards and it connects according to NFPA T.. R D SizeCETOP D or ISO connection diagrams. With its robust construction and versatile capabilities, the Bosch Rexroth 2FRM6B36-3X/10QRV offers optimal performance for systems requiring precise hydraulic flow regulation.


Size 6, A → B, B → A, mechanically actuated

Industrial hydraulic valve in a high performance range. Reliable control of the flow to setting value.

Unpacked Weight: 1.02 kg

General information

The flow control valve type 2 FRM is a 2-way flow control valve.

It is used for maintaining a constant flow, independent of pressure and temperature.

The valve basically consists of housing (1), rotary knob (2), orifice bush (3), pressure compensator (4) and an optional check valve.



Flow control valve type  2FRM 6 B…MV

(without external closing, without check valve)

The flow from channel A to channel B is throttled at the throttling point (5). The throttle cross-section is set by turning the rotary knob (2). To ensure a pressure-independent and constant flow in channel B, a pressure compensator (4) is fitted downstream of the throttling point (5).

The compression spring (6) presses the pressure compensator (4) downwards against its stop and keeps the pressure compensator (4) in the open position when there is no flow through the valve. When fluid flows through the valve, the pressure acting in channel A applies a force to the pressure compensator (4) via orifice (7).

The pressure compensator (4) moves into the controlled position until the forces balance. If the pressure in channel A rises, the pressure compensator (4) moves in the closing direction until the forces are balanced again. Due to this continuous compensation of the pressure compensator (4), a constant flow is obtained.

In order to control a flow through the valve in both directions, a rectifier sandwich plate type Z4S 6 may be fitted below this flow control valve.

Type 2FRM 6 B76-3X/.MV

technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated
With check valve
Direct actuated
Without closing of the pressure compensator
Lockable rotary knob with scale
Maximum operating pressure 315 bar
Size 6
Maximum flow 32 l/min
Component series 3X
Spool symbolA → B, B → A
Max. pressure315
Productgroup ID9,10,11,12,13,14
Number of ports4
Type of actuationwith mechanical actuation
Size6
Max. flow10
Type of connectionSubplate mounting
Connection diagram NFPANFPA T3.5.1 R2-2002 D03
Size_CETOPD03
Connection diagramISO 6263-03-02-*-13
Number of switching positions2
Weight1.02
SealsFKM
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR

01

02

03

04

05

06

07

08

09

10

2FRM

6

6

3X

/

V

*

01

2-way flow control valve

2FRM

02

Size 6

6

03

without closing of the pressure compensator

B

Adjustment type

04

Lockable rotary knob with scale

1)

3

Rotary knob with scale

7

05

Zero position of the marking at port P

6

06

Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)

3X

Flow (A → B)

07

up to 0.2 l/min

0,2Q

up to 0.6 l/min

0,6Q

up to 1.5 l/min

1,5Q

up to 3.0 l/min

3Q

up to 6.0 l/min

6Q

up to 10 l/min

10Q

up to 16 l/min

16Q

up to 25.0 l/min

25Q

up to 32.0 l/min

32Q

08

With check valve

R

Without check valve

M

Seal material

09

FKM seals (other seals upon request)

V

Observe compatibility of seals with hydraulic fluid used.

10

Further details in the plain text

*

1) Key with material no. R900008158 is included in the scope of delivery.

Preferred types and standard units are contained in the EPS (standard price list).

general

Size

6

Weight (approx.)

kg

1.3

Installation position

any

Ambient temperature range

°C

-20 … +50

hydraulic

Size

6

Maximum operating pressure 1)

Anschluss A

bar

315

Pressure differential Δp with free return flow B → A

See characteristic curves

Minimum pressure differential

bar

6 … 14

Pressure stable (qV max) to Δp = 315 bar

%

± 2

Maximum flow

l/min

0.2 0.6 1.5 3 6 10 16 25 32

Minimum flow

up to 100 bar

l/min

0.01 0.03 0.05 0.07 0.1 0.25

up to 315 bar

l/min

0.03 0.05 0.07 0.1 0.05

Hydraulic fluid

Mineral oil (HL, HLP) according to DIN 51524, other hydraulic fluids on request

Hydraulic fluid temperature range

°C

-20 … +80

Viscosity range

mm²/s

10 … 800

Maximum admissible degree of contamination of the hydraulic fluid 2)

Class 20/18/15 according to ISO 4406 (c)
1) In applications with rectifier sandwich plate up to 210 bar
2) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Flow dependent on the scale setting (flow control A → B)

technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated

Δp-qV characteristic curve via check valve (B → A) orifice closed

technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated

pE-qV characteristic curve

technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated

Temperature dependency at Δp = 20 bar

technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated

simplified

Detailed

without check valve;

without external closing

Type 2FRM 6 B…MV

technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated

with check valve;

without external closing

Type 2FRM 6 B…RV

technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated

Subplate mounting – version “A” and “B”

Dimensions in mm

technical illustration-R900205509-Size 6, A → B, B → A, mechanically actuated

1

Adjustment type "3" (lockable rotary knob with scale)

2

Adjustment type "7" (rotary knob with scale)

3

Identical seal rings for ports A, B, P, and T

4

Space required to remove the key

5

Bore Ø3 mm at version "B" not bored (without external closing)

6

Name plate

7

Position of the marking at port P

8

Porting pattern according to DIN 24340 form A

Subplate mounting:

Valve mounting screws (separate order)

without rectifier sandwich plate

4 hexagon socket head cap screws

ISO 4762 - M5 x 30 - 10.9-flZn-240h-L

at friction coefficient μtotal = 0.09 to 0.14,

Tightening torque MA = 7 Nm ± 10 %,

Material no. R913000316

with rectifier sandwich plate

4 hexagon socket head cap screws

ISO 4762 - M5 x 70 - 10.9-flZn-240h-L

at friction coefficient μtotal = 0.09 to 0.14,

Tightening torque MA = 7 Nm ± 10 %,

Material no. R913000325



Subplates (separate order)

Type G 341/01 (G1/4)

Type G 342/01 (G3/8)

Type G 502/01 (G1/2)
