BOSCH REXROTH
R067322040
$94.00 USD
- BOSCH REXROTH
- Material:R067322040
- Model:KBB-O-20-DD
Quantity in stock: 0
The Bosch Rexroth SUPER LINEAR BUSH KBB-O-20-DD (R067322040) is a high-quality linear bushing designed to provide smooth and precise linear motion in various applications. This model features steel bearing plates with meticulously machined ball guide grooves and optimized ball lead-in chamfers, ensuring outstandingly smooth travel and a long service life. The KBB-O-20-DD is characterized by its open design without self-alignment features, making it ideal for use on fully supported shafts where other linear guides may experience warping due to imprecise substructures. With a shaft diameter of 20 mm, the SUPER LINEAR BUSH integrates wiper seals to protect against contaminants while allowing for high travel speeds up to the maximum permissible linear speed (vmax). The frictional drags are minimal due to the bushing's design, which includes a ball retainer and outer sleeve made of PA or POM, as well as balls crafted from rolling bearing steel. This model does not require initial lubrication and can withstand ambient temperatures ranging from -30°C to +80°C. The dynamic load capacity (C) indicates the bushing can handle significant loads in the main direction of loading, while the static load rating (C0) ensures stability under stationary forces. The breakaway force is specified for situations requiring an understanding of the initial force needed to start movement. With a weight of 0.1 kg and various radial clearance options available, this linear bushing offers versatility for different fitting requirements. Overall, the Bosch Rexroth SUPER LINEAR BUSH KBB-O-20-DD is engineered for high-performance applications that demand low-cost yet reliable linear motion solutions. Its robust construction and thoughtful design elements make it suitable for a wide range of industrial uses where accuracy and durability are paramount.
Super LB B, open, 20, with two seals
Super linear bushing
Super B (no self-alignment feature)
Open
Shaft diameter d = 20
With two seals
Unpacked Weight: 0.06068 kg
| Low-cost linear bushing for high requirements |
| Steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life |
| Without self-alignment feature for transferring lower tipping force along the axial direction |
| Open linear bushing on fully supported shafts for applications where other linear guides tend to warp due to imprecise substructures. |
| High travel speed (5 m/s) |
| With longitudinal seal |
| Integrated wiper seals, external seals or no wiper seals |
| Ball retainer and outer sleeve made of PA or POM |
| Balls made of rolling bearing steel |
| No initial lubrication |
| Data Sheet | Download Data Sheet |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Rows of balls | 5 |
| Series | Super B (no self-alignment feature) |
| Footnote friction force FR | 1. One wiper seal: Multiply value with factor 0.5 2. Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Size C1 H13 | 31.2 |
| Footnote dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Max. acceleration amax | 150 |
| Footnote friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Size E | 9 |
| Outer diameter D | 32 |
| Breakaway force | 3 |
| Maximum permissible linear speed vmax | 3 |
| Size D | 32 |
| Friction coefficient μ | 0,001 ... 0,0025 |
| Footnote static load capacity C0 | The load capacities apply for the main direction of loading. |
| Static load rating C0 | 1180 |
| Size C h13 | 45 |
| Size C2 | 1.6 |
| Friction coefficient μ max. | 0.0025 |
| Note: Maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. |
| Friction force | 1.5 |
| Friction coefficient μ min. | 0.001 |
| Productgroup ID | 17 |
| Permissible ambient temperature (max) | |
| Angle α | 55 |
| Permissible ambient temperature (min) | |
| Friction force FR footnote 2 | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Shaft diameter d | 20 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Linear bushings |
| Format of linear bushings | O – Open |
| Dynamic load capacity C | 2570 |
| Weight | 0.06068 |
| Size D1 with tolerance | |
| Radial clearance shaft h6/bore K7 | |
| Radial clearance shaft/bore h6/H7 | |
| Radial clearance shaft h6/bore M7 |
General technical data
|
Ø d |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 | |||||||
|
amax |
m/s² |
150 | |||||||||||||
|
vmax 1) |
m/s |
3 | |||||||||||||
|
m |
kg |
0.018 | 0.022 | 0.051 | 0.102 | 0.155 | 0.3 | 0.48 | |||||||
|
FR 2) |
N |
0.8 | 3 | 1 | 4 | 1.5 | 5 | 2 | 6 | 2.5 | 8 | 3 | 10 | 4 | 12 |
|
Breakaway force 3) |
N |
1.5 | 6 | 2 | 9 | 3 | 10 | 4.5 | 14 | 6 | 18 | 8 | 24 | 10 | 30 |
|
μ 4) |
0.001 ... 0.0025 | ||||||||||||||
|
Rows of balls |
4 | 5 | |||||||||||||
|
Shaft radial clearance h6/bore H7 |
µm |
+ 38 + 10 |
+ 43 + 11 |
+ 50 + 12 |
|||||||||||
|
Shaft radial clearance h6/bore K7 |
µm |
+ 23 - 5 |
+ 25 - 7 |
+ 29 - 9 |
|||||||||||
|
Shaft radial clearance h6/bore M7 |
µm |
+ 17 - 11 |
+ 18 - 14 |
+ 20 - 18 |
|||||||||||
|
Operating conditions |
|||||||||||||||
|
Permissible ambient temperature (min ... max) |
-10 °C ... +80 °C | ||||||||||||||
| 1) | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. |
| 2) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| 3) | One wiper seal: Multiply by a factor of 0.5. |
| 4) | Friction coefficients of unsealed Linear Bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
Load capacities and load moments
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
C 1) |
N |
1060 | 1500 | 2570 | 5040 | 5020 | 8620 | 12500 |
|
C0 1) |
N |
510 | 830 | 1180 | 2770 | 2880 | 4480 | 6620 |
| 1) | The load ratings apply for the main direction of loading. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
|
Symbol |
Description |
Unit |
|
Ød |
Shaft diameters |
mm |
|
amax |
Maximum acceleration travel |
m/s2 |
|
C |
Dynamic load capacity |
N |
|
C0 |
Static load capacity |
N |
|
FR |
Friction force |
N |
|
m |
Mass |
kg |
|
vmax |
Maximum permissible speed |
m/s |
|
μ |
Friction coefficient |
For load in the direction of opening, please refer to the loading diagrams (see "Diagrams" section).

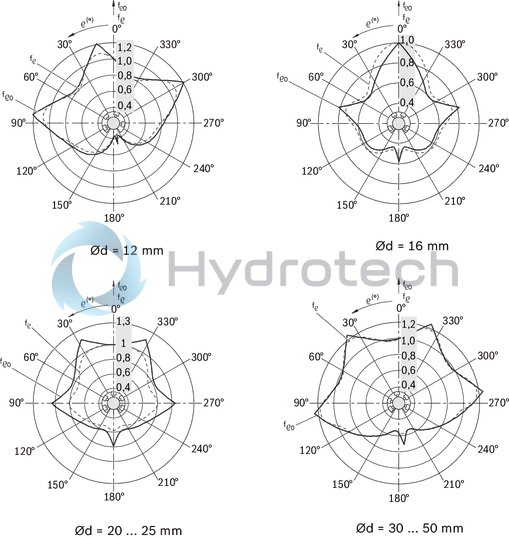

Impact of load direction on load rating of open Linear Bushings
The load ratings C and C0 apply for the main direction of loading ρ = 0°. For all other load directions, the load ratings must be multiplied by the factors fρ (dynamic load rating C) or fρ0 (static load rating C0).
Installing specific Linear Bushings can prevent reductions in load capacity (see Linear Set with side opening).
Reduced load capacity with short stroke
In case of short stroke, the service life of the shaft is less than that of the super Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
| 1) | fs = factor |
| 2) | s = movement path |
Definition of dynamic load ratings
Sealing
Super linear bushings come both with integrated and separate wiper seals. The separate wiper seals are specially designed for applications in high contamination environments. An additional seal (for example, bellows, extendable cover) is necessary for extremely high contamination environments. The open super linear bushings can also come fully sealed (with longitudinal seal), however this increases friction.

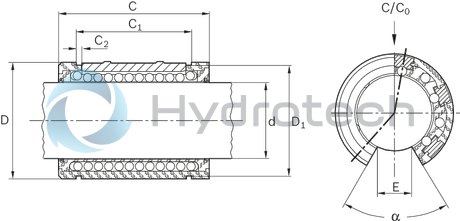

Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 | |
|
D |
mm |
22 | 26 | 32 | 40 | 47 | 62 | 75 | |
|
α |
° |
66 | 68 | 55 | 57 | 56 | 54 | ||
|
C |
h13 |
mm |
32 | 36 | 45 | 58 | 68 | 80 | 100 |
|
C1 |
H13 |
mm |
22.6 | 24.6 | 31.2 | 43.7 | 51.7 | 60.3 | 77.3 |
|
C2 |
mm |
1.3 | 1.6 | 1.85 | 2.15 | 2.65 | |||
|
E 1) |
mm |
6.5 | 9 | 11.5 | 14 | 19.5 | 22.5 | ||
| 1) | Minimum size in relation to Ø d. |
Radial clearance
The radial clearance values shown in the table have been determined from statistics and correspond to values expected in practice.
Adjusting radial clearance
The radial clearance of all Linear Bushings can be adjusted. If, for instance, a zero-clearance guideway is needed, the radial clearance of the Linear Bushing must be reduced using the adjusting screw on the housing (see also Linear Sets) until slight resistance occurs when rotating the shaft. Secure the adjusting screw for applications where vibrations are present.
Adjusting preload
For preloading, the aforementioned adjustment is made using an adjustment shaft that is weaker by the degree of preload.
Customer-built housings
General mounting instructions
Initial lubrication
Linear bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
