BOSCH REXROTH
R063003000

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

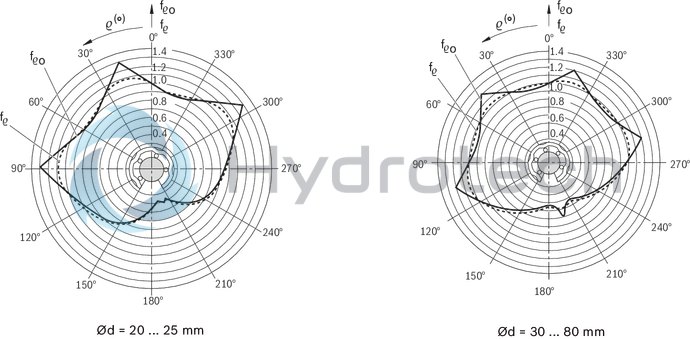

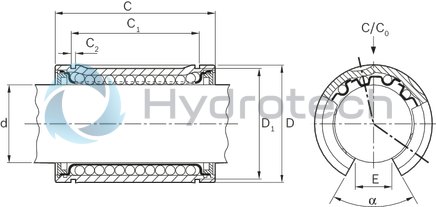

The Bosch Rexroth STD.LINEAR BUSHING KBM-O-30 (R063003000) is a high-quality standard linear bushing designed for robust and efficient linear motion applications. This open design bushing is crafted without seals, making it suitable for environments with heavy contamination or where high temperatures are present. With a hardened and ground outer sleeve and a steel ball retainer, the KBM-O-30 ensures durability and reliable performance even in harsh conditions such as woodworking, foundries, and cement plants. The bushing features multiple pockets that act as lubricant reservoirs, contributing to extended lubrication intervals or potentially providing lubrication for life. These pockets also serve to collect dirt and debris, preventing jamming of the component. Engineered without wiper seals but including integrated steel retaining rings, this linear bushing can withstand higher temperatures when used with shaft diameters of 30 mm and above. The KBM-O-30 has a dynamic load capacity C of 1570 N and a static load rating C0 of 940 N, which are applicable for the main direction of loading. It can handle maximum permissible linear speeds (vmax) of up to 5 m/s. The bushing's friction force is minimized through its design, although it may vary depending on the load conditions. It operates efficiently within an ambient temperature range from -20°C to +80°C. With a weight of just 0.18 kg, this Bosch Rexroth linear bushing offers an optimal balance between strength and weight efficiency. The product comes in size E with an outer diameter D of 45 mm. Its radial clearance is meticulously crafted to maintain precision in motion while accommodating various operational demands. In summary, the Bosch Rexroth STD.LINEAR BUSHING KBM-O-30 (R063003000) is designed for demanding applications that require durable components capable of operating under challenging conditions without compromising on performance or maintenance requirements.
