BOSCH REXROTH
9511290018

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

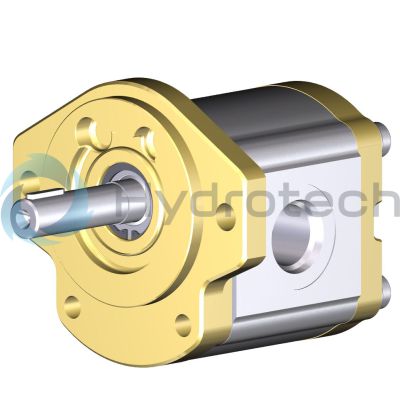

The Bosch Rexroth AZMF-12-022UQR12ML-S0022 (9511290018) is a high-performance external gear motor designed for converting hydraulic energy flow and pressure into mechanical energy, specifically torque and rotational speed. This unit is characterized by its birotational capability, meaning it can operate in both directions, making it versatile for various applications. The straight shaft conforms to SAE J500 standards, ensuring compatibility with a wide range of equipment. Engineered with precision manufacturing technology, this motor offers exceptional efficiency through pressure-dependent gap sealing which minimizes heat loss during operation. Its construction includes slide bearings that are capable of supporting high loads and a wide speed range, enhancing the motor's adaptability to different working conditions. The option for a reversible version extends its functionality to both 2- and 4-quadrant operation. Durability is a key feature of the AZMF-12-022UQR12ML-S0022, as it boasts consistent high quality due to Bosch Rexroth's large-volume production processes. It has a long service life expectancy thanks to its robust design which includes an aluminum housing material and NBR sealing material for corrosion resistance. The unit has a geometric displacement size of 22 cm³/rev and can sustain a maximum constant pressure during operation. The front cover integrates an SAE J744 A bolt flange while line connections are made via Thread UNB with SAE O-ring seals. The model F series gear motor operates at standard noise levels and has a maximum rotational speed specified by the manufacturer. With a bearing diameter of 22 mm and weighing in at 5.7 kg, this compact yet powerful gear motor can handle a max flow rate of 45 l/min, making it suitable for various industrial applications where reliable hydraulic power conversion is essential.
