BOSCH REXROTH
9510490085

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

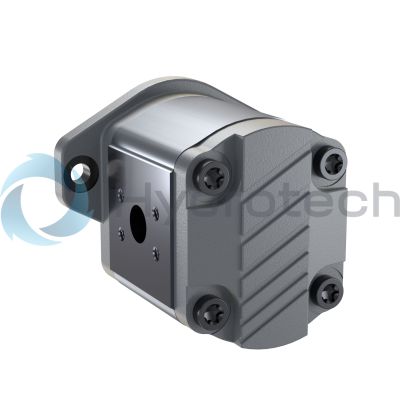

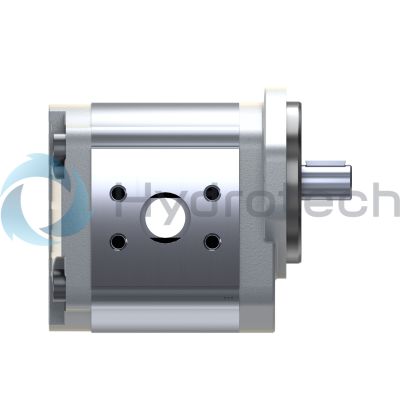

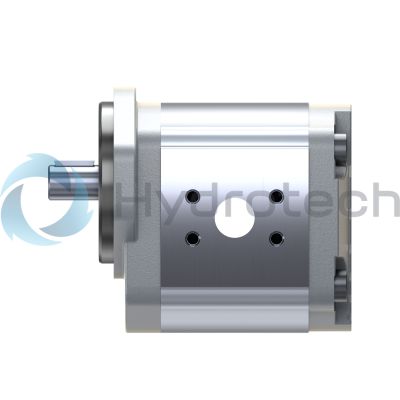

The Bosch Rexroth AZPG-22-036RQC15MB (9510490085) is a high-efficiency external gear pump designed to convert mechanical energy into hydraulic energy with minimal heat loss. This particular model features a clockwise rotation and a straight keyed drive shaft in accordance with SAE J standards. It boasts an SAE J 4-bolt flange and an SAE split flange with UNC thread for port connections, ensuring secure and versatile integration into various hydraulic systems. Constructed with aluminum housing material, the pump is equipped with slide bearings capable of handling high loads, which contributes to its durability and long service life. The AZPG-22-036RQC15MB has a geometric displacement size of 22 cm³/rev, and it operates at a standard noise level, making it suitable for environments where noise reduction is desirable. The unit's design includes pressure-dependent gap sealing and high-precision manufacturing technology, which are key factors in its consistent high quality derived from large-volume production. The pump's sealing material is NBR, offering reliable performance under diverse conditions. Additionally, this model is corrosion-resistant and pinned for enhanced resilience in challenging applications. With a maximum intermittent pressure capability and a bearing diameter of 40 mm, the Bosch Rexroth AZPG-22-036RQC15MB ensures robust performance in its operational capacity. Its maximum flow rate reaches up to 40 l/min, highlighting its capability to handle significant hydraulic flow requirements. Overall, this external gear unit from Bosch Rexroth's G Series is designed for general application use where reliable hydraulic power conversion is essential. Its standard rear cover and front cover options further extend the pump's adaptability to different system configurations. With a weight of approximately 8 kg, it strikes a balance between sturdiness and ease of installation for various industrial applications.
