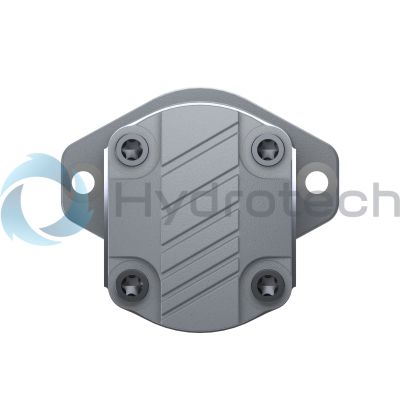

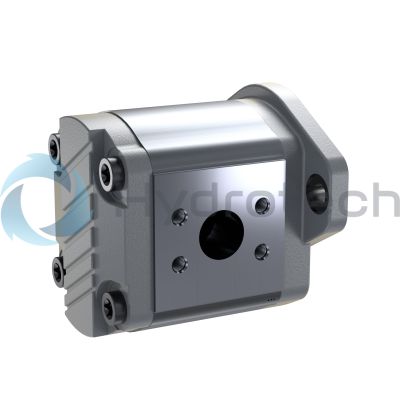

BOSCH REXROTH
9510490084
$885.00 USD
- BOSCH REXROTH
- Material:9510490084
- Model:AZPG-22-032RQC40MB GO2
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth AZPG-22-032RQC15MB (9510490084) is a high-efficiency external gear pump designed to transform mechanical energy into hydraulic power with minimal heat loss. This unit features a clockwise rotation and a straight keyed drive shaft conforming to SAE J standards, ensuring compatibility with a wide range of equipment. The pump boasts an SAE J 4-bolt flange on the front cover and an SAE split flange with UNC thread for line connections, offering secure and reliable attachment points. With its robust aluminum housing, the AZPG-22-032RQC15MB is built for durability and long service life. It comes equipped with slide bearings capable of handling high loads, making it suitable for demanding applications. The pump's geometric displacement is sized at 32 cm³/rev, which allows for consistent fluid transfer at the desired flow rate. The sealing material used in this model is NBR, which provides good resistance to various hydraulic fluids while maintaining sealing integrity. Additionally, the unit features corrosion-resistant components and is pinned to enhance its resilience in harsh environments. Designed for general application use, this external gear pump operates within standard noise levels, making it suitable for environments where noise reduction is important. The maximum intermittent pressure capacity of this model ensures that it can handle rigorous tasks without compromising performance. The Bosch Rexroth AZPG-22-032RQC15MB external gear pump has a bearing diameter of 22 mm and supports a maximum rotational speed that contributes to its efficient operation. Its weight and max flow rate specifications underscore its capability to meet the requirements of various hydraulic systems while maintaining consistent high quality based on large-volume production standards.
The Bosch Rexroth AZPG-22-032RQC15MB (9510490084) is a high-efficiency external gear pump designed to transform mechanical energy into hydraulic power with minimal heat loss. This unit features a clockwise rotation and a straight keyed drive shaft conforming to SAE J standards, ensuring compatibility with a wide range of equipment. The pump boasts an SAE J 4-bolt flange on the front cover and an SAE split flange with UNC thread for line connections, offering secure and reliable attachment points. With its robust aluminum housing, the AZPG-22-032RQC15MB is built for durability and long service life. It comes equipped with slide bearings capable of handling high loads, making it suitable for demanding applications. The pump's geometric displacement is sized at 32 cm³/rev, which allows for consistent fluid transfer at the desired flow rate. The sealing material used in this model is NBR, which provides good resistance to various hydraulic fluids while maintaining sealing integrity. Additionally, the unit features corrosion-resistant components and is pinned to enhance its resilience in harsh environments. Designed for general application use, this external gear pump operates within standard noise levels, making it suitable for environments where noise reduction is important. The maximum intermittent pressure capacity of this model ensures that it can handle rigorous tasks without compromising performance. The Bosch Rexroth AZPG-22-032RQC15MB external gear pump has a bearing diameter of 22 mm and supports a maximum rotational speed that contributes to its efficient operation. Its weight and max flow rate specifications underscore its capability to meet the requirements of various hydraulic systems while maintaining consistent high quality based on large-volume production standards.
32 cm³/rev, Clockwise rotation, Straight keyed SAE J744 22-1 , SAE J744 101-2 (B) 2-bolt flange, SAE Split flange, UNC thread
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Unpacked Weight: 10.000 kg
| Long service life |
| Slide bearings for high loads |
| Port connections: flanged or threaded |
| Consistent high quality based on large-volume production |
| Drive shafts according to ISO or SAE and customer specific solutions |
| Offer Drawing | Download Offer Drawing |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Rear cover | Standard |
| Maximum rotational speed | 2800 |
| Productgroup ID | 7,21,22,23,24,25 |
| Size (geometric displacement) | 32 |
| Sealing material | NBR |
| Version | Corrosion resistant, pinned |
| Noise level | Standard noise level |
| External gear unit | External Gear Unit |
| Application | general |
| Drive shaft | Straight keyed SAE J744 22-1 |
| Housing material | Aluminum |
| Line connection | SAE Split flange, UNC thread |
| Series | Model G (22.5 ... 56 cm³/rev) |
| Front cover | SAE J744 101-2 (B) 2-bolt flange |
| Maximum intermittent pressure | 280 |
| Direction of rotation | Clockwise rotation |
| Unit version | Bearing diameter 26 mm |
| External gear unit function | Pump |
| Weight | 10.000 |
| Max. flow | 89.6 |
