BOSCH REXROTH
9510390009
$694.00
- BOSCH REXROTH
- Material:9510390009
- Model:AZPN-12-025LDC12MB-S0040 GO2
Quantity in stock: 4
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

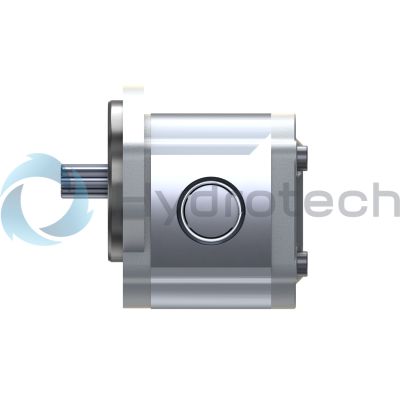

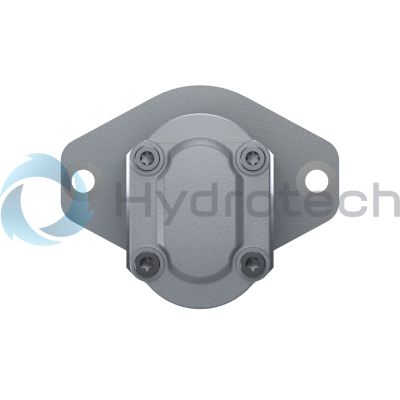

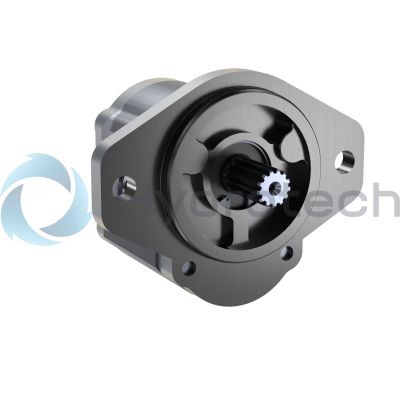

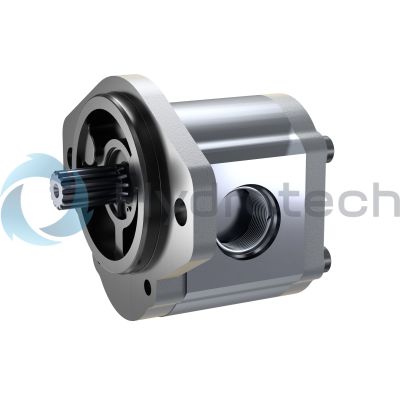

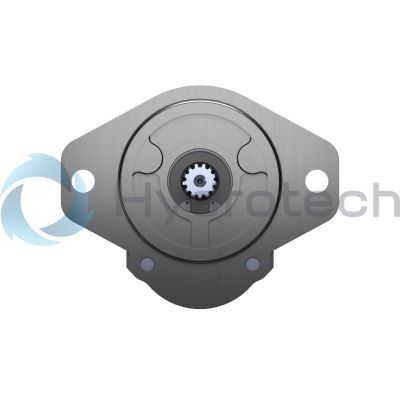

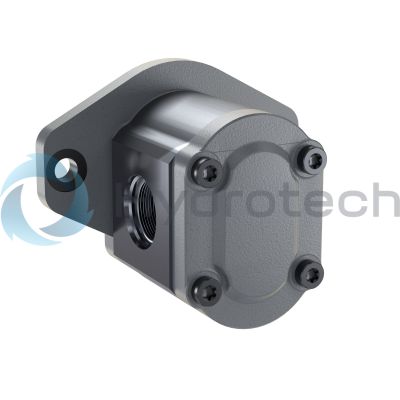

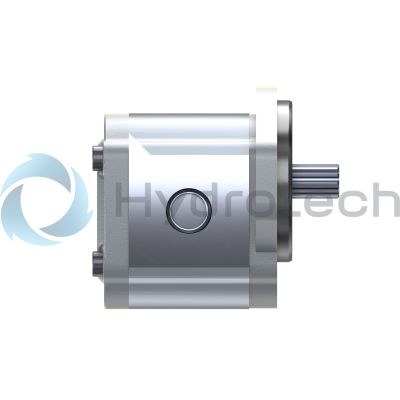

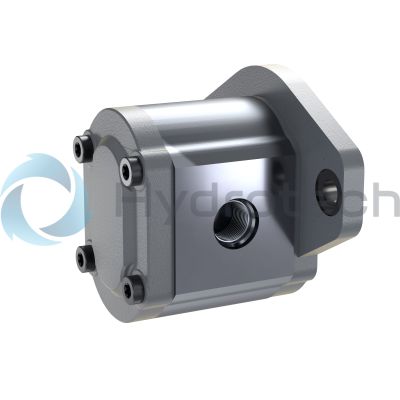

The Bosch Rexroth AZPN-12-025LDC12MB-S0040 (9510390009) is an external gear pump designed with precision to ensure high efficiency and performance in hydraulic systems. This particular model features a counter-clockwise rotation and a spline shaft that adheres to SAE J T DP standards, guaranteeing compatibility with a wide range of equipment. It is equipped with an SAE J B bolt flange for secure mounting and utilizes UN thread and SAE O-ring ports for reliable connections. Constructed from durable aluminum, the pump's housing is both lightweight and corrosion-resistant, making it suitable for various applications while ensuring a long service life. The unit's design incorporates slide bearings that can withstand high loads, enhancing its durability and operational stability. With its high-quality standards derived from large-volume production, this pump delivers consistent performance across numerous hydraulic tasks. The AZPN-12-025LDC12MB-S0040 pump has a geometric displacement size that contributes to its maximum flow rate of . liters per minute. It operates within a standard noise level range, ensuring minimal disruption in the workplace. The sealing material used is NBR (nitrile butadiene rubber), which provides excellent resistance against oils and other hydraulic fluids. This model from Bosch Rexroth also features pressure-dependent gap sealing technology, which minimizes heat losses during operation—a crucial factor for maintaining efficiency in hydraulic systems. With its maximum intermittent pressure capacity and standard rotational speed limit, the pump is engineered to meet the demands of general external gear unit applications without compromising on reliability or quality.
The Bosch Rexroth AZPN-12-025LDC12MB-S0040 (9510390009) is an external gear pump designed with precision to ensure high efficiency and performance in hydraulic systems. This particular model features a counter-clockwise rotation and a spline shaft that adheres to SAE J T DP standards, guaranteeing compatibility with a wide range of equipment. It is equipped with an SAE J B bolt flange for secure mounting and utilizes UN thread and SAE O-ring ports for reliable connections. Constructed from durable aluminum, the pump's housing is both lightweight and corrosion-resistant, making it suitable for various applications while ensuring a long service life. The unit's design incorporates slide bearings that can withstand high loads, enhancing its durability and operational stability. With its high-quality standards derived from large-volume production, this pump delivers consistent performance across numerous hydraulic tasks. The AZPN-12-025LDC12MB-S0040 pump has a geometric displacement size that contributes to its maximum flow rate of . liters per minute. It operates within a standard noise level range, ensuring minimal disruption in the workplace. The sealing material used is NBR (nitrile butadiene rubber), which provides excellent resistance against oils and other hydraulic fluids. This model from Bosch Rexroth also features pressure-dependent gap sealing technology, which minimizes heat losses during operation—a crucial factor for maintaining efficiency in hydraulic systems. With its maximum intermittent pressure capacity and standard rotational speed limit, the pump is engineered to meet the demands of general external gear unit applications without compromising on reliability or quality.
25 cm³/rev, Counter clockwise rotation, Spline shaft SAE J744 22-4 (13T 16/32DP), SAE J744 101-2 (B) 2-bolt flange, Thread UN-2B, SAE O-ring
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Unpacked Weight: 5.52 kg
| Long service life |
| Drive shafts according to ISO or SAE and customer specific solutions |
| Port connections: flanged or threaded |
| Slide bearings for high loads |
| Consistent high quality based on large-volume production |
| Offer Drawing | Download Offer Drawing |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Rear cover | Standard |
| Maximum rotational speed | 3000 |
| Productgroup ID | 7,21,22,23,24,25 |
| Size (geometric displacement) | 25 |
| Sealing material | NBR |
| Version | Corrosion resistant, pinned |
| Special version | Deviations from catalogue standards, see drawing |
| Noise level | Standard noise level |
| External gear unit | External Gear Unit |
| Application | general |
| Drive shaft | Spline shaft SAE J744 22-4 (13T 16/32DP) |
| Housing material | Aluminum |
| Line connection | Thread UN-2B, SAE O-ring |
| Series | Model N (20 ... 36 cm³/rev) |
| Front cover | SAE J744 101-2 (B) 2-bolt flange |
| Maximum intermittent pressure | 210 |
| Direction of rotation | Counter clockwise rotation |
| Unit version | Housing width 110 mm |
| External gear unit function | Pump |
| Weight | 5.52 |
| Max. flow | 75.0 |
