BOSCH REXROTH
9510290015
$542.00 USD
- BOSCH REXROTH
- Material:9510290015
- Model:AZPF-12-004RRR12MB GO2
Quantity in stock: 8
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

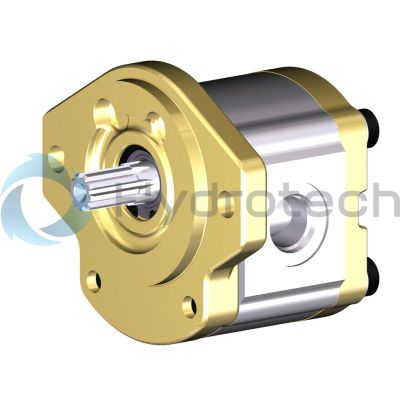

The Bosch Rexroth AZPF-12-004RRR12MB (9510290015) is an external gear pump designed to efficiently convert mechanical energy into hydraulic energy with minimal heat loss. This unit features a clockwise rotation and utilizes a spline shaft conforming to SAE J T DP standards, ensuring compatibility with a range of drive systems. The pump's robust construction includes a front cover with an SAE J A bolt flange and line connections that accommodate Thread UNB and SAE O-ring fittings, offering secure and leak-proof operation. With its high-precision manufacturing technology, the AZPF-12-004RRR12MB achieves high efficiencies through pressure-dependent gap sealing. This model is equipped with slide bearings capable of handling high loads, contributing to the pump's longevity. The rear cover is crafted from standard cast iron, while the housing material is made from durable aluminum, providing a sturdy yet lightweight design. This gear pump boasts a maximum rotational speed capacity and features flanged or threaded port connections for versatile installation options. The sealing material used is NBR, which offers good resistance to various hydraulic fluids. Additionally, this version is corrosion-resistant and pinned for enhanced durability in challenging environments. The Bosch Rexroth AZPF series ensures consistent quality due to large-volume production practices. With its standard noise level operations, it remains unobtrusive in various settings. This particular model has a geometric displacement size and can handle a maximum intermittent pressure rating. Weighing in at , it can deliver a max flow rate of . l/min, making it suitable for general application purposes where reliable hydraulic power is required.
The Bosch Rexroth AZPF-12-004RRR12MB (9510290015) is an external gear pump designed to efficiently convert mechanical energy into hydraulic energy with minimal heat loss. This unit features a clockwise rotation and utilizes a spline shaft conforming to SAE J T DP standards, ensuring compatibility with a range of drive systems. The pump's robust construction includes a front cover with an SAE J A bolt flange and line connections that accommodate Thread UNB and SAE O-ring fittings, offering secure and leak-proof operation. With its high-precision manufacturing technology, the AZPF-12-004RRR12MB achieves high efficiencies through pressure-dependent gap sealing. This model is equipped with slide bearings capable of handling high loads, contributing to the pump's longevity. The rear cover is crafted from standard cast iron, while the housing material is made from durable aluminum, providing a sturdy yet lightweight design. This gear pump boasts a maximum rotational speed capacity and features flanged or threaded port connections for versatile installation options. The sealing material used is NBR, which offers good resistance to various hydraulic fluids. Additionally, this version is corrosion-resistant and pinned for enhanced durability in challenging environments. The Bosch Rexroth AZPF series ensures consistent quality due to large-volume production practices. With its standard noise level operations, it remains unobtrusive in various settings. This particular model has a geometric displacement size and can handle a maximum intermittent pressure rating. Weighing in at , it can deliver a max flow rate of . l/min, making it suitable for general application purposes where reliable hydraulic power is required.
4 cm³/rev, Clockwise rotation, Spline shaft SAE J744 16-4 (9T 16/32DP) , SAE J744 82-2 (A) 2-bolt flange, Thread UN-2B, SAE O-ring
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Unpacked Weight: 3.28 kg
| Consistent high quality based on large-volume production |
| Slide bearings for high loads |
| Port connections: flanged or threaded |
| Drive shafts according to ISO or SAE and customer specific solutions |
| Long service life |
| Offer Drawing | Download Offer Drawing |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Rear cover | Standard (cast iron) |
| Maximum rotational speed | 4000 |
| Productgroup ID | 7,21,22,23,24,25 |
| Size (geometric displacement) | 4 |
| Sealing material | NBR |
| Version | Corrosion resistant, pinned |
| Noise level | Standard noise level |
| External gear unit | External Gear Unit |
| Application | general |
| Drive shaft | Spline shaft SAE J744 16-4 (9T 16/32DP) |
| Housing material | Aluminum |
| Line connection | Thread UN-2B, SAE O-ring |
| Series | Model F (4 ... 28 cm³/rev) |
| Front cover | SAE J744 82-2 (A) 2-bolt flange |
| Maximum intermittent pressure | 210 |
| Direction of rotation | Clockwise rotation |
| Unit version | Bearing diameter 18mm |
| External gear unit function | Pump |
| Weight | 3.28 |
| Max. flow | 16.0 |
