BOSCH REXROTH
8981535323
$49.70
- BOSCH REXROTH
- Material:8981535323
- Model:CARRIAGE ECOSLIDE 45X45X 80
Quantity in stock: 4

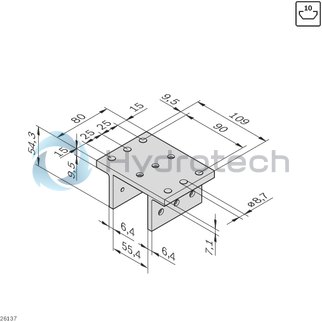

EcoSlide trolley 45x45x80
Unpacked Weight: 0.306 kg
Machining tip
To install the clamping lever, the corresponding 9 mm hole must be drilled in the trolley.
| Economical linear sliding carriage for horizontal applications |
| Runs on sliders for maximal load capacity |
| Slider with low moisture absorption, suitable for rough usage conditions |
| Available for profile widths of 30/45/60/90 |
| Clamping lever (optional) for arresting in any position |
| Easy to assemble |
| Spacer washer for tolerance adjustment (carriage/profile) |
| For use with profile width 45 mm |
| Maximum sliding speed: 12 m/min |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Packaging unit | 1 |
| Torque around x axis [Mmax] | 40 |
| Dimensions | 45x45x80 |
| Torque around z axis [Mmax] | 150 |
| Compression load [Fmax] | 1250 |
| Tensile load [Fmax] | 625 |
| Maximum sliding speed | 12 |
| Material | Aluminum, anodized |
| Weight | 0.306 |
| Recommended accessories | N10 flat slider and flat lockable,Spacer washer,Screw W...,Clamping lever,N10 sliding block |
| Profile slot | 10 |
|
|
|
|
|
1250 N |
625 N |
40 Nm |
150 Nm |
EcoSlide trolley 45x45x80
