BOSCH REXROTH
SWITCH BRACKET
3842557602

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

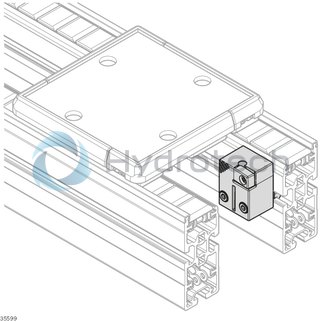

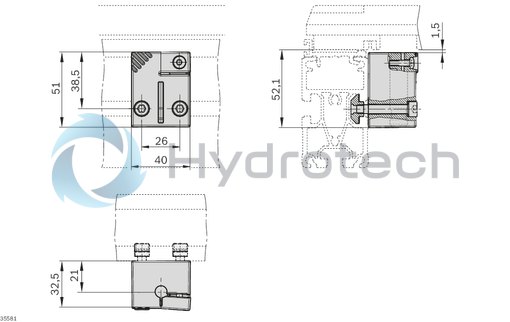

The Bosch Rexroth SWITCH BRACKET SH 2/U (3842557602) is a versatile component designed for securing a sensor within the internal groove of a conveyor section. This bracket is particularly adept at detecting the position of workpiece pallets from beneath or can be utilized in conjunction with the WI rocker. Featuring an inspection window, the operating state of the sensor is easily observable, ensuring seamless monitoring. Constructed from durable polyamide (PA) material, this switch bracket promises longevity and resistance to wear and tear in industrial settings. The design facilitates straightforward and rapid sensor installation and replacement without necessitating any adjustments, thanks to its flush installation capability with a predefined sensing range. It is compatible with ST sections measuring mm in profile width or ST H sections of mm profile width, providing flexibility for various conveyor setups. The maintenance process is streamlined with the inclusion of a separate clamping screw that allows for quick sensor exchanges while keeping the bracket securely in place. The product package comes inclusive of all necessary fastening materials, although it is delivered unassembled. To function optimally, this bracket requires an Mx sensor with an SsubNsub mm and L mmbrcan be installed either flush or non-flush based on specific requirements. With its sleek black coloration, the SWITCH BRACKET SH 2/U blends seamlessly into industrial environments while offering robust support and easy access for sensor-related tasks. Its well-thought-out design ensures that users can rely on consistent performance and ease of use within their conveyor systems.
