BOSCH REXROTH
90X90,STRUT
3842553613
Enter strut length
*between 50 and 2743 mm$3,715.29 USD
- BOSCH REXROTH
- Material:3842553613
- Model:STRUT PROFILE 90X90L 6X6070MM
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth STRUT PROFILE 90X90L 6X6070MM (3842553613) is a high-quality aluminum anodized strut profile designed for versatile applications. With its 90x90L dimensions and a length of 6070mm, this product offers a robust framework for constructing modular systems. The open slots allow for flexible assembly and the use of various fittings and accessories. Its natural color provides a professional appearance, suitable for visible structures. This strut profile is part of the standard profile range with a modular dimension that ensures compatibility with other components in the system. The product's cross-section and torsional moment of inertia It contribute to its strength and stability when under load, making it ideal for supporting structures. The moment of resistance in the y-direction Wy, area moment of inertia in y-direction ly, and in x-direction lx are indicative of the profile's ability to resist bending and torsion. With its ESD compliance, this product is also suitable for use in environments where electrostatic discharge can be an issue, such as electronics manufacturing or assembly areas. The mass m specification denotes the weight of the profile which is important for determining load capacities and handling requirements. Recommended accessories include cover caps in black or signal gray which can be used to finish off the ends of the profiles neatly. These caps not only improve aesthetics but also protect against dust accumulation inside the profiles. Overall, the Bosch Rexroth STRUT PROFILE 90X90L is engineered for durability, versatility, and ease of use in constructing reliable frameworks for various applications without compromising on quality or performance.
The Bosch Rexroth STRUT PROFILE 90X90L 6X6070MM (3842553613) is a high-quality aluminum anodized strut profile designed for versatile applications. With its 90x90L dimensions and a length of 6070mm, this product offers a robust framework for constructing modular systems. The open slots allow for flexible assembly and the use of various fittings and accessories. Its natural color provides a professional appearance, suitable for visible structures. This strut profile is part of the standard profile range with a modular dimension that ensures compatibility with other components in the system. The product's cross-section and torsional moment of inertia It contribute to its strength and stability when under load, making it ideal for supporting structures. The moment of resistance in the y-direction Wy, area moment of inertia in y-direction ly, and in x-direction lx are indicative of the profile's ability to resist bending and torsion. With its ESD compliance, this product is also suitable for use in environments where electrostatic discharge can be an issue, such as electronics manufacturing or assembly areas. The mass m specification denotes the weight of the profile which is important for determining load capacities and handling requirements. Recommended accessories include cover caps in black or signal gray which can be used to finish off the ends of the profiles neatly. These caps not only improve aesthetics but also protect against dust accumulation inside the profiles. Overall, the Bosch Rexroth STRUT PROFILE 90X90L is engineered for durability, versatility, and ease of use in constructing reliable frameworks for various applications without compromising on quality or performance.

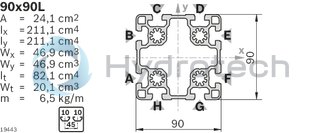

Strut profile 90x90L, 6xL=6070mm
Unpacked Weight: 256 kg
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Open slots | 8 |
| Condition on delivery | Packaging unit in standard length |
| Profile surface [A] | 24.1 |
| Productgroup ID | 2 |
| Moment of resistance in the y-direction [Wy] | 46.9 |
| Area moment of inertia in y-direction [ly] | 211.1 |
| Cross-section | 90x90L |
| Torsional moment of inertia [It] | 82.1 |
| Moment of resistance in the x-direction [Wx] | 46.9 |
| Delivery unit | 6 |
| Mass [m] | 6.5 |
| ESD | yes |
| Length [L] | 6070 |
| Area moment of inertia in x-direction [lx] | 211.1 |
| Dimensions | 90x90 |
| Modular dimension | 45 |
| Moment of torsion resistance [Wt] | 20.1 |
| Material | Aluminum, anodized |
| Weight | 256 |
| Profile adaption | M12: in all core holes,D17: in slots C/H, D/G,D17V: in slots A/F, B/E,LF: in slots C/H, D/G |
| Recommended accessories | Cover cap 90x90L, black,Cover cap 90x90L, signal gray |
| Color | Natural |
| Profile type | Standard |
| Profile slot | 10 |
Strut profile 90x90L
