BOSCH REXROTH
3842553451
$1,090.36 USD
- BOSCH REXROTH
- Material:3842553451
- Model:COMMUNICAT.MODUL 8400MOTEC ETHERNET/IP
Quantity in stock: 0
The Bosch Rexroth COMMUNICAT.MODUL 8400MOTEC ETHERNET/IP (3842553451) is a state-of-the-art communication module designed for seamless integration with gear motors and frequency converters. This module is part of a complete frequency converter system that enables adjustable speed control of gear motors. It boasts a modular design, ensuring easy mounting on leg sets and straightforward cable connection to the motor. The COMMUNICAT.MODUL 8400MOTEC ETHERNET/IP is specifically tailored for controlling the frequency converter, which is essential in adjusting the motor's speed. The power unit of the frequency converter can handle a connection power of up to . kW, making it suitable for various industrial applications. The communication module includes standard cable connection options and requires user wiring for internal and external voltage supplies. Additionally, this product offers an easy commissioning process via a handheld terminal and features a large LED status display. The memory module within the system is effortlessly replaceable, adding to the convenience during maintenance or upgrades. When it comes to speed range, this frequency converter adapts to the base speed of the gear motor used, with permissible speed ranges specified in m/min. However, users should note that exceeding base speeds may result in reduced power output. For installation, the attachment kit D facilitates simple mounting onto AL section support slots with either 8 or 10 strut profiles. If required, there's also the option of using connection cable E for creating a pluggable link between the gear motor and the frequency converter. In summary, Bosch Rexroth's COMMUNICAT.MODUL 8400MOTEC ETHERNET/IP offers robust control options for gear motors through its advanced communication capabilities and modular design. Its compatibility with various connection units and attachment kits ensures that it can be customized to meet specific operational requirements while maintaining high standards of efficiency and reliability.
Communication module EtherNet/IP
Unpacked Weight: 0.9 kg
In order to operate a gear motor with adjustable speed, the motor needs to be retrofitted with a frequency converter (FU). The frequency converter has a modular design so that it can be easily mounted on a leg set and connected to the motor by cable.
Connection power: 0.55 kW (connection voltage: 400 V ± 10 % … 460 V/480 V ± 10 %) Speed (vN) depending on the base speed of the gear motor used Permissible speed range: 2 … 21 m/minComplete frequency converter
Complete frequency converter consisting of the modules

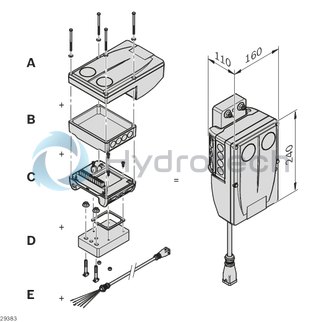

Frequency converter power unit (A) Communication module (B) Connection unit (C) Attachment kit (D) Optional: Connection cable (E) for the pluggable connection to the gear motor (AT = S)
The individual modules can be ordered separately and are easy to connect with the screws supplied with the scope of delivery. For the internal and external voltage supply, the modules must be wired by the user.
Frequency converter power unit (A)
Frequency converter (A)
Power unit: 0.55 kW
(400 V ± 10 % … 460 V/480 V ± 10 %)
Easy commissioning via hand-held terminal Easy to replace memory module Large LED as status display
The speed range of the frequency converter is based on the base speed of the motor (by accepting a resulting loss of power, a higher bandwidth can be covered).
Frequency converter speed range
|
Base speed of motor at 50 Hz |
Min |
Max |
Max |
|
(m/min) |
(m/min) |
(m/min) |
(m/min) |
|
4 |
21) |
4,5 |
6 |
|
6 |
21) |
6 |
8 |
|
9 |
3,5 |
10 |
13 |
|
12 |
4 |
13 |
17 |
|
15 |
5 |
15 |
20 |
|
18 |
6 |
18,5 |
25 |
| 1) | Additional measures may be necessary |
Communication module (B)
Communication module (B)
For controlling the frequency converter Cable connection options
Depending on their function, the individual communication modules are provided with the corresponding connections as standard.
Connection unit (C)
Connection unit (C)
Power grid connection optionsAttachment kit (D)
Attachment kit (D)
For the simple attachment of the frequency converter to the AL section support (slot/s with a 60 or 80 strut profile)Connection cable (E) for the plug-in connection to the gear motor
Connection cable (E)
For connecting the gear motor with the frequency converter (length: 1 m) For the drive kit AT = S (direct wiring with AT = K)Attachment options for the gear motor
Customer-specific motor
Attachment options for the gear motor
Standard
| Modular design |
| Easy mounting on leg sets |
| Connection to the motor by cable |
| Frequency converter (A): Power unit: 0.55 kW |
| Communication module (B): To control the frequency converter |
| Connection unit (C): For power grid connection options |
| Attachment kit (D): For easy mounting on the leg set |
| Connection cable (E): To connect the gear motor to the frequency converter |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Weight | 0.9 |
|
No. |
| 3842553447 |
| 3842553449 |
| 3842553453 |
| 3842553454 |
| 3842553451 |
| 3842553459 |
| 3842553452 |
| 3842553450 |
| 3842553445 |
| 3842553457 |
| 3842553512 |
Frequency Converter (FU) accessories
Frequency Converter (FU) accessories
Manual control unit Switch /potentiometer unitCondition of Delivery
| Power unit 0.55 kW |
| Communication module standard I/O |
| Communication module AS-I |
| Communication module CANopen |
| Communication module EtherNet/IP |
| Communication module EtherCAT |
| Communication module PROFIBUS |
| Communication module PROFINET |
| Connection unit |
| Attachment kit |
| FU connecting cable |
Scope of delivery
| Power unit 0.55 kW |
| Communication module standard I/O |
| Communication module AS-I |
| Communication module CANopen |
| Communication module EtherNet/IP |
| Communication module EtherCAT |
| Communication module PROFIBUS |
| Communication module PROFINET |
| Connection unit |
| Attachment kit |
| FU connecting cable |
