Material:3842553032
Model:CAM WHEEL 65+ AL 180

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL 65+ AL 180° ESD (3842553032) is a sophisticated component designed to facilitate smooth and efficient directional changes in conveyor systems. This curve wheel is engineered to provide a horizontal change in direction for the conveyor chain with minimal friction and very small radii, ensuring that the flow of materials within a system remains uninterrupted and efficient. The CAM WHEEL's design avoids any interfering contours above the chain plate height, which contributes to a streamlined operation. The product is made from durable materials, including a diecast aluminum housing, a PA ESD black chain wheel, and non-rusting steel for the ball bearings. It is designed to be ESD-safe (Electrostatic Discharge), making it suitable for environments where static electricity could pose risks to products or equipment. The effective sliding rail length and actual chain length can be customized as per requirements, with additional versions available upon request through Bosch Rexroth's modification department. This model comes fully assembled and includes fastening material for mounting onto AL section profiles. The delivery scope ensures that users have everything needed for immediate installation and integration into their systems. With its FDA compliance, the CAM WHEEL 65+ AL 180° ESD is also suitable for applications that demand adherence to rigorous health and safety standards. In summary, the Bosch Rexroth CAM WHEEL 65+ AL 180° ESD (3842553032) stands out as an essential component for conveyor systems requiring precise deflection angles without compromising on space or efficiency. Its robust construction paired with its ESD compliance makes it a versatile solution for various applications needing safe and reliable material handling.

Curve wheel AL ESD VFplus 65 180°

Unpacked Weight: 4.6 kg

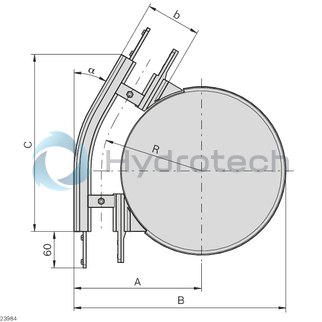

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain. It enables low-friction direction changes with very small radii.

For attachment options, see the matrix

Size: 65, 90 See table for the deflection angles, more deflection angles available on request Suitable chain type: ESD conveyor chain For circuit systems without conveyor chain return in bottom run (using a curve wheel or connection drive), the appropriate cover must be used for personal safety reasons With conductive wheel

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain
It enables low-friction direction changes with very small radii
No interfering contours above chain plate height

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	2x 0,82
Actual chain length	2x 0,68
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
ESD	yes
Weight	4.6
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Size [b]	65
Dimension [A]	185.5
Material information	Housing: Diecast aluminum,Chain wheel: PA ESD, black,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves		Drives			Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel ESD	Vertical curve	Head drive (STS)	Connection drive (STS)	Center drive (STS)**	Base unit (STS)	90° (STS)**
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel ESD	J	J	L2)	L2)
Curves	Vertical curve	J	J	L2)	L2)	L1)
Drives	Head drive (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N
	Connection drive (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	N	N	N
Return Unit	Base unit (STS)	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	L2)	N	L2)	L2, 3)
Return Unit	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	L1, 5)	L2)	L2)	N	N	L2)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
