BOSCH REXROTH
3842552900
$2,881.67 USD
- BOSCH REXROTH
- Material:3842552900
- Model:TRANSMISSION DRIVE VF+ TRANSMISSION KIT
Quantity in stock: 0
The Bosch Rexroth TRANSMISSION DRIVE VF+ TRANSMISSION KIT (3842552900) is a meticulously designed transmission kit that includes components made of high-quality, non-rusting steel and a rubber compound belt. It is engineered to facilitate the installation of the drive kit on either the right or left motor side, ensuring versatility and ease of use. The kit's ball bearings are sealed on both sides and filled with FDA-compliant grease, enhancing the durability and suitability for applications requiring hygienic conditions. This transmission drive kit is distinguished by its quiet operation, attributed to the toothed belt mechanism it employs for power transmission. The product group ID and weight are specified, along with a comprehensive scope of delivery that includes all necessary fastening materials. Customers will receive this as a fully assembled package, ensuring convenience and efficiency during installation. The side plates of this transmission kit are constructed from non-rusting steel, while the connecting parts are made from aluminum. The cover is crafted from ABS material, contributing to the overall robustness and reliability of the system. This kit is specifically designed for AL systems in sizes 2, 3, 4, and 5. It has a maximum permissible chain tensile force of Fmax 1250 N but requires support as it's not suitable for wet operations or cleaning processes. Ideal for situations where space constraints prevent direct mounting on the basic unit, this transmission drive kit offers flexibility by allowing later conversion to a transmission drive with variable mounting positions. The transition from basic units such as head drive, connection drive, or closed head drive to a transmission drive can be achieved swiftly with this comprehensive solution. However, it should be noted that mounting on STS versions will need to be requested specifically due to customization requirements.
Transmission kit VFplus
Unpacked Weight: 12 kg
If the available space is not sufficient for mounting the drive kit directly on the basic unit, the transmission kit also enables conversion to a transmission drive at a later date. The basic units head drive, connection drive and closed head drive are quickly turned into a transmission drive with variable mounting position with the transmission kit and drive kit.
Only for AL systems Sizes 65, 90, 120 Permissible chain tensile force: Fmax = 1250 N Support required Not suitable for wet operation/cleaning Mounting on STS version on request| Installation of the drive kit possible on the right/left (motor, coupling, flange) |
| Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling |
| Very quiet, as transmission takes place through toothed belt |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Weight | 12 |
| Scope of delivery | Incl. fastening material |
| Delivery information | Fully assembled |
| Size [b] | 65,90,120,160,240,320 |
| Material information | Side plate: Non-rusting steel 1.4301,Belt: rubber compound,Cover: ABS,Connecting parts: Aluminum |
| Preferred values | 65,90,120 |
|
Material |
|
| Transmission kit VFplus |
Side plate: stainless steel Belt: rubber compound Cover: ABS Connecting parts: aluminum |
Combination matrix
|
Straight |
Curves |
Drives |
Return Unit |
||||||||||||
|
Section profile AL open |
Section profile AL closed |
Assembly module |
Curve wheel |
Roller curve* |
Horizontal sliding curve |
Vertical curve |
Head drive |
Curve wheel drive |
Connection drive |
Center drive (STS)** |
Basic unit |
90° (STS)** |
Transmission kit |
||
|
Straight |
Section profile AL open |
J |
|||||||||||||
|
Section profile AL closed |
J |
J |
|||||||||||||
|
Assembly module |
J |
J |
N |
||||||||||||
|
Curves |
Curve wheel |
J |
J |
L2) |
L2) |
||||||||||
|
Roller curve* |
J |
N |
J |
N |
L1) |
||||||||||
|
Horizontal sliding curve |
J |
J |
J |
J |
N |
L1) |
|||||||||
|
Vertical curve |
J |
J |
J |
J |
L1) |
L1) |
L1) |
||||||||
|
Drives |
Head drive |
J |
J |
L2) |
L2) |
L1, 4) |
L1) |
L1, 4) |
N |
||||||
|
Curve wheel drive |
J |
J |
L2) |
L2) |
N |
L1) |
L1) |
N |
N |
||||||
|
Connection drive |
J |
J |
L2) |
L2) |
N |
L1) |
L1) |
N |
N |
N |
|||||
|
Center drive (STS)** |
L5) |
L5) |
L2, 5) |
L2, 5) |
N |
L1, 5) |
L1, 5) |
N |
N |
N |
N |
||||
|
Return Unit |
Basic unit |
J |
J |
L2) |
L2) |
L1, 4) |
L1) |
L1, 4) |
L2) |
N |
N |
L2, 3) |
L2, 3) |
||
|
90° (STS)** |
L5) |
L5) |
L2, 5) |
L2, 5) |
N |
L1, 5) |
L1, 5) |
N |
N |
L2, 5) |
N |
N |
L2) |
||
|
Transmission kit |
N |
N |
N |
N |
N |
N |
N |
J |
N |
J |
N |
J |
N |
N |
|
|
J |
possible without restrictions |
* Support profile must project 76+2 mm into the roller curve. |
|||||||||||||
|
L |
possible with restrictions |
** AL-STS adapter included in the scope of delivery. |
|||||||||||||
|
N |
not possible |
||||||||||||||
| 1) | Profile connector not required |
| 2) | Use of a profile piece (Lmin = 120 mm) |
| 3) | Assembly module required |
| 4) | For sizes 160-320: shorten the support rail on the dotted line |
| 5) | Use of the AL-STS adapter |

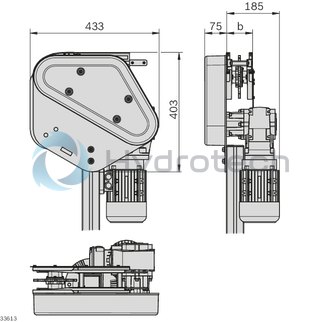

Transmission kit
|
No. |
b |
| 3842552900 | 65, 90, 120 |

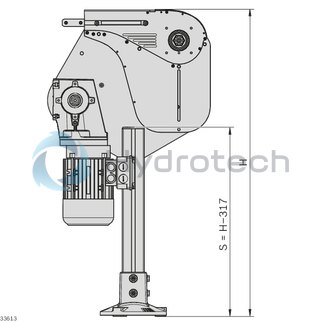

Transmission kit, specifications about support height
H = Transport height (top edge of chain)S = Support height
L = Profile length (L = S - 15)
Motor support
The support is mounted on the inside (below the chain).
Note: The motor must be mounted so that there are no collisions with the support.
Note: High-pressure cleaning of the ball bearings is not permitted.
Condition of Delivery
| Fully assembled |
Scope of delivery
| Incl. fastening material |
