3842549812
$82.95 USD
- BOSCH REXROTH
- Material:3842549812
- Model:PROXIMITY SWITCH M12-M8 SN=4MM L=67
Quantity in stock: 0
The Bosch Rexroth PROXIMITY SWITCH M12-M8 (3842549812) is a high-precision sensor designed for detecting the position of workpiece pallets as well as for position sensing in various industrial applications, including lift transverse units, lift positioning units, and lift rotate units. This model features an M12 thread size with an M8 push-in fitting, offering easy installation and secure mounting. It operates on a DC voltage with a nominal switching distance (Sn) of 4mm and has a length (L) of 67mm. The proximity switch is equipped with a normally open NO switching function, ensuring reliable operation within its specified ambient temperature range. The sensor can be mechanically installed flush to the surface, which makes it suitable for integration into various systems without protruding elements that could disrupt operations or cause damage. For clear indication of its status, the switch includes an LED function display. It also boasts a PNP switching output and supports a high switching frequency. The protection class IP rating ensures that the sensor is safeguarded against ingress from dust and moisture, contributing to its robustness and longevity in challenging environments. Ensuring safe operation, this model conforms to IEC standards and requires specific accessories like the Switch Bracket for optimal functionality. The housing is made from CuZn with a nickel-free coating while the active surface is composed of LCP (Liquid Crystal Polymer), which provides durability and resistance to environmental factors. This proximity switch also complies with international conformity standards such as cULus, CE, and EAC. Designed for precise detection tasks within automation systems, the Bosch Rexroth PROXIMITY SWITCH M12-M8 is an essential component for maintaining efficiency and accuracy in automated processes where position sensing is critical.

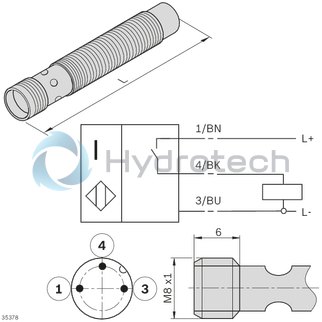

M12x67 sensor
Unpacked Weight: 0.03 kg
Detection of the position of a workpiece pallet, position sensing for lift transverse units, lift positioning units and lift rotate units.
Sensor application matrix
|
|
Diameter with push-in fitting |
Sensor |
|||||
|
|
M12 with M12 |
3842557633 |
3842501548 |
3842549814 |
3842558990 |
3842559541 ¹) |
|
|
|
M12 with M8 |
3842549813 |
3842549812 |
3842549811 |
|
|
|
|
|
M8 with M8 |
|
|
|
|
|
3842551761 |
|
Position inquiry |
AS 2/C-100, AS 2/C-250 |
X |
|||||
|
AS 2/C-400, AS 2/C-700 |
X |
||||||
|
AS 2/R-300, AS 2/R-700 |
X |
||||||
|
AS 2/R-1200, AS 2/R-2200 |
X |
||||||
|
AS 2/R-V-1200, AS 2/R-V-2200 |
X |
||||||
|
BS 2/R-300, BS 2/R-700 |
X |
||||||
|
BS 2/C-100, BS 2/C-250 |
X |
||||||
|
BS 2/R-H |
X |
||||||
|
BS 2/R-V-1200 |
X |
||||||
|
BS 2/C-H |
X |
||||||
|
CS/C |
X |
||||||
|
EQ 2/TR |
X |
||||||
|
EQ 2/TR-90 |
X |
||||||
|
EQ 2/T |
X |
||||||
|
EQ 2/TE |
X |
||||||
|
HQ 2/S |
X |
||||||
|
HQ 2/O |
X |
||||||
|
HQ 2/T |
X |
||||||
|
HQ 2/U |
X |
||||||
|
HQ 2/U2 |
X |
||||||
|
HQ 2/U-H |
X |
||||||
|
HQ 2/C-H |
X |
||||||
|
HQ 2/G-H |
X |
||||||
|
HD 2 |
X |
||||||
|
HD 2/H |
X |
||||||
|
KU 2/... |
X |
||||||
|
PE 2 |
X |
||||||
|
PE 2/X, PE 2/H, PE 2/XP |
X |
||||||
|
HP 2/L |
X |
||||||
|
HP 2 |
X |
||||||
|
VE 2 position inquiry |
X |
||||||
|
VA 2/D-130 |
X |
||||||
|
WT position inquiry |
SH 2/S |
X |
|||||
|
SH 2/ST |
X |
||||||
|
SH 2/S-H |
X |
||||||
|
SH 2/U |
X |
||||||
|
SH 2/UV |
X |
||||||
|
SH 2/U-H |
X |
||||||
|
SH 2/EP |
X |
||||||
|
WI/M |
X |
||||||
|
WI 2 (horizontal installation) |
X |
||||||
|
WI 2 (vertical installation) |
X |
||||||
|
WI 2/H (horizontal installation) |
X |
||||||
|
WI 2/H (vertical installation) |
X |
||||||
|
WI 2/D (horizontal installation) |
X |
||||||
|
WI 2/D (vertical installation) |
X |
||||||
|
HQ 2/U-H |
X |
||||||
|
¹) Nur für horizontalen Einbau bei den Wippen WI 2, WI 2/H und WI 2/D |
|||||||
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Thread size | M12 x 67 |
| Switching function | Normally open (NO) |
| Operating voltage DC | 10 ... 30 |
| Ambient temperature [T] | -25 ... +70 °C |
| Push-in fitting | M8x1 |
| Nominal switching distance [Sn] | 4 |
| Length [L] | 67 |
| Switching frequency | 2500 |
| Protection class | IP67 |
| Operating current | 200 |
| Mechanical installation | Flush |
| Function display | LED |
| Switching output | PNP |
| Weight | 0.03 |
| Notice | IEC 60947-5-2 |
| Required accessories | Switch Bracket |
| Material information | Housing: CuZn, nickel-free coating,Active surface: LCP |
| Conformity | cULus,CE,EAC |
|
No. |
3842549813 | 3842549812 | 3842549811 | |
|
Dimension |
mm |
M12x44 | M12x67 | M12x44 |
|
Protection type |
IP67 | IP67 | IP67 | |
|
Material entry |
Housing: CuZn; nickel-free coating Active surface: PBT |
Housing: CuZn; nickel-free coating Active surface: LCP |
Housing: CuZn; nickel-free coating Active surface: LCP |
|
|
Max. operating temperature |
°C |
-25 ... +70 | -25 ... +70 | -25 ... +70 |
|
Push-in fitting |
M8x1 | M8x1 | M8x1 | |
|
Overall length |
mm |
44 | 67 | 44 |
|
Rated sensing range |
mm |
8 | 4 | 4 |
|
Switching frequency |
Hz |
800 | 2500 | 2500 |
|
Operating current |
mA |
200 | 200 | 200 |
|
Mechanical installation |
Not flush | Flush | Flush | |
|
Function display |
LED | LED | LED | |
|
Switching output |
PNP | PNP | PNP | |
|
Switching function |
Normally open (NO) | Normally open (NO) | Normally open (NO) | |
|
Operating voltage |
V DC |
10 … 30 | 10 … 30 | 10 … 30 |
|
Approvals |
cULus, CE, EAC | cULus, CE, EAC | cULus, CE, EAC | |
|
Standard conformity |
IEC 60947-5-2 | IEC 60947-5-2 | IEC 60947-5-2 |
