BOSCH REXROTH
3842549018
$1,273.88 USD
- BOSCH REXROTH
- Material:3842549018
- Model:CONNECTING KIT 160+ BRIDGE PASS
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CONNECTING KIT 160+ BRIDGE PASS (3842549018) is an essential component designed for efficient material handling in conveyor systems. This connection kit includes a passive bridge, which serves as a transfer unit between the basic unit and the return unit or can be used in conjunction with the connection drive to span conveyor trenches. The kit is specifically engineered for use with flat conveyor chains and static friction chains, ensuring compatibility with dimensionally stable products that have an even transport surface. The passive bridge facilitates the smooth transition of goods by utilizing passive rollers, making it suitable for items that are at least approximately mm in length. The height adjustment feature provides flexibility, allowing for approximately mm of vertical modification to accommodate various product sizes. This feature ensures that a wide range of goods can be conveyed efficiently across the bridging point. Crafted from high-quality, non-rusting steel and POM, the connecting kit is durable and designed to withstand the rigors of continuous operation within a conveyor system. It is also designed to be retrofitted into standard configurations easily, offering adaptability to existing setups. The Bosch Rexroth CONNECTING KIT comes partially assembled with all necessary fastening materials included in the scope of delivery. This ensures quick and hassle-free installation. Additionally, customers seeking specialized solutions can contact Bosch Rexroth's modification department for custom versions tailored to specific requirements. In summary, this connecting kit offers high flexibility and compatibility with various conveyed goods due to its thoughtful design and adjustable features. Its robust construction guarantees longevity and reliable performance in facilitating seamless transitions within conveyor systems.
The Bosch Rexroth CONNECTING KIT 160+ BRIDGE PASS (3842549018) is an essential component designed for efficient material handling in conveyor systems. This connection kit includes a passive bridge, which serves as a transfer unit between the basic unit and the return unit or can be used in conjunction with the connection drive to span conveyor trenches. The kit is specifically engineered for use with flat conveyor chains and static friction chains, ensuring compatibility with dimensionally stable products that have an even transport surface. The passive bridge facilitates the smooth transition of goods by utilizing passive rollers, making it suitable for items that are at least approximately mm in length. The height adjustment feature provides flexibility, allowing for approximately mm of vertical modification to accommodate various product sizes. This feature ensures that a wide range of goods can be conveyed efficiently across the bridging point. Crafted from high-quality, non-rusting steel and POM, the connecting kit is durable and designed to withstand the rigors of continuous operation within a conveyor system. It is also designed to be retrofitted into standard configurations easily, offering adaptability to existing setups. The Bosch Rexroth CONNECTING KIT comes partially assembled with all necessary fastening materials included in the scope of delivery. This ensures quick and hassle-free installation. Additionally, customers seeking specialized solutions can contact Bosch Rexroth's modification department for custom versions tailored to specific requirements. In summary, this connecting kit offers high flexibility and compatibility with various conveyed goods due to its thoughtful design and adjustable features. Its robust construction guarantees longevity and reliable performance in facilitating seamless transitions within conveyor systems.

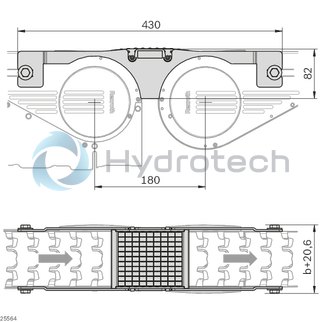

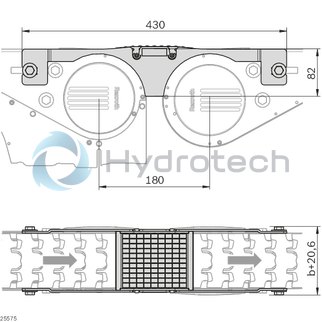

Connection kit passive bridge VFplus 160
Unpacked Weight: 1.3 kg

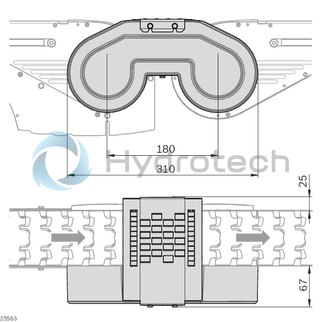

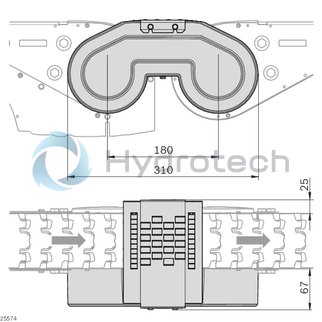

The active and passive bridges are used as a transfer unit between the basic unit and return unit or with the connection drive to bridge the conveyor trench.
Sizes: 65-160 Only for flat conveyor chain and static friction chain For dimensionally stable products with an even transport surface Height adjustment: about 3 mm Additional versions (such as, machine variants) available on requestA: The active bridge is driven by a transmission (on the drive or return unit side).
Suitable for conveyed goods from about 100 mm in length (depending on the speed, position of the center of gravity, geometry, product friction, etc.) Freely selectable mounting position (L/R) Not permitted for wet operation or rough ambient conditionsB: The passive bridge serves the purpose of bridging the conveyor trench.
Transfer of the goods via passive rollers Suitable for conveyed goods from a length of about 300 mm| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Modification | Additional versions are available on request from our modification department. (COS@boschrexroth.de) |
| Weight | 1.3 |
| Scope of delivery | Incl. fastening material |
| Delivery information | Partially assembled |
| Size [b] | 160 |
| Material information | Non-rusting steel 1.4301, POM |
|
Material |
|
| Connection kit active bridge VFplus 65 | Stainless steel/PA/POM/ABS/PUR |
| Connection kit active bridge VFplus 90 | |
| Connection kit active bridge VFplus 120 | |
| Connection kit active bridge VFplus 160 | |
| Connection kit passive bridge VFplus 65 | Stainless steel/PA |
| Connection kit passive bridge VFplus 90 | |
| Connection kit passive bridge VFplus 120 | |
| Connection kit passive bridge VFplus 160 |
Connection kit active bridge STS
Connection kit active bridge AL
Connection kit passive bridge STS
Connection kit passive bridge AL
