BOSCH REXROTH
3842548936
$7.93
- BOSCH REXROTH
- Material:3842548936
- Model:QUICK CONNECTOR N10 0
Quantity in stock: 16

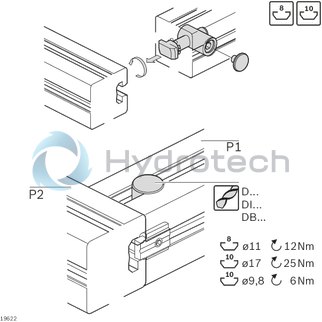

| Note differing drilling intervals and load-bearing capacities when using with radial compensation |
| For the right-angled connecting of two profiles |
| Very good accessibility for tools during assembly |
| O-ring for fastening allows overhead assembly |
| Quick connectors can be swiveled into the profile slot at the point of assembly |
| Profile finishing: blind hole DI, DB11, DB17 or through-hole DI, D11, D17 |
| Quick connector 9.8 with smaller connector sleeve |
| The hole for the connector sleeve does not make contact with the slot flanks. This allows a visually attractive connection; the slot can be completely closed with the cover profile |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Bending moment 1 | 140 |
| Productgroup ID | 2 |
| Packaging unit | 10 |
| ESD | yes |
| Diameter D | 17 |
| Profile slot P1/P2 | 10 / 10 |
| Material | Steel, stainless |
| Weight | 0.031 |
| Recommended accessories | Anti-torsion element,Radial compensation,Drilling jig,Cap |
| Head shape | rectangular |
| Mounting orientation | 0 ° |
| Profile slot | 10 |
|
Nut |
|
|
|
8/8 |
500 N |
40 Nm |
|
8/10 |
2000 N |
70 Nm |
|
10/10 |
4000 N |
140 Nm |
|
10/10 |
800 N |
50 Nm |
Quick connector, 8/10 mm slot, 0°
Quick connector, 10/10 mm slot, 0°, connector sleeve D = 9.8
| Recommended accessories | ||
| Anti-torsion element | ||
| Radial compensation | ||
| Drilling jig | ||
| Cap |
Radial compensation
Radial compensation
To avoid gaps and sharp edges on T-connections between two profiles using a central bolt or quick connector (note spacing of hole from the face of the profile) The slot segments can be broken out in order to fix surface elements in the slot Important note: the load carrying capacity of the profile connection is reduced when using radial compensation!CAD data
Anti-torsion element
Anti-torsion element
Provides torsion resistance for profile connections with central bolts or quick connectors Subsequent installation in the connection possibleCAD data
Quick connector, 6 mm slot, 0°, 90° cover cap
Quick connector, 6 mm slot, 0°, 90° cover cap
For the right-angled connecting of two profiles Very good accessibility for tools during assembly Quick connector for 6 mm slot with square head; can be used as a 0° or 90° connector Profile finishing: Blind hole DB8 or through-hole D8CAD data
