BOSCH REXROTH
3842548869
$3.71
- BOSCH REXROTH
- Material:3842548869
- Model:CAP COVER GUSSET 90X90 ESD
Quantity in stock: 2

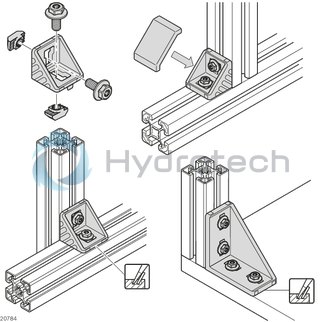

| Brackets with centering lugs for rapid, precise assembly with protection against turning |
| Centering lugs can be easily broken off for assembly on plates or at right angles to the slot |
| Version designLINE with special silver paint (RAL 9006) for an especially high-quality design: Version designLINE with special silver paint (RAL 9006) for an especially high-quality design |

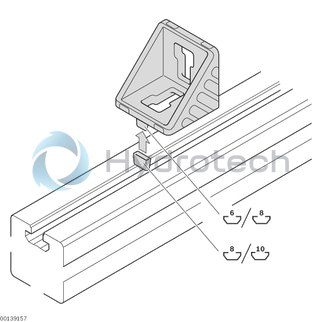

| Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005) |
| Profile finishing: not required |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Cover cap | yes |
| Productgroup ID | 2 |
| Packaging unit | 20 |
| ESD | yes |
| Dimensions | 90x90 |
| Material | PP |
| Weight | 0.03582 |
| Color | Black |
|
Groove |
ESD |
Material entry |
|
|
|
|
|
|
Fmax |
Mmax |
Mmax |
Mmax |
||||
|
N |
Nm |
Nm |
Nm |
||||
| Bracket | 10 |
|
Bracket: Diecast aluminum, vibratory ground Fastening material: steel; galvanized |
12000 | 370 | 800 | 200 |
| 10 |
|
Bracket designLINE: Diecast aluminum; vibratory ground, painted (RAL 9006) Fastening material: steel; galvanized |
12000 | 370 | 800 | 200 | |
| 10 |
|
Bracket: Diecast aluminum, vibratory ground | 12000 | 370 | 800 | 200 | |
| Cover cap for bracket | PP | ||||||
|
|
PP |
|
Typ |
|
|
|
|
|
90 / 90 |
12000 N |
370 Nm |
800 Nm |
200 Nm |

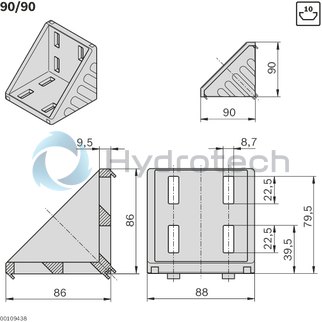

Bracket 90/90 with cover cap
| Recommended accessories | ||
| Cover cap for bracket 90/90, signal gray | ||
| Cover cap for bracket 90/90, black |
|
FS7 |
|
