BOSCH REXROTH
3842547707

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

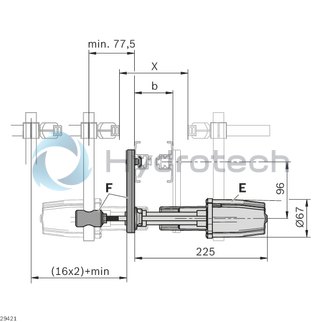

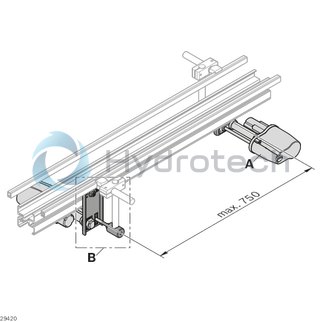

The Bosch Rexroth SERVO UNIT VF+ LATERAL GUIDE (3842547707) is a sophisticated lateral guide adjusting unit designed for conveyor systems, providing a solution for easy accessibility and adjustability of materials being transported. This unit is engineered with mounting and adjustment mechanisms that can be placed under the conveyor system, allowing for adjustments in both horizontal and vertical curves. A customer-side adjustment is necessary when dealing with horizontal curves. The product group ID material includes high-quality components such as aluminum (AL) anodized, polyethylene (PE), steel, and galvanized steel, along with polyamide (PA), ensuring durability and long-lasting performance. The lateral guide comes fully assembled, requiring only a profile rail and one directional control valve per adjustment unit as necessary accessories. This servo unit boasts the ability to adapt the complete lateral guide to rapidly changing product dimensions, making it particularly useful in scenarios where conveyor accessibility is limited. The pneumatically adjustable lateral guide consists of an adjustment unit A, an assembly kit B, and additional components from the lateral guide program. Key specifications include a maximum pressure against the lateral guide on one side of N mm. It features synchronous, uniform adjustment controlled by a pneumatic valve operating at a pressure range of ... bar. The valve switches every ... seconds depending on the length of the pneumatic pipes and the number of adjustment units per valve. Each side has an adjustment range of ... strokes at ... mm up to ... mm; after ... switching operations, the unit reverts to its initial position. The maximum number of adjustment units per valve is ... pieces. To ensure accuracy and reliability during operation, user-side position monitoring is recommended.
