BOSCH REXROTH
3842547533

$1,282.97 USD

BOSCH REXROTH
Material:3842547533
Model:RETURN 320+ STS

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth RETURN 320+ STS (3842547533) is a sophisticated return unit designed to facilitate the efficient movement of goods in conveyor systems. This return unit boasts a VFplus feature, which significantly reduces noise emissions through its slide rails that are carefully guided within the unit. It offers flexibility in installation, allowing for the drive kit to be mounted on either the right or left side and includes a motor, coupling, and flange. The RETURN 320+ STS is equipped with a standard integrated hexagonal hollow shaft that enables the driving of parallel conveyor sections or bridges. The ball bearings are made of non-rusting steel and feature seals on both sides along with FDA-compliant grease filling, ensuring durability and compliance with food safety standards. The capability for implementing parallel sections is further enhanced by its pluggable shaft, while side elements provide mounting options for attaching holders for lateral guides or similar components. This product comes with an effective sliding rail length and an actual chain length tailored to specific requirements. Its weight is optimized for performance without compromising strength. The scope of delivery includes all necessary fastening materials, and it arrives assembled with connectors enclosed. Designed for versatility, this unit supports all track widths and chain types within certain limits of permissible tensile force. It can function as both a return unit with a maximum force of Fmax N and as a head drive without a chain bag supporting the same maximum force. Maintenance intervals may be shortened due to chain elongation considerations. The RETURN 320+ STS can accommodate conveying speeds of vN m/min, with other speeds available upon request. It's not suitable for reversible operation but excels in combination with the drive kit as a wedge conveyor drive. The Bosch Rexroth RETURN 320+ STS demonstrates an innovative approach to conveyor system drives, providing comprehensive solutions that include complete drives consisting of head drive direct configurations as well as configurable drive kits.

Return unit STS; VFplus 320

Unpacked Weight: 5.4 kg

Thanks to the innovative drive concept, the return unit can be operated simply by itself or supplemented with a drive kit to be operated as a head drive without chain bag. The section length is limited to a maximum of 7 m.

Size: all track widths Suitable chain types: all Permissible chain tensile force

Return unit function: Fmax = 1250 N

Head drive function without chain bag: Fmax = 600 N

With shortened maintenance interval, due to chain elongation

Section length for return unit function: L ≤ 30 m

Section length for drive function: L ≤ 7 m

Conveying speed: vN = 2-60 m/min, other speeds available on request Use in combination with the drive kit as a wedge conveyor drive Not suitable for reversible operation

The standard drives are easy to couple and enable straightforward implementation of multi-track systems

technical illustration-3842547533-Return unit STS; VFplus 320

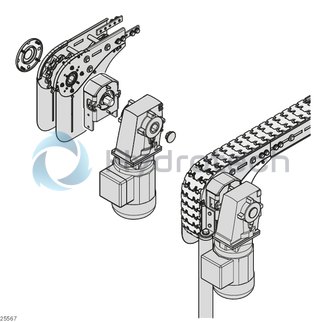

Complete drive consisting of head drive direct and configurable drive kit

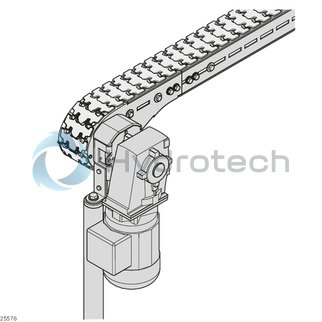

Complete drive consisting of return unit and configurable drive kit

Innovative drive concept

Reduced noise emission due to slide rails guided in the return unit
Installation of the drive kit possible on the right/left (motor, coupling, flange)

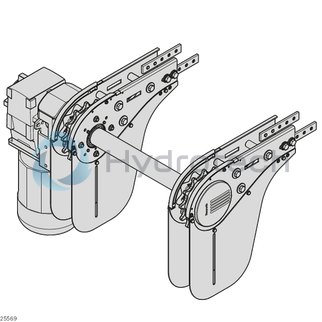

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Implementation of parallel sections possible through a pluggable shaft
Side elements with mounting option for attaching holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	4x 0,2
Actual chain length	0,742
Weight	5.4
Scope of delivery	Incl. fastening material
Delivery information	Assembled, connector enclosed
Required accessories	Slide rail,For use as a drive:Assembly moduleDrive kitMotor support
Size [b]	320
Material information	Chain wheel: PA,Chain guide: PA,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA,Ball bearing: Non-rusting steel 1.4301/FDA,Housing: Non-rusting steel 1.4301,Connector: Non-rusting steel 1.4301
Track width in direction of transport [b]	320

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
