BOSCH REXROTH
3842547525

$1,037.28 USD

BOSCH REXROTH
Material:3842547525
Model:BASE UNIT 160+ STS DIRECT

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BASE UNIT 160+ STS DIRECT (3842547525) is a versatile and robust base unit designed to serve as the foundation for advanced conveyor systems. This product features reduced noise emission thanks to its slide rails guided in the head drive, ensuring a quieter operation that is ideal for environments where noise levels are a concern. The unit allows for installation of the drive kit on either the right or left side, providing flexibility in motor, coupling, and flange configurations. The integrated double-sided hexagonal hollow shaft is a standout feature, allowing for easy driving of parallel conveyor sections or bridges, contributing to the system's modular design and expandability. With ball bearings made of non-rusting steel and sealed on both sides using FDA-compliant grease filling, this base unit is designed to meet stringent hygiene standards required in food processing and pharmaceutical industries. Side elements offer mounting options for holders of lateral guides and similar accessories, enhancing the unit's adaptability to different applications. The product comes with all necessary fastening materials included, ensuring a complete solution ready for assembly upon delivery. The BASE UNIT 160+ STS DIRECT can accommodate all track widths and chain types while withstanding a maximum permissible chain tensile force. It offers customizable conveying speeds with options available upon request. Additionally, it includes a chain bag to compensate for elongation during the service life of the chain but is not suitable for reversible operation. In terms of material composition, key components such as the chain wheel and guide are made from PA (polyamide), while housing and connectors are constructed from non-rusting steel, ensuring durability and longevity. The size b model supports PA hexagonal shafts up to a certain size before transitioning to non-rusting steel construction. Overall, this innovative drive concept provides an efficient solution for building sophisticated conveyor systems that require reliability, flexibility in design, and compliance with hygiene standards.

Base unit STS, VFplus 160 dir.

Unpacked Weight: 6.32 kg

The basic unit is quickly turned into a head drive with variable mounting position by adding a drive kit.

With the double-sided hexagonal hollow shaft, other components can be easily driven using a transmission (active bridge).

Size: all track widths Suitable chain types: all Permissible chain tensile force: Fmax = 1250 N Section length: L ≤ 30 m Conveying speed: vN = 2-60 m/min, other speeds available on request Chain bag to compensate for chain elongation during service life Not suitable for reversible operation

Chain sprocket

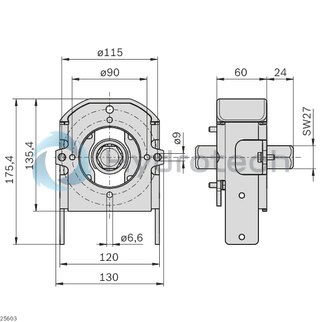

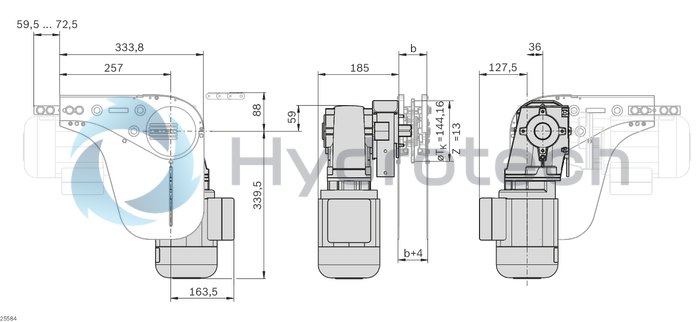

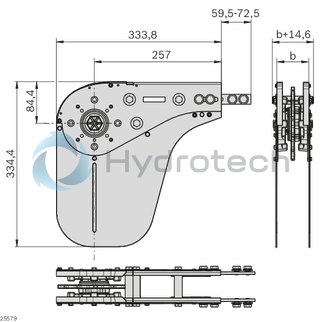

technical illustration-3842547525-Base unit STS, VFplus 160 dir.

Innovative drive concept

Conveyor noise level

Reduced noise emission due to slide rails guided in the head drive
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with mounting option for attaching holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	4x 0,2
Actual chain length	0,881
Weight	6.32
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled,Connector, chain guard enclosed
Recommended accessories	Active or passive bridge connection kits,Synchronous drive connection kit
Required accessories	Drive kit,Slide rail: Length calculation
Size [b]	160
Material information	Chain wheel: PA,Chain guide: PA,Ball bearing: Non-rusting steel 1.4301/FDA,Housing: Non-rusting steel 1.4301,Connector: Non-rusting steel 1.4301,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
