BOSCH REXROTH
3842547518

$755.21 USD

BOSCH REXROTH
Material:3842547518
Model:RETURN 120+ AL

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth RETURN 120+ AL (3842547518) is a sophisticated return unit featuring an AL construction, designed to provide a reduced noise emission due to its slide rails guided within the unit. It offers the flexibility of installing the drive kit on either side—right or left—accommodating motor, coupling, and flange. This versatility extends to driving a parallel conveyor section or bridge with an integrated standard hexagonal hollow shaft. Crafted with durability in mind, the RETURN 120+ AL boasts ball bearings made from non-rusting steel, sealed on both sides and filled with FDA-compliant grease, ensuring reliable operation in various environments. The side elements include slots for attaching holders for lateral guides or similar components, enhancing the unit's adaptability. The material composition is robust and hygienic; housing is made from die-cast aluminum that's powder-coated for extra protection, while chain wheels and guides are constructed from PA. For larger sizes, the hexagonal shaft is made from non-rusting steel, ensuring longevity and compliance with stringent standards. This return unit is capable of supporting all track widths and chain types while withstanding a permissible chain tensile force. It can function as a return unit with a maximum section length of m or as a head drive without a chain bag for lengths up to m. The conveying speed stands at vN m/min, offering efficiency in operations. Additional features include its capability as a wedge conveyor drive when used with the drive kit but it’s not suitable for reversible operation. The design allows for high flexibility and short delivery times due to its innovative concept and standardized components. With stainless steel ball bearings sealed on both sides filled with FDA-compliant grease and implementation options for parallel sections down to zero gap dimension, this unit exemplifies efficiency combined with adaptability. In summary, the Bosch Rexroth RETURN 120+ AL return unit is fully assembled upon delivery and includes all necessary fastening material. It represents an advanced solution for conveyor systems requiring reliable returns or drives functionality within their operations.

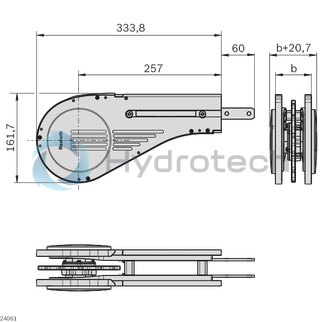

Return unit AL; VFplus 120

Unpacked Weight: 1.95 kg

Thanks to the innovative drive concept, the return unit can be operated simply by itself or supplemented with a drive kit to be operated as a head drive without chain bag. The section length is limited to a maximum of 7 m.

Size: all track widths Suitable chain types: all Permissible chain tensile force

Return unit function: Fmax = 1250 N

Head drive function without chain bag: Fmax = 600 N

With shortened maintenance interval, due to chain elongation

Section length for return unit function: L ≤ 30 m

Section length for drive function: L ≤ 7 m

Conveying speed: vN = 2-60 m/min, other speeds available on request Use in combination with the drive kit as a wedge conveyor drive Not suitable for reversible operation

Innovative drive concept

Reduced noise emission due to slide rails guided in the return unit
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with slot to attach holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	0,742
Actual chain length	2x 0,2
Weight	1.95
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation,For use as a drive:Assembly moduleDrive kitMotor support
Size [b]	120
Material information	Housing: Diecast aluminum, powder-coated,Chain wheel: PA,Chain guide: PA,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA,Connector: Steel, galvanized,Ball bearing: Non-rusting steel 1.4301/FDA
Track width in direction of transport [b]	120

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
