BOSCH REXROTH
3842547444

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

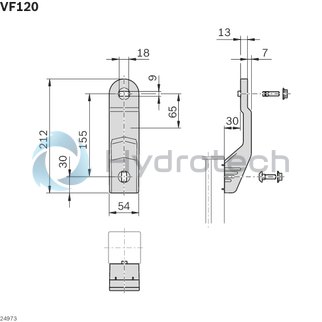

The Bosch Rexroth SUPPORT VF120+ AL DRIVESET (3842547444) is a comprehensive support system designed for optimal performance and versatility in various conveyor applications. This engineered solution includes a holder engine support made from galvanized steel, ensuring durability and resistance to wear. The product is specifically tailored for chain conveyors that can be either floor-mounted or ceiling-suspended, with the mode of suspension being dependent on the particular application requirements. The set comes with all necessary fastening materials for installation, providing ease of assembly. The components include a foot (A), strut profile (B), cap (C), and a holder (D) for attaching section profiles, as well as a separate holder (E) for motor/drive support. These elements are designed to accommodate both aluminum and stainless steel system supports, although holder E is exclusively intended for use with AL systems. The design of the VF120+ AL DRIVESET allows for an adjustable height range to cater to different return chains, with the capability of supporting ascending and descending conveyor sections. For precise installations, holder D features a drill guide to facilitate additional holes needed for accessories such as drip trays or trap guards. Additionally, centering lugs on holder D ensure easy alignment within the slot, streamlining the assembly process through a plug-in screw connection. This support system by Bosch Rexroth is engineered to maintain stability at various intervals—typically around several meters apart—depending on factors such as speed, accumulation behavior, and load weight. Its robust construction and thoughtful design make it an essential component in creating effective material handling solutions where reliability and adaptability are paramount.
