BOSCH REXROTH
3842547138
$866.24 USD
- BOSCH REXROTH
- Material:3842547138
- Model:CURVE 65+ VERT STS 45
Quantity in stock: 0
The Bosch Rexroth CURVE 65+ VERT STS 45?R500 (3842547138) is a sophisticated vertical curve designed for seamless integration with conveyor systems. This component is essential for facilitating the transition from horizontal to ascending conveyor sections, and vice versa, ensuring smooth and efficient material handling. With its deflection angle, the CURVE 65+ VERT STS enhances the chain tensile force by introducing friction at critical points of the conveyor's path. Crafted from nonrusting steel for both the profile and connector, this durable vertical curve is built to withstand rigorous industrial use while maintaining its structural integrity over time. The effective sliding rail length and actual chain length are meticulously calibrated to match specific system requirements, ensuring compatibility and optimal performance. Its weight and dimensions have been optimized to support a variety of applications without compromising on strength or reliability. The CURVE 65+ VERT STS comes fully assembled with all necessary fastening materials included for quick and easy mounting to STS section profiles. It requires slide rails for operation, which must be calculated in size according to the system's specifications. The product is suitable for all deflection angles and radii as well as all chain types, offering versatility across numerous conveyor setups. This model is particularly recommended for use with wedge conveyors handling small products, where precise infeed and outfeed control is paramount. The open section profiles of this version require Advanced or Premium slide rails, which enhance the overall functionality of the conveyor system. Whether used in packaging, assembly, or distribution centers, the Bosch Rexroth CURVE 65+ VERT STS 45?R500 represents a reliable solution that ensures a smooth transition within various types of material handling systems.
Vertical curve STS VFplus 65 45°
Unpacked Weight: 2.466 kg
The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa. The chain tensile force is increased through the ensuing friction.
A vertical curve of 5° is recommended for the infeed and outfeed on the wedge conveyor, especially with small products.
Size: all Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Deflection angle [α] | 45 |
| Productgroup ID | 2 |
| Effective sliding rail length | 4x 0,59 |
| Actual chain length | 2x 0,59 |
| Weight | 2.466 |
| Scope of delivery | Incl. fastening material for mounting to STS section profiles |
| Delivery information | Fully assembled |
| Required accessories | Slide rail: Length calculation |
| Size [b] | 65 |
| Dimension [A] | 548.7 |
| Material information | Profile: Non-rusting steel 1.4301,Connector: Non-rusting steel 1.4301 |
Combination matrix
|
Straight |
Curves |
Drives |
Return Unit |
|||||||||
|
Section profile STS open |
Section profile STS Clean |
Assembly module |
Curve wheel |
Roller curve* |
Vertical curve |
Head drive |
Connection drive |
Center drive** |
Basic unit |
90° ** |
||
|
Straight |
Section profile STS open |
J |
||||||||||
|
Section profile STS Clean |
L6) |
L6) |
||||||||||
|
Assembly module |
J |
L6) |
N |
|||||||||
|
Curves |
Curve wheel |
J |
L6) |
J |
L2, 7) |
|||||||
|
Roller curve* |
J |
N |
J |
N |
L1) |
|||||||
|
Vertical curve |
J |
L6) |
J |
L1) |
L1) |
L1) |
||||||
|
Drives |
Head drive |
J |
L6) |
J |
L1) |
L1, 4) |
L1, 4) |
N |
||||
|
Connection drive |
J |
L6) |
J |
L1) |
N |
L1) |
N |
N |
||||
|
Center drive** |
J |
L6) |
J |
L1) |
N |
L1) |
N |
N |
N |
|||
|
Return Unit |
Basic unit |
J |
L6) |
J |
L1) |
L1, 4) |
L1, 4) |
L1) |
L1) |
L1, 3) |
L1, 3) |
|
|
90° ** |
J |
L6) |
J |
L1) |
N |
L1) |
L1) |
L1) |
N |
N |
L1) |
|
|
J |
possible without restrictions |
* Support profile must project 76+2 mm into the roller curve. |
||||||||||
|
L |
possible with restrictions |
** AL-STS adapter included in the scope of delivery. |
||||||||||
|
N |
not possible |
|||||||||||
| 1) | Profile connector not required |
| 2) | Use of a profile piece (Lmin = 224 mm) |
| 3) | Assembly module required |
| 4) | For sizes 160-320: shorten the support rail on the dotted line |
| 5) | Use of the AL-STS adapter |
| 6) | Replace the standard profile connector with STS Clean Section profile connector |
| 7) | Directly possible with left-right change (one profile connector is no longer required) |

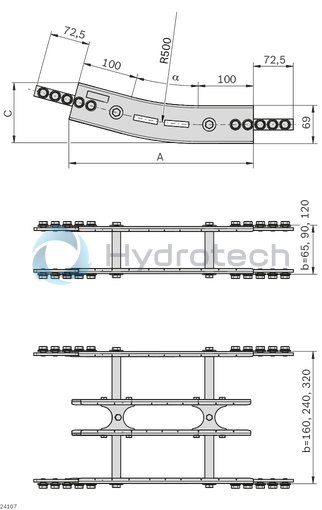

Vertical curve STS
Vertical curve STS VFplus 5°
Vertical curve STS VFplus 15°
Vertical curve STS VFplus 30°
Vertical curve STS VFplus 45°
|
b |
α |
A |
C |
R |
|
mm |
° |
mm |
mm |
mm |
| 65 | 5 | 246.2 | 79.5 | 500 |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 45 | 548.7 | 276.1 | 500 | |
| 90 | 5 | 246.2 | 79.5 | 500 |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 45 | 548.7 | 276.1 | 500 | |
| 120 | 5 | 246.2 | 79.5 | 500 |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 45 | 548.7 | 276.1 | 500 | |
| 160 | 5 | 246.2 | 79.5 | 500 |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 45 | 548.7 | 276.1 | 500 | |
| 240 | 5 | 246.2 | 79.5 | 500 |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 320 | 5 | 246.2 | 79.5 | 500 |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 |
Slide rail
Slide rail
Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral boltingCAD data
