- Model:CAM WHEEL 90+ STS 45
Quantity in stock: 0
The Bosch Rexroth CAM WHEEL 90+ STS 45° (3842547116) is a high-quality curve wheel designed for use in various conveyor systems. This CAM WHEEL model is part of the STS VFplus series, known for its easy-to-clean design, which is crucial for applications requiring strict hygiene standards. The wheel features ball bearings made of non-rusting steel, complete with seals on both sides and FDA-compliant grease filling, ensuring durability and safe contact with food products. The surfaces of the CAM WHEEL that come into contact with the chain are made from FDA-compliant materials, eliminating any risk of contamination. The design avoids any interfering contours above the chain plate height, allowing for smooth operation without any hindrance to the movement of the conveyor chain. This versatility makes it suitable for both horizontal and vertical applications, particularly in wedge conveyors. With an effective sliding rail length and actual chain length specified by product group ID, this component can be used to create precise deflection angles within a conveyor system. While it comes standard with certain dimensions for deflection angles, other angles can be requested to meet specific requirements. The CAM WHEEL is compatible with all suitable chain types. Constructed with a housing made of non-rusting steel 1.4301 and a white chain wheel composed of PA material, it upholds a robust build quality. It has been designed to facilitate low-friction direction changes within very small radii, enhancing efficiency in conveyor operations. The Bosch Rexroth CAM WHEEL comes fully assembled and includes fastening material for mounting to STS section profiles. Additional versions and custom modifications are available upon request through Bosch Rexroth's modification department. With its comprehensive design and construction features, this curve wheel is an essential component for optimizing conveyor system performance while adhering to stringent health standards.
Curve wheel STS VFplus 90 45°
Unpacked Weight: 4.4 kg
The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.
Size: 65, 90, 120 For deflection angles, see table Other deflection angles on request Suitable chain types: all| Easy-to-clean design |
| Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling |
| Surfaces in contact with chain made of FDA-compliant materials |
| No interfering contours above chain plate height |
| Can be used horizontally and vertically (for wedge conveyors) |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Deflection angle [α] | 45 |
| Productgroup ID | 2 |
| Effective sliding rail length | 2x 0,41 |
| Actual chain length | 2x 0,33 |
| Modification | Additional versions are available on request from our modification department. (COS@boschrexroth.de) |
| Weight | 4.4 |
| Scope of delivery | Incl. fastening material for mounting to STS section profiles |
| Delivery information | Fully assembled |
| Size [b] | 90 |
| Dimension [A] | 210.5 |
| Material information | Housing: Non-rusting steel 1.4301,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA |
Combination matrix
|
Straight |
Curves |
Drives |
Return Unit |
|||||||||
|
Section profile STS open |
Section profile STS Clean |
Assembly module |
Curve wheel |
Roller curve* |
Vertical curve |
Head drive |
Connection drive |
Center drive** |
Basic unit |
90° ** |
||
|
Straight |
Section profile STS open |
J |
||||||||||
|
Section profile STS Clean |
L6) |
L6) |
||||||||||
|
Assembly module |
J |
L6) |
N |
|||||||||
|
Curves |
Curve wheel |
J |
L6) |
J |
L2, 7) |
|||||||
|
Roller curve* |
J |
N |
J |
N |
L1) |
|||||||
|
Vertical curve |
J |
L6) |
J |
L1) |
L1) |
L1) |
||||||
|
Drives |
Head drive |
J |
L6) |
J |
L1) |
L1, 4) |
L1, 4) |
N |
||||
|
Connection drive |
J |
L6) |
J |
L1) |
N |
L1) |
N |
N |
||||
|
Center drive** |
J |
L6) |
J |
L1) |
N |
L1) |
N |
N |
N |
|||
|
Return Unit |
Basic unit |
J |
L6) |
J |
L1) |
L1, 4) |
L1, 4) |
L1) |
L1) |
L1, 3) |
L1, 3) |
|
|
90° ** |
J |
L6) |
J |
L1) |
N |
L1) |
L1) |
L1) |
N |
N |
L1) |
|
|
J |
possible without restrictions |
* Support profile must project 76+2 mm into the roller curve. |
||||||||||
|
L |
possible with restrictions |
** AL-STS adapter included in the scope of delivery. |
||||||||||
|
N |
not possible |
|||||||||||
| 1) | Profile connector not required |
| 2) | Use of a profile piece (Lmin = 224 mm) |
| 3) | Assembly module required |
| 4) | For sizes 160-320: shorten the support rail on the dotted line |
| 5) | Use of the AL-STS adapter |
| 6) | Replace the standard profile connector with STS Clean Section profile connector |
| 7) | Directly possible with left-right change (one profile connector is no longer required) |
Curve wheel STS
Curve wheel STS VFplus 30°
Curve wheel STS VFplus 45°
Curve wheel AL VFplus 90°
Curve wheel STS VFplus 180°
|

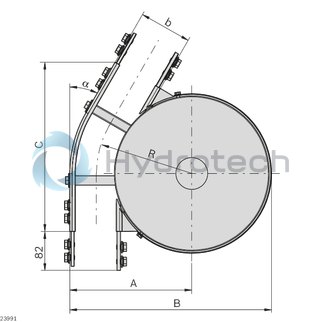

b |
α |
A |
B |
C |
R |
|
mm |
° |
mm |
mm |
mm |
mm |
| 65 | 30 | 185.5 | 322.5 | 279.4 | 153 |
| 45 | 185.5 | 322.5 | 301.9 | 153 | |
| 90 | 185.5 | 322.5 | 285.5 | 153 | |
| 180 | 185.5 | 287.5 | 153 | ||
| 90 | 30 | 210.5 | 347.5 | 291.9 | 165.5 |
| 45 | 210.5 | 347.5 | 319.6 | 165.5 | |
| 90 | 210.5 | 347.5 | 310.5 | 165.5 | |
| 180 | 210.5 | 310.5 | 165.5 | ||
| 120 | 30 | 240.5 | 377.5 | 306.9 | 180.5 |
| 45 | 240.5 | 377.5 | 340.8 | 180.5 | |
| 90 | 240.5 | 377.5 | 340.5 | 180.5 | |
| 180 | 240.5 | 340.5 | 180.5 |
Note: High-pressure cleaning of the ball bearings is not permitted.
