BOSCH REXROTH
3842547097
$584.16 USD
- BOSCH REXROTH
- Material:3842547097
- Model:CURVE 120+ VERT AL 45
Quantity in stock: 0
The Bosch Rexroth CURVE 120+ VERT AL 45°R500 (3842547097) is a vertical curve component designed to facilitate smooth transitions between horizontal and ascending conveyor sections. This product is integral in material handling applications where changes in elevation are required while maintaining the flow of items. It features an effective sliding rail length and actual chain length that are specified for optimal performance. With a deflection angle that allows for flexibility in design, this vertical curve can be used with various chain types and is suitable for all sizes. Constructed from high-quality materials, the profile is made of anodized aluminum, ensuring durability and resistance to wear. The profile connector is crafted from galvanized steel, while the cross connector consists of die-cast aluminum. For larger sizes, a non-rusting steel support profile enhances stability and longevity. The CURVE 120+ VERT AL 45°R500 comes fully assembled, including all necessary fastening material for mounting to the AL section profile. This product's design caters to extended service life and reduced downtimes by incorporating low-friction curve technology. It's also versatile enough to accommodate modifications through Bosch Rexroth's modification department upon request. Additional versions can be tailored to meet specific requirements, ensuring compatibility with a wide range of conveyor systems. In summary, the Bosch Rexroth CURVE 120+ VERT AL 45°R500 offers a robust solution for conveyor systems requiring vertical transitions. Its construction quality and low-friction technology make it an excellent choice for efficient material handling operations.
Vertical curve AL VFplus 120 45°
Unpacked Weight: 1.83 kg
The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa. The chain tensile force is increased through the ensuing friction.
A vertical curve of 5° is recommended for the infeed and outfeed on the wedge conveyor, especially with small products.
Size: all Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails| The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Deflection angle [α] | 45 |
| Productgroup ID | 2 |
| Effective sliding rail length | 4x 0,59 |
| Actual chain length | 2x 0,59 |
| Modification | Additional versions are available on request from our modification department. (COS@boschrexroth.de) |
| Weight | 1.83 |
| Scope of delivery | Incl. fastening material for mounting to the AL section profile |
| Delivery information | Fully assembled |
| Required accessories | Slide rail: Length calculation |
| Size [b] | 120 |
| Dimension [A] | 548.7 |
| Material information | Profile: Aluminum, anodized,Profile connector: Steel, galvanized,Cross connector: Diecast aluminum,Support profile from size 160: Non-rusting steel 1.4301 |
|
Material |
|
| Vertical curve AL VFplus 65 5° |
Profile: Aluminum, anodized Profile connector: Steel, galvanized Cross connector: Aluminum, die-cast |
| Vertical curve AL VFplus 65 7.5° | |
| Vertical curve AL VFplus 65 15° | |
| Vertical curve AL VFplus 65 30° | |
| Vertical curve AL VFplus 65 45° | |
| Vertical curve AL VFplus 90 5° | |
| Vertical curve AL VFplus 90 7.5° | |
| Vertical curve AL VFplus 90 15° | |
| Vertical curve AL VFplus 90 30° | |
| Vertical curve AL VFplus 90 45° | |
| Vertical curve AL VFplus 120 5° | |
| Vertical curve AL VFplus 120 7.5° | |
| Vertical curve AL VFplus 120 15° | |
| Vertical curve AL VFplus 120 30° | |
| Vertical curve AL VFplus 120 45° | |
| Vertical curve AL VFplus 160 5° |
Profile: Aluminum, anodized Profile connector: Steel, galvanized Cross connector: Aluminum, die-cast Support profile from size 160: stainless steel 1.4301 |
| Vertical curve AL VFplus 160 7.5° | |
| Vertical curve AL VFplus 160 15° | |
| Vertical curve AL VFplus 160 30° | |
| Vertical curve AL VFplus 160 45° | |
| Vertical curve AL VFplus 240 5° | |
| Vertical curve AL VFplus 240 7.5° | |
| Vertical curve AL VFplus 240 15° | |
| Vertical curve AL VFplus 240 30° | |
| Vertical curve AL VFplus 320 5° | |
| Vertical curve AL VFplus 320 7.5° | |
| Vertical curve AL VFplus 320 15° | |
| Vertical curve AL VFplus 320 30° |
Combination matrix
|
Straight |
Curves |
Drives |
Return Unit |
||||||||||||
|
Section profile AL open |
Section profile AL closed |
Assembly module |
Curve wheel |
Roller curve* |
Horizontal sliding curve |
Vertical curve |
Head drive |
Curve wheel drive |
Connection drive |
Center drive (STS)** |
Basic unit |
90° (STS)** |
Transmission kit |
||
|
Straight |
Section profile AL open |
J |
|||||||||||||
|
Section profile AL closed |
J |
J |
|||||||||||||
|
Assembly module |
J |
J |
N |
||||||||||||
|
Curves |
Curve wheel |
J |
J |
L2) |
L2) |
||||||||||
|
Roller curve* |
J |
N |
J |
N |
L1) |
||||||||||
|
Horizontal sliding curve |
J |
J |
J |
J |
N |
L1) |
|||||||||
|
Vertical curve |
J |
J |
J |
J |
L1) |
L1) |
L1) |
||||||||
|
Drives |
Head drive |
J |
J |
L2) |
L2) |
L1, 4) |
L1) |
L1, 4) |
N |
||||||
|
Curve wheel drive |
J |
J |
L2) |
L2) |
N |
L1) |
L1) |
N |
N |
||||||
|
Connection drive |
J |
J |
L2) |
L2) |
N |
L1) |
L1) |
N |
N |
N |
|||||
|
Center drive (STS)** |
L5) |
L5) |
L2, 5) |
L2, 5) |
N |
L1, 5) |
L1, 5) |
N |
N |
N |
N |
||||
|
Return Unit |
Basic unit |
J |
J |
L2) |
L2) |
L1, 4) |
L1) |
L1, 4) |
L2) |
N |
N |
L2, 3) |
L2, 3) |
||
|
90° (STS)** |
L5) |
L5) |
L2, 5) |
L2, 5) |
N |
L1, 5) |
L1, 5) |
N |
N |
L2, 5) |
N |
N |
L2) |
||
|
Transmission kit |
N |
N |
N |
N |
N |
N |
N |
J |
N |
J |
N |
J |
N |
N |
|
|
J |
possible without restrictions |
* Support profile must project 76+2 mm into the roller curve. |
|||||||||||||
|
L |
possible with restrictions |
** AL-STS adapter included in the scope of delivery. |
|||||||||||||
|
N |
not possible |
||||||||||||||
| 1) | Profile connector not required |
| 2) | Use of a profile piece (Lmin = 120 mm) |
| 3) | Assembly module required |
| 4) | For sizes 160-320: shorten the support rail on the dotted line |
| 5) | Use of the AL-STS adapter |

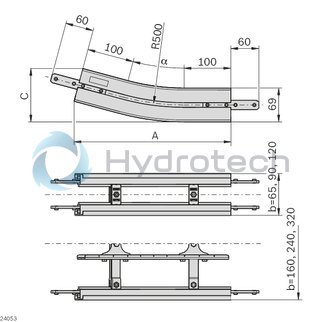

Vertical curve AL
|
b |
α |
A |
C |
R |
|
mm |
° |
mm |
mm |
mm |
| 65 | 5 | 246.2 | 79.5 | 500 |
| 7.5 | 268.9 | 86 | 500 | |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 45 | 548.7 | 276.1 | 500 | |
| 90 | 5 | 246.2 | 79.5 | 500 |
| 7.5 | 268.9 | 86 | 500 | |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 45 | 548.7 | 276.1 | 500 | |
| 120 | 5 | 246.2 | 79.5 | 500 |
| 7.5 | 268.9 | 86 | 500 | |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 45 | 548.7 | 276.1 | 500 | |
| 160 | 5 | 246.2 | 79.5 | 500 |
| 7.5 | 268.9 | 86 | 500 | |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 45 | 548.7 | 276.1 | 500 | |
| 240 | 5 | 246.2 | 79.5 | 500 |
| 7.5 | 268.9 | 86 | 500 | |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 | |
| 320 | 5 | 246.2 | 79.5 | 500 |
| 7.5 | 268.9 | 86 | 500 | |
| 15 | 334.9 | 110.7 | 500 | |
| 30 | 453.9 | 181.4 | 500 |
Vertical curve AL 5°
Vertical curve AL 15°
Vertical curve AL 15°
Vertical curve AL 30°
Vertical curve AL 45°
Slide rail
Slide rail
Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral boltingCAD data
