BOSCH REXROTH
3842547072

$504.07 USD

BOSCH REXROTH
Material:3842547072
Model:CURVE 65+ HOR AL 30

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 65+ HOR AL 30? R700 (3842547072) is a sliding curve designed for horizontal directional changes within conveyor systems. This component is particularly useful when space constraints prevent the use of a curve wheel, or when the speeds and dimensions of products do not allow for transport over a curve wheel. The sliding curve ensures efficient handling of materials by providing a smooth transition that can accommodate all suitable chain types. Its design is aimed at reducing noise levels, especially at high speeds, and it's effective in applications involving long products on wedge conveyors. The product features a deflection angle that facilitates direction change without compromising the integrity of the chain's movement. It comes fully assembled with all necessary fastening materials for easy mounting to AL section profiles. Manufactured from high-quality materials, including anodized aluminum for the profile and galvanized steel for the connectors, this sliding curve offers durability and resistance to wear. Additionally, this model has been designed to extend the capabilities of existing conveyor systems by transforming standard curve wheels into curve wheel drives or alpine conveyors. The low-friction technology employed in its construction not only extends its service life but also minimizes downtimes. It requires Advanced or Premium slide rails for operation and can be customized through Bosch Rexroth's modification department to meet specific requirements. The CURVE 65+ HOR AL 30? R700 is an essential component for any conveyor system requiring flexible yet robust directional change solutions.

Sliding curve horizontal AL VFplus 65 30°

Unpacked Weight: 1.65 kg

The sliding curve is used for the horizontal change in direction of the chain, if the installation space for a curve wheel is not sufficient or the speeds or product dimensions do not permit transport via the curve wheel. The sliding curve is used to reduce noise at high speeds or when transporting long products in wedge conveyors. The chain tensile force is increased through the ensuing friction.

Size: 65, 90, 120 Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails

The sliding curve provides a horizontal change in direction for the chain, for when there is not enough space for a curve wheel or the speeds or product dimensions do not permit conveying over a curve wheel

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	30
Productgroup ID	2
Effective sliding rail length	4x 0,56
Actual chain length	2x 0,56
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	1.65
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	65
Dimension [A]	204.4
Material information	Profile: Aluminum, anodized,Profile connector: Steel, galvanized,Cross connector: Diecast aluminum

	Material
Sliding curve horizontal AL VFplus 65 30°	Profile: Aluminum, anodized Profile connector: Steel, galvanized Cross connector: Aluminum, die-cast
Sliding curve horizontal AL VFplus 65 45°
Sliding curve horizontal AL VFplus 65 90°
Sliding curve horizontal AL VFplus 90 45° R500
Sliding curve horizontal AL VFplus 90 90° R500
Sliding curve horizontal AL VFplus 90 30° R700
Sliding curve horizontal AL VFplus 90 45° R700
Sliding curve horizontal AL VFplus 90 90° R700
Sliding curve horizontal AL VFplus 120 30°
Sliding curve horizontal AL VFplus 120 45°
Sliding curve horizontal AL VFplus 120 90°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

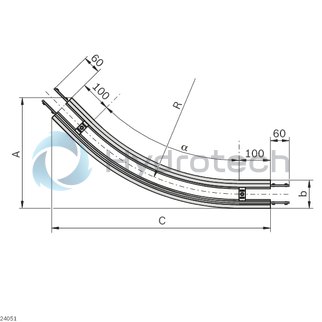

Sliding curve horizontal AL

b	α	A	C	R
mm	°	mm	mm	mm
65	30	204.4	552.9	700
	45	331.2	688.7	700
	90	832.5	832.5	700
90	45	294	556.1	500
	90	645	645	500
	30	277.8	559.1	700
	45	352.6	697.5	700
	90	845	845	700
120	30	255.7	566.6	700
	45	378.2	708.1	700
	90	860	860	700
