BOSCH REXROTH
3842547067

$1,837.98 USD

BOSCH REXROTH
Material:3842547067
Model:CURVE 240+ HOR AL 180

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 240+ HOR AL 180? R500 (3842547067) is a state-of-the-art roller curve designed to facilitate the horizontal directional change of conveyor chains with an effective deflection angle. This component is part of the Roller curve horizontal AL VFplus product group and features patented roller elements that are engineered for low-friction and quiet operation, enhancing the efficiency of conveyor systems. The ball bearings in the rollers are made from non-rusting steel and include seals on both sides, filled with FDA-compliant grease, ensuring durability and compliance with food industry regulations. The CURVE 240+ HOR AL 180? R500's contact surfaces are constructed from FDA-compliant materials, which is critical for applications requiring strict hygiene standards. With an actual chain length that varies based on specific requirements, this roller curve can be integrated into longer conveyor sections, promoting an extended service life for the chain and reducing overall system costs due to its low-friction technology. The aluminum profile of this Bosch Rexroth roller curve is anodized for added resilience, while the roller carrier is made from PA (polyamide), ensuring robust performance. The connectors are constructed from galvanized steel, offering additional strength and corrosion resistance. The rollers themselves are also crafted from PA, contributing to the unit's smooth operation. This fully assembled unit includes all necessary fastening materials for mounting to the AL section profile and offers additional versions upon request through Bosch Rexroth's modification department. It is designed to accommodate all suitable chain types and can be extended or modified to serve as a drive for a curved wheel or alpine conveyor system. This flexibility makes it a versatile component in various conveyor configurations where reduced downtimes and enhanced service life are priorities.

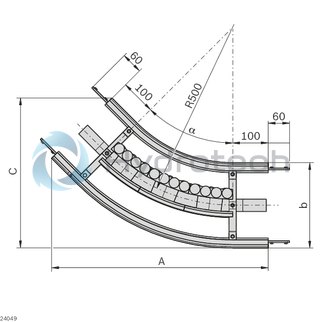

Roller curve horizontal AL VFplus 240 180°

Unpacked Weight: 9.402 kg

The low-friction roller curve is used for the horizontal change in direction of the chain. Roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Other deflection angles on request Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	5x 1,77
Actual chain length	2x 1,77
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	9.402
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	240
Dimension [A]	1240
Material information	Profile: Aluminum, anodized,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Rollers: PA

	Material
Roller curve horizontal AL VFplus 160 30°	Profile: Aluminum, anodized Roller carrier: PA 66 Ball bearings: stainless steel/FDA Connector: steel; galvanized Rollers: PA
Roller curve horizontal AL VFplus 160 45°
Roller curve horizontal AL VFplus 160 90°
Roller curve horizontal AL VFplus 160 180°
Roller curve horizontal AL VFplus 240 30°
Roller curve horizontal AL VFplus 240 45°
Roller curve horizontal AL VFplus 240 90°
Roller curve horizontal AL VFplus 240 180°
Roller curve horizontal AL VFplus 320 30°
Roller curve horizontal AL VFplus 320 45°
Roller curve horizontal AL VFplus 320 90°
Roller curve horizontal AL VFplus 320 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
