BOSCH REXROTH
3842546705

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

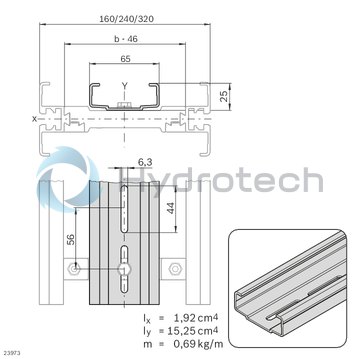

The Bosch Rexroth SUPPORT. STRUCTURE 160-320+ AL 12X6070 (3842546705) is a robust and versatile support profile designed for constructing conveyor sections and various other applications requiring a stable framework. This anodized aluminum support profile is part of the VFplus series, featuring a slot on the inside to facilitate the attachment of main components, such as drive/return units and curves. An external mm slot allows for easy attachment of lateral guides, supports, or components from Bosch Rexroth's modular aluminum framing system. The profile's design includes a centering groove that can be used as a drilling aid when it becomes necessary to attach the slide rail laterally. Additionally, it features cross connectors with mounting options for further structural integrity and customization. The support profile itself contains elongated holes at regular intervals to ensure quick and secure fastening of components. With an area moment of inertia in y-direction (ly), a mass (m), and an area moment of inertia in x-direction (lx), this product is engineered for durability and stability. Its natural color adds a clean, professional look to any assembly. This support structure is particularly suitable for larger installations, as from size 160 upwards, a support profile is required to maintain rigidity and strength across the entire construction. The uniform profile cross-section across all sizes ensures consistency in design and performance. Delivered in standard lengths as part of its packaging unit, this product comes ready for integration into various structural applications without additional preparation. Its open construction not only provides strength but also facilitates easy maintenance by allowing direct removal of dirt or foreign particles. In summary, the Bosch Rexroth SUPPORT. STRUCTURE 160-320+ AL 12X6070 (3842546705) is designed for ease of use in complex constructions while providing flexibility in design through its compatible slotting system and elongated holes for fastening—making it an essential component in creating efficient and reliable frameworks within various industrial applications.
